Summary of Contents for Axicon 6000-W

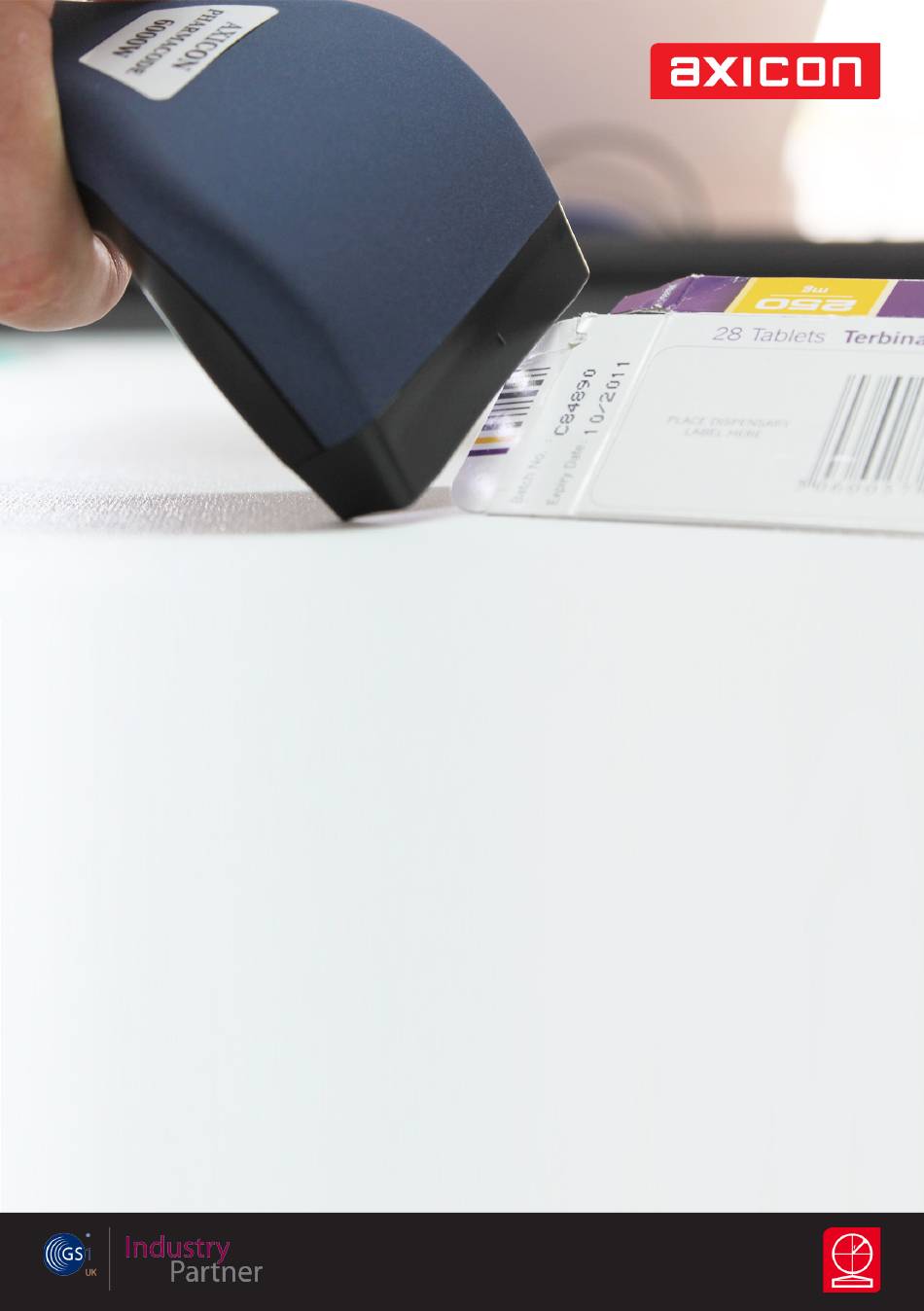

- Page 1 THE BARCODE EXPERTS Axicon 6000-W pharmacode verifier user guide Church Road, Weston on the Green, Oxfordshire, OX25 3QP, UK Tel: +44 (0)1869 351155 | Email: sales@axicon.com Web: www.axicon.com...
- Page 2 Axicon 6000-W Axicon Auto ID Limited | Pharmacode verifier user guide | Jan 2016 Page 2 of 20...
-
Page 3: Table Of Contents
Contents Important information Introduction Installation Calibration Using the 6000-W Product lookup Setup Saving and printing Software licence Warranty Service contract Factory re-calibration Contact us Axicon Auto ID Limited | Pharmacode verifier user guide | Jan 2016 Page 3 of 20... -
Page 4: Important Information
Please use the plastic transit case to protect the equipment when not in use. Only use cables and other accessories supplied by Axicon as the use of non-approved accessories will invalidate the warranty. If the verifier is dropped (or subjected to similar accidental damage) the accuracy of the results may be affected, so please return it to us for servicing. -
Page 5: Introduction
• Software CD. • Wallet containing this user guide and calibration sheet The Axicon 6000-W is designed to work with any PC running a version of Microsoft Windows currently supported by Microsoft. Axicon Auto ID Limited | Pharmacode verifier user guide | Jan 2016... -
Page 6: Installation
You will need to install the Axicon linear verifier software before the Laetus software. To install the Axicon linear software, insert the CD into your computer’s DVD drive. The program should run automatically, but if not, open the CD using Windows Explorer, double-click the Autorun Program, and click on “Install Axicon Verifier”. - Page 7 Laetus application file again, and the appropriate options will appear. Now plug in the Axicon 6000-W to your computer so that the USB driver can be installed. The software should detect the verifier and turn it on so that the white LEDs are all illuminated.
-
Page 8: Calibration
Please note that the Summary window will now show Error alongside Structure and highlight the box in red. This is not an error when the 6000-W is calibrated. With the Calibration window open scan the calibration barcode 10 times. Then click the OK button. -
Page 9: Using The 6000-W
µm (thousandths of a millimetre), and the entries are coloured green or red depending on whether they are in specification. An image of the symbol that has been read is also shown in the window. Axicon Auto ID Limited | Pharmacode verifier user guide | Jan 2016 Page 9 of 20... - Page 10 (below). The elements in red (darker for bars, paler for spaces) are out of tolerance, with the spaces here shown in pale red being too narrow. Axicon Auto ID Limited | Pharmacode verifier user guide | Jan 2016 Page 10 of 20...
- Page 11 The verifier does not give a grade to the barcode as there is no published standard for grading. Axicon Auto ID Limited | Pharmacode verifier user guide | Jan 2016 Page 11 of 20...
-
Page 12: Product Lookup
Once this has been done, then the next time this code is scanned the description from the lookup file will be shown on the command window. Axicon Auto ID Limited | Pharmacode verifier user guide | Jan 2016 Page 12 of 20... -
Page 13: Setup
The ‘Calibration’ tab allows you to change the file where all calibration records are kept. This must be the same file as that used by the Axicon Verifier software. The ‘Decode’ tab is only for use by Axicon, and all options are unavailable. -
Page 14: Saving And Printing
‘Save...’ from the dropdown menu. These records are created as .bcp files. When you want to print out a report, go to ‘File’ and then choose ‘Print…’ from the dropdown menu. The report will be headed ‘Axicon Binary Pharmaceutical Code Verification Report’ and includes information from both the command and dimensions windows. -
Page 15: Software Licence
14 days, you may return the entire unused product for a full refund. Axicon grants you a licence to use any number of copies of the software, but only for use with an Axicon verifier. “Use” means storing, loading, installing, executing or displaying the software. - Page 16 If the verifier or any part of it is defective in any way, or in some other way does not meet your expectations, the liability of Axicon Auto ID Limited is limited to the cost of the product. You should bear this limitation in mind if you use this verifier in any situations where the acceptance or rejection of shipments of goods or your reputation may depend upon the quality of a barcode.
-
Page 17: Warranty
This is a return to bench warranty with shipping costs in one direction being borne by the customer/distributor. Should you need to return the unit to Axicon the original case (plus appropriate packaging) must be used. If the equipment is returned without the original case, we will automatically charge an additional sum for its replacement. -
Page 18: Service Contract
It is also possible to hire a verifier from us while your verifier is being serviced or repaired. Axicon Auto ID Limited | Pharmacode verifier user guide | Jan 2016 Page 18 of 20... -
Page 19: Factory Re-Calibration
Return the verifier (including all cables) in its original case with the completed RMA form, purchase order and your payment details to our VCAS Bureau at Axicon Auto ID Ltd, Church Road, Weston on the Green, Oxfordshire OX25 3QP. We cannot take responsibility for units returned in alternative packaging. -
Page 20: Contact Us
+44 (0) 1869 351 155 Fax: +44 (0) 1869 351 205 Email: info@axicon.com Website: www.axicon.com As Axicon continually improves its products, their specifications and features are subject to change without notice. All trademarks are acknowledged as belonging to their respective companies. Your Axicon distributor...
