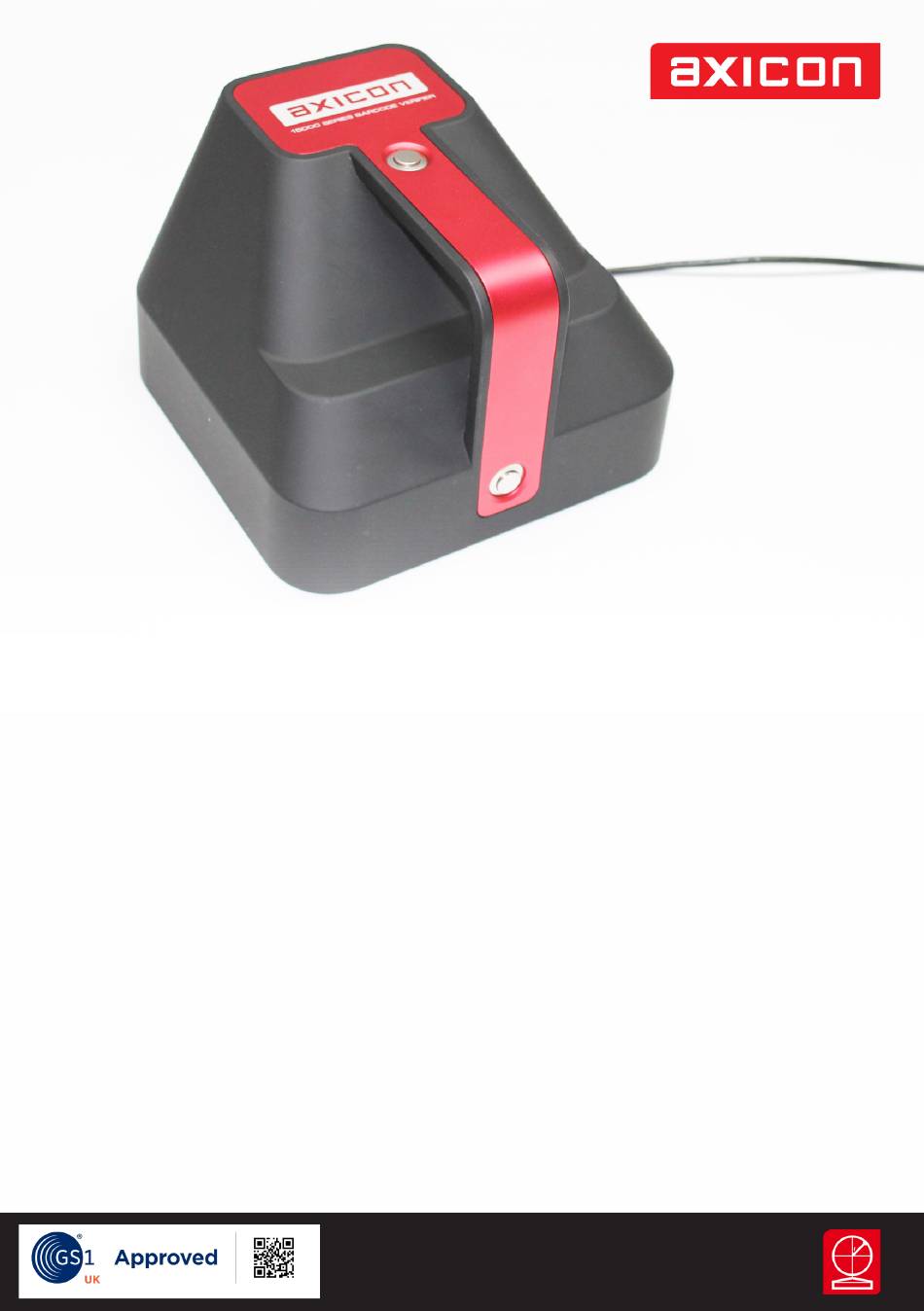

- Page 1 THE BARCODE EXPERTS Axicon 15000 series 2D & linear barcode verifier user guide Church Road, Weston on the Green, Oxfordshire, OX25 3QP, UK Tel: +44 (0)1869 351155 | Email: sales@axicon.com Web: www.axicon.com...
- Page 2 This user guide was made using: 5.0 version of the Axicon Camera Verifier Software for Windows. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 2 of 32...
-
Page 3: Table Of Contents
How the verifier works Calibration Getting started Operating the verifier Cropping Saving and using scan files Saving and printing reports Settings Annual service Warranty Disclaimer Contact Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 3 of 32... -
Page 4: Introduction

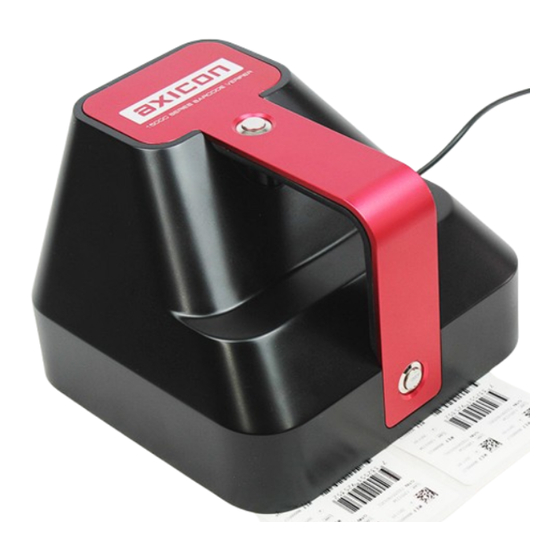

Introduction The Axicon 15000 series verifiers are designed to work with any PC running a currently supported version of Windows (Windows 10 & 11 – both 32 bit and 64 bit versions). Specification and application The 15200’s field of view is 60mm x 45mm, and is designed to verify linear and 2D barcodes, including those used on retail point of sale and healthcare items. - Page 5 Connect the USB lead from the verifier to a USB2 or USB3 port on the computer. Please install the software before connecting the 15000 series verifier. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 5 of 32...
-
Page 6: How The Verifier Works
More details about this process, saving scan files, and saving verification reports are explained later on in this user guide. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 6 of 32... -
Page 7: Calibration
If the card shows any sign of damage – for example, scratches or any change in colour – please obtain a new card from us. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 7 of 32... -
Page 8: Getting Started
(the verifier). The Help menu provides access to the Axicon website, a check for software updates, and information about the software. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 8 of 32... - Page 9 If there is a web address here you can also click to open it in your default web browser. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 9 of 32...
- Page 10 When a verifier is connected, the message will be ‘Selected reader: xxxxx’, where ‘xxxxx’ is the serial number of the verifier. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 10 of 32...
-
Page 11: Operating The Verifier
Any linear barcode will be verified using ten different scan lines, as specified by ISO/IEC 15416, and the verification grade will be based on the average of these ten readings. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 11 of 32... - Page 12 Blue is the neutral colour for all these displays. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 12 of 32...
-
Page 13: Cropping
The crop box will become the whole image, the image in the box will be decoded, and the verification results will appear on the right. The rest of the field of view will have been ignored. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 13 of 32... - Page 14 Right clicking within the image panel will remove the box, and left clicking will create a new crop box. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 14 of 32...
-
Page 15: Saving And Using Scan Files
The plugin details will be included in each verification report. The full verification results are then shown and reports can be viewed (and printed) as required. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 15 of 32... -
Page 16: Saving And Printing Reports
‘Append Report’ box. If this box is left unticked and the file name is not changed, the data will be overwritten. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 16 of 32... -
Page 17: Settings
Hover text will appear to help you understand these settings. The appearance tab also offers the option to resize the appearance of the toolbar and to show text. Plugins: Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 17 of 32... - Page 18 The plugins tab also offers the choice to change the default aperture for 2D barcodes and to prompt when no plugins recommend an aperture. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 18 of 32...
- Page 19 If Use Decode and Use Date and Time boxes are both ticked, the file name will automatically be created using the decoded number followed by the date and time. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 19 of 32...
- Page 20 The database will need to be exported and saved in a .csv format. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 20 of 32...
- Page 21 Trim leading zeros option to ignore any unnecessary leading zeros. The result of the lookup will be included in the barcode verification report. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 21 of 32...
- Page 22 Settings User Data: User Data allows you to program the Axicon 15000 series software to ask questions when a verification is being made, to collect the answers and to store these with the verification report. This supplementary user data will then always be displayed with the verification report.
- Page 23 There are also facilities to edit an existing User Data entry (ideal for adding items to a pull-down menu). You can also clear any existing User Data requirements and prompt the user data to always show. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 23 of 32...
- Page 24 This windows also allows the option to change days until calibration reminder and to allow or not to allow scanning when calibration has expired. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 24 of 32...
- Page 25 Restart the camera verifier software and the common configuration and user login options will now be enabled in the Advanced window of the Settings dialog. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 25 of 32...
- Page 26 ‘use common configuration’ option these settings will be assigned read-only permission for all users except for the supervisor who will have full control. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 26 of 32...
- Page 27 A copy of the audit log can be exported (as a .csv file) by clicking on the ‘Export to CSV’ button. Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 27 of 32...
- Page 28 These DPM symbols may only be readable under specialised lighting conditions.” Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 28 of 32...
- Page 29 Enable toolbar button: If this option is enabled, the DPM toolbar button will work to let you change between normal (ISO/IEC 15415) and DPM (ISO/IEC 29158). Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 29 of 32...
-
Page 30: Annual Service
Axicon Auto ID Limited | 15000 series verifier user guide | July 2023 Page 30 of 32... -
Page 31: Warranty
Warranty The Axicon 15000 series verifier is sold with a two year parts and labour warranty against manufacturing defects. This is a return to bench warranty with shipping costs in one direction being borne by the customer/distributor. Should you need to return the unit to Axicon the original case (plus appropriate packaging) must be used. -
Page 32: Contact
Email: info@axicon.com Website: www.axicon.com As Axicon continually improves its products, their specifications and features are subject to change without notice. All trademarks are acknowledged as belonging to their respective companies. EU authorised representative: Axicon BV, Spoorstraat 55M, 5831CJ Boxmeer, The Netherlands...
