Summary of Contents for Axicon 12000

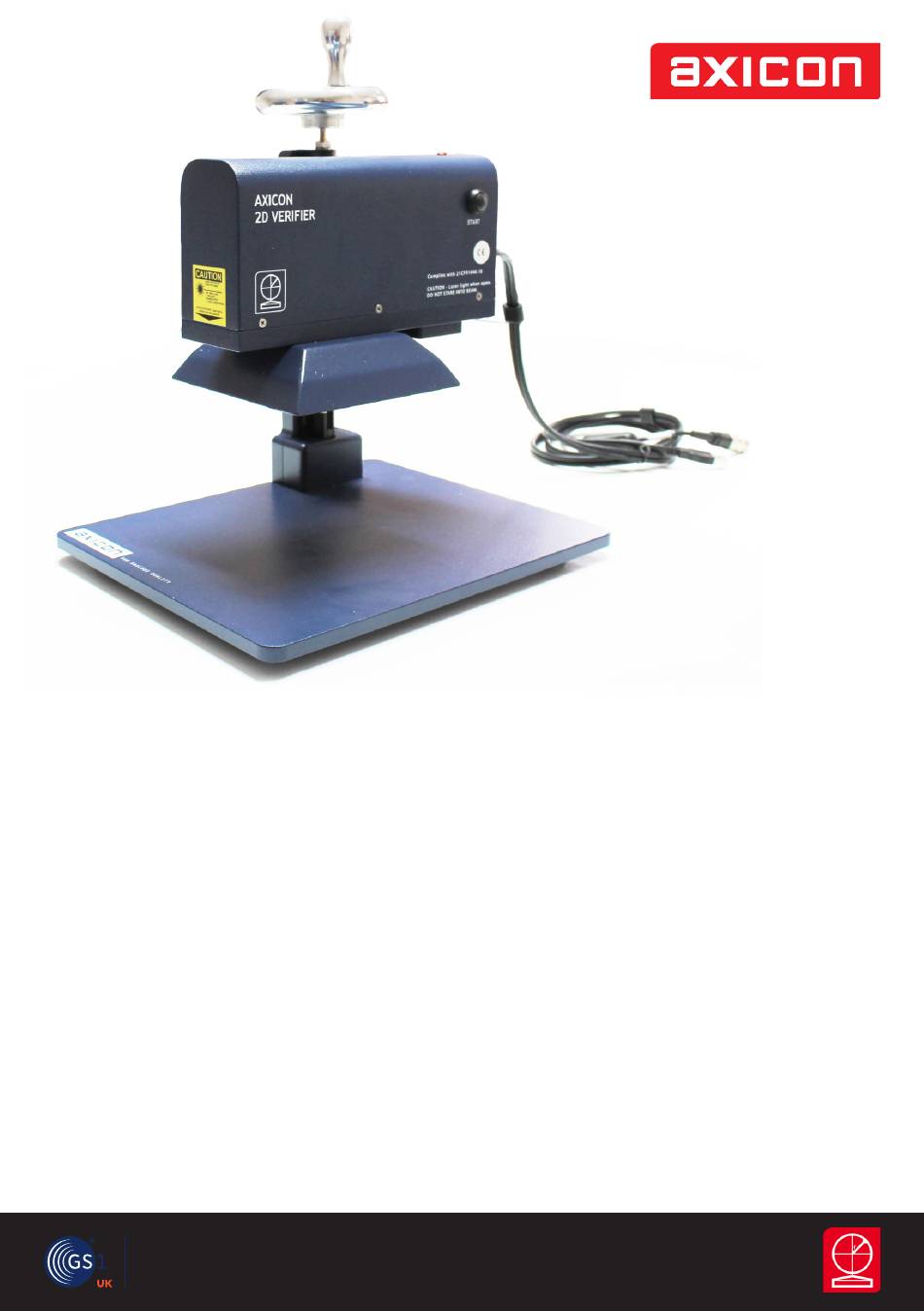

- Page 1 THE BARCODE EXPERTS Axicon 12600-12900 range 2D barcode verifiers user guide Church Road, Weston on the Green, Oxfordshire, OX25 3QP, UK Industry Tel: +44 (0)1869 351155 | Email: sales@axicon.com Partner Web: www.axicon.com...
- Page 2 Axicon Auto ID Limited | 12600 - 12900 user guide | June 2017 Page 2 of 24...
-
Page 3: Table Of Contents
Using the verifier Calibration Verification results Using the 12800 - 12900 Software licence agreement Annual servicing Axicon Warranty Certificate of conformance Contact us Axicon Auto ID Limited | 12600 - 12900 user guide | June 2017 Page 3 of 24... -
Page 4: Introduction
Axicon or to your approved Axicon reseller for this servicing. The following table shows the various models in the Axicon 12000 series which can be used in conjunction with this software – and their typical applications:... - Page 5 Mains lead. • Wallet containing this documentation booklet, software CD and the calibration card. Optional extras Axicon also offer the following optional extras to be used in conjunction with the system: • Installation qualification and operational qualification procedural documentation. •...
-
Page 6: Installation
USB drivers. After the software installation has been completed, please connect the verifier to install the USB drivers prior to running the software. Axicon Auto ID Limited | 12600 - 12900 user guide | June 2017 Page 6 of 24... - Page 7 Barcode Standard, so choose this if necessary. Most users choose the “Don’t print report after each scan” option. You can always change these later if you need to. Axicon Auto ID Limited | 12600 - 12900 user guide | June 2017 Page 7 of 24...
-
Page 8: Software (1D)
2D barcodes. The software can be configured to meet your requirements when verifying both types of barcode. Configuration of the 1D mode Double click on the 1D icon to display the configuration screen. Axicon Auto ID Limited | 12600 - 12900 user guide | June 2017 Page 8 of 24... - Page 9 MM_SS., for example 12345678_25_12_16 13_45_20. Having saved the verification reports automatically, you will be able to rename them manually using the normal Save as option. Axicon Auto ID Limited | 12600 - 12900 user guide | June 2017 Page 9 of 24...
-
Page 10: Software (2D)
Software (2D) Configuration of the 2D mode Double click on the 2D icon to display the configuration screen. Axicon Auto ID Limited | 12600 - 12900 user guide | June 2017 Page 10 of 24... - Page 11 GS1 users should ensure that ISO 15415 option is selected. The other options to the right of this are only usable with the Axicon 12800 and 12900 verifier which is designed to verify direct part marked symbols.
-
Page 12: Using The Verifier
After a few seconds the results will appear in the window, with the ISO grade appearing in the centre. Axicon Auto ID Limited | 12600 - 12900 user guide | June 2017 Page 12 of 24... -
Page 13: Calibration
The calibration will take about 5 seconds and then the successful window will appear. Press OK, and then close the window. Axicon Auto ID Limited | 12600 - 12900 user guide | June 2017 Page 13 of 24... -
Page 14: Verification Results
SRP will change as will the results shown to their right. You can also magnify the size of the barcode by using the icons on the far left of the screen. Axicon Auto ID Limited | 12600 - 12900 user guide | June 2017 Page 14 of 24... - Page 15 The Advanced Detail tab provides a diagram that shows the modulation values for each element. In this example, one module is missing, so its value is 0. Axicon Auto ID Limited | 12600 - 12900 user guide | June 2017 Page 15 of 24...
-
Page 16: Using The 12800 - 12900
45º, 30º, or 90º, and also whether the 30º illumination should be on all four sides or only two sides. The Axicon 12800 is designed to read symbols on the same plane as its base, while the Axicon 12900 has an adjustable height. This means that the Axicon 12900 can be used to read DPM symbols marked on more unusually shaped objects or where the marking is slightly recessed. - Page 17 If both the GS1 ISO/IEC 15415 and AIM-DPM approaches are selected, the verification report will include both sets of results. Axicon Auto ID Limited | 12600 - 12900 user guide | June 2017 Page 17 of 24...
- Page 18 The software for this verifier is identical to that for the Axicon 12800, except that it will check if the verifier is the correct distance away from the symbol to be verified after you have clicked on the Go Live button.
-
Page 19: Software Licence Agreement
Axicon Auto ID Limited | 12600 - 12900 user guide | June 2017 Page 19 of 24... -
Page 20: Annual Servicing
Return the verifier (including all cables) in its original case with the completed RMA form, purchase order and your payment details to us at Axicon Auto ID Ltd, Church Road, Weston on the Green, Oxfordshire OX25 3QP. We cannot take responsibility for units returned in alternative packaging. -
Page 21: Axicon Warranty
Axicon warranty The Axicon 12600, 12700 or 12800 are sold with a one year parts and labour warranty against manufacturing defects. This is a return to bench warranty with shipping costs in one direction being borne by the customer/distributor. - Page 22 Axicon Auto ID Limited | 12600 - 12900 user guide | June 2017 Page 22 of 24...
-
Page 23: Certificate Of Conformance
Authorised signatory Signatory Name At or before the expiry date the verifier should be returned to Axicon for its annual servicing. This VCAS (verifier conformance and alignment service) will ensure that the verifier remains conformant to ISO/IEC 15426-1 and ISO/IEC 15426-2 for another year. -
Page 24: Contact Us
+44 (0) 1869 351 155 Fax: +44 (0) 1869 351 205 Email: info@axicon.com Website: www.axicon.com As Axicon continually improves its products, their specifications and features are subject to change without notice. All trademarks are acknowledged as belonging to their respective companies. Your Axicon distributor...
