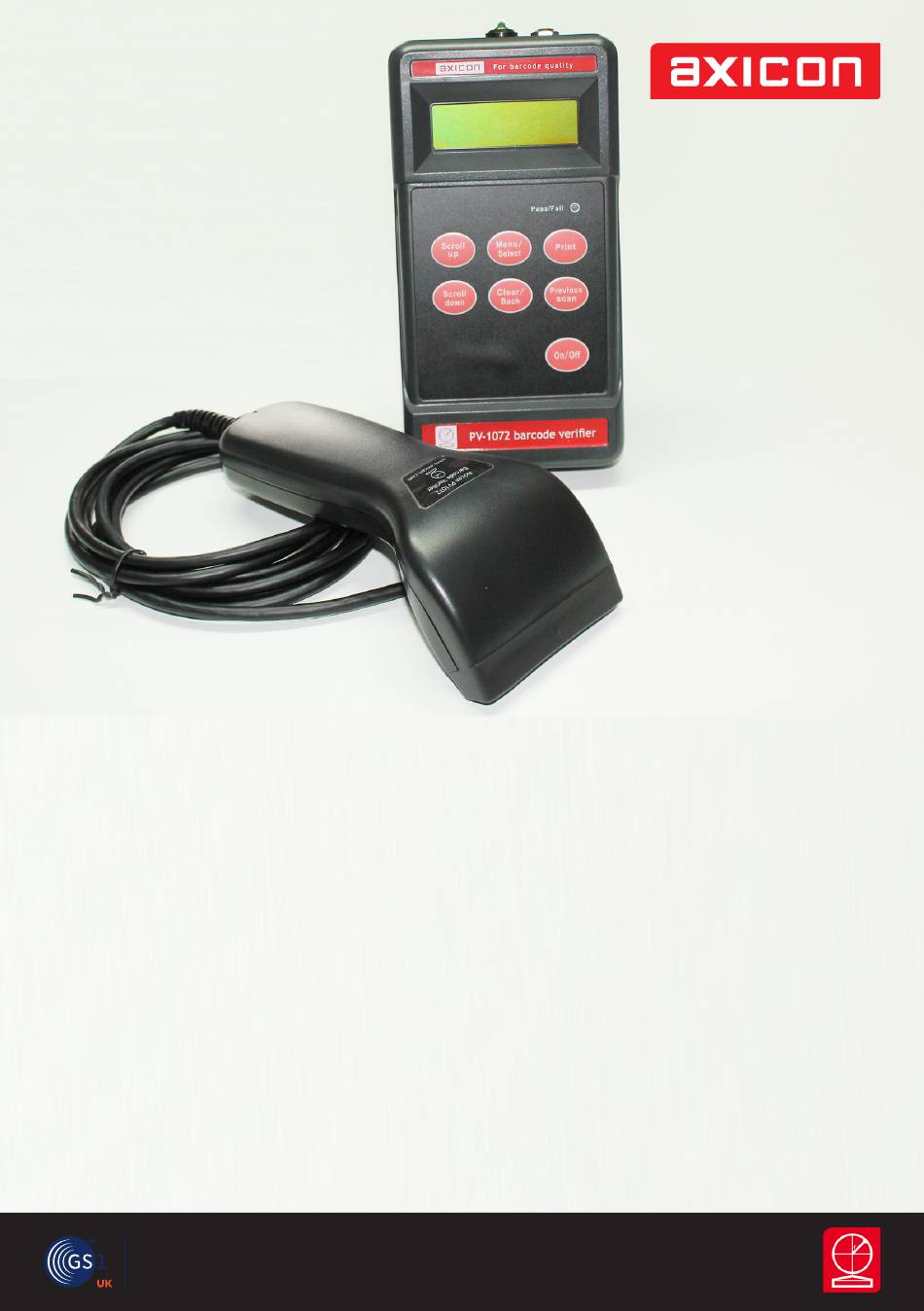

- Page 1 THE BARCODE EXPERTS Axicon PV-1072 portable barcode verifier operating manual Church Road, Weston on the Green, Oxfordshire, OX25 3QP, UK Industry Tel: +44 (0)1869 351155 | Email: sales@axicon.com Partner Web: www.axicon.com...
- Page 2 Axicon Auto ID Limited | PV-1072 operating manual | June 2017 Page 2 of 24...
-
Page 3: Table Of Contents
ISO/IEC or ANSI grades Menu screen formats Frequently asked questions Technical specifications Software licence agreement Axicon warranty Declaration of ISO/IEC Annual service Declaration of CE Contact us Axicon Auto ID Limited | PV-1072 operating manual | June 2017 Page 3 of 24... -
Page 4: Important Information
If the verifier read-head is dropped (or subjected to similar misuse) the accuracy of the results may be affected. The unit should be returned to Axicon immediately for servicing. Axicon recommends that for optimum accuracy all verifier read-heads should be returned every year to Axicon or an approved reseller to be factory recalibrated. -
Page 5: Introduction
Belt-bag to enable the unit to be carried easily around a factory or warehouse (Not supplied as standard in the U.S.) A set of four AA-sized alkaline batteries (supplied in Europe only). Axicon Auto ID Limited | PV-1072 operating manual | June 2017 Page 5 of 24... -
Page 6: Getting Started
Axicon Verifier Ready to Scan ! If the PV-1072 is left for some time the screen will go blank to conserve battery power, but can quickly be restarted by pressing the on/off button again. The time- out period before this happens can be adjusted to suit the requirements of the user –... -
Page 7: Calibration
Calibration The calibration card is supplied with the PV-1072 and is kept in the wallet. With the Ready to Scan message showing on the screen, Press the Menu/select key. And the screen will show ► Information Press the button until the screen displays Scroll down ►... -
Page 8: Using The Pv-1072
Multi-scan averaging The PV-1072 allows the user to take up to 10 scans of a barcode at different points throughout the height of the barcode which will be averaged automatically to grade the barcode. - Page 9 Print / Save Facilities Verification reports can be printed by the PV-1072, or saved to memory for subsequent printing. Automatic saving facilities are also included as an option, and the files are saved as a text-file. Direct Printing Attach a suitable printer to the printer port on the verifier using the optional Axicon printer lead.
- Page 10 Clear/Back twice to move back to the main screen. To print saved scans Unplug the verifier read-head from the PV-1072, and plug in a USB memory device. From the main screen press the Menu/Select button and you will see the message ►...
-
Page 11: Configuration Set-Up
Configuration set-up Setting date and time The PV-1072 has its own clock, so the user scan set the date and time which will be recorded with each record. To set the date and time, press the Menu/Select button to see the message ►... - Page 12 Configuration set-up Power Management The PV-1072 has facilities for the user to control the elapsed time before Sleep are enabled. Mode Power Off To set the Sleep Mode On the main screen press the Menu/Select button to see the message ►...
-
Page 13: Iso/Iec Or Ansi Grades
ISO/IEC or ANSI grades By default the PV-1072 will display the final barcode quality grade in the ISO/IEC format such as 2.0/06/660 where the 2.0 is the print quality grade, 06 the aperture reference number and 660 is the wavelength of light used expressed in µm. -
Page 14: Menu Screen Formats
Set Rmax Calibrate Setup Average No Pass grade Units Language Autosave Show ANSI Time Time zone Time Date Power Sleep Power off Printer Trailing LF Axicon Auto ID Limited | PV-1072 operating manual | June 2017 Page 14 of 24... -
Page 15: Frequently Asked Questions
Whether using alkaline or rechargeable batteries, make sure they have a rating of at least 2500 mAh (one that is suitable for powering a motor or similar device). How many scans can I store in my PV-1072 before I have to transfer them to a computer? If three-scan verifications are made, approximately 1000 text files can be saved before they need to be transferred. - Page 16 Press to confirm the language Menu/Select Press twice to return to the Message. Clear/Back Ready to scan Axicon Auto ID Limited | PV-1072 operating manual | June 2017 Page 16 of 24...
-
Page 17: Technical Specifications
© Copyright information The Axicon software embedded in the PV-1072 together with any accompanying Axicon software is the copyright of Axicon Auto ID Ltd and is subject to the software licence described below. This manual is copyright to Axicon Auto ID Ltd and may not be reproduced in whole or in part, nor may it be stored in any electronic storage or retrieval system without the express permission in writing from a director of Axicon Auto ID Ltd. -
Page 18: Software Licence Agreement
Software licence agreement This software is Copyright © 2008-2016 Axicon Auto ID Limited. Use of the software in the PV-1072 is subject to the Axicon software licence terms set forth below. Using the software indicates your acceptance of these licence terms. - Page 19 Axicon Auto ID Limited is limited to the cost of the product. You should bear this limitation in mind if you use this equipment in any situations where the acceptance or rejection of shipments of goods or your reputation may depend upon the quality of a barcode.
-
Page 20: Axicon Warranty
Axicon warranty The Axicon PV-1072 is sold with a one year parts and labour warranty against manufacturing defects. This is a Return to Bench warranty with shipping costs in one direction being borne by the customer/distributor. Should you need to return the unit to Axicon the original case (plus appropriate packaging) must be used. -
Page 21: Declaration Of Iso/Iec
Authorised signatory Signatory Name At or before the expiry date the verifier should be returned to Axicon for its annual servicing. This VCAS (verifier conformance and alignment service) will ensure that the verifier remains conformant to ISO/IEC 15426-1 for another year. -
Page 22: Annual Service
Return the verifier (including all cables) in its original case with the completed RMA form, purchase order and your payment details to us at Axicon Auto ID Ltd, Church Road, Weston on the Green, Oxfordshire OX25 3QP. We cannot take responsibility for units returned in alternative packaging. -
Page 23: Declaration Of Ce
This equipment meets the requirements of the directives 2004/108/EC (Electromagnetic Compatibility), 2006/95/EC (Low Voltage), based on our own relevant test reports. Martin Morrison Managing Director Axicon Auto ID Limited | PV-1072 operating manual | June 2017 Page 23 of 24... -
Page 24: Contact Us
+44 (0) 1869 351 155 Fax: +44 (0) 1869 351 205 Email: info@axicon.com Website: www.axicon.com As Axicon continually improves its products, their specifications and features are subject to change without notice. All trademarks are acknowledged as belonging to their respective companies. Your Axicon distributor...
