- Page 1 THE BARCODE EXPERTS Axicon 15000 series 2D-linear barcode verifier user guide Church Road, Weston on the Green, Oxfordshire, OX25 3QP, UK Industry Tel: +44 (0)1869 351155 | Email: sales@axicon.com Partner Web: www.axicon.com...
- Page 2 Axicon Auto ID Limited | 15000 series verifier user guide | June 2017 Page 2 of 28...
-
Page 3: Table Of Contents
Several barcodes in field of view Saving and printing Disclaimer Software licence agreement Warranty Service contract Annual service Certificate of conformance Contact us Axicon Auto ID Limited | 15000 series verifier user guide | June 2017 Page 3 of 28... -
Page 4: Introduction

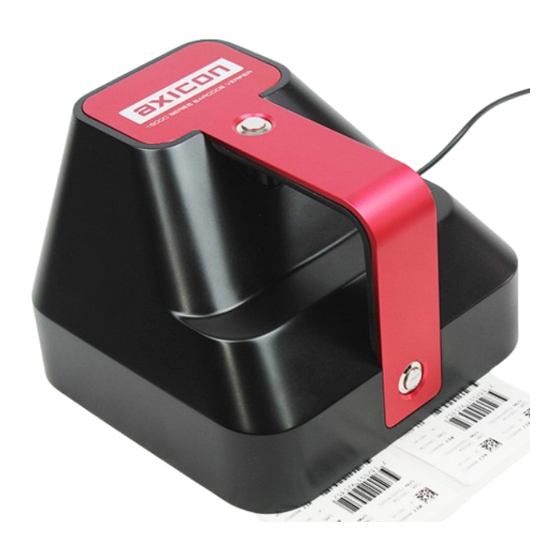

Introduction The Axicon 15000 series is designed to work with any PC running a currently supported version of Windows (Windows 7, Windows 8, Windows 10 – both 32 bit and 64 bit versions). Specification and application This verifier can be used to verify barcodes with a size of up to 51mm x 31mm for 15000 or 95 x 70mm for 15500. - Page 5 Connect the USB lead from the verifier to a USB2 port on the computer. Please install the software before connecting the 15000 series verifier. Axicon Auto ID Limited | 15000 series verifier user guide | June 2017 Page 5 of 28...
-
Page 6: How The Verifier Works
More details about this process, saving image files, and saving verification reports are explained later on in this user guide. Axicon Auto ID Limited | 15000 series verifier user guide | June 2017 Page 6 of 28... -
Page 7: Getting Started
The file menu and the icons The top left of the Axicon Camera Verifier window includes the menu bar with five options, and the toolbar which includes seven command icons. The File dropdown menu includes options for saving, load scan (open), appending and printing verification reports. - Page 8 Find and decode the barcodes seen in the field of view. Edit the settings for the application, or use F5 Display and edit user-defined data for this scan. Axicon Auto ID Limited | 15000 series verifier user guide | June 2017 Page 8 of 28...
- Page 9 Plugins are briefly explained later on. The status bar is at the very bottom of the window, and provides details of what the verifier is doing. Axicon Auto ID Limited | 15000 series verifier user guide | June 2017 Page 9 of 28...
-
Page 10: Calibration
The verifier software will then check the image before calibrating the instrument and then rechecking. When this has been done a message Calibration Successful will be shown and the verifier is ready for use. Axicon Auto ID Limited | 15000 series verifier user guide | June 2017 Page 10 of 28... -
Page 11: Operating The Verifier
When only one symbol is present the box will be blue, and if it is an EAN/UPC barcode a purple box will appear around the numbers shown below it. Axicon Auto ID Limited | 15000 series verifier user guide | June 2017 Page 11 of 28... - Page 12 Scan Info rows available. The reflectance profile will now show at the bottom of the scan info results. Click on the reflectance profile to enlarge it. Axicon Auto ID Limited | 15000 series verifier user guide | June 2017 Page 12 of 28...
-
Page 13: Settings
Warning and Pass, choose the language and switch between metric or imperial units of measurement. Plugins: The Plugins tab can be used to select data content checking to any of the various standards shown. Axicon Auto ID Limited | 15000 series verifier user guide | June 2017 Page 13 of 28... - Page 14 This will ensure that records cannot be inserted, deleted or modified without it being apparent (essential for compliance with 21 CFR Part 11 requirements). Axicon Auto ID Limited | 15000 series verifier user guide | June 2017 Page 14 of 28...
- Page 15 If Auto Save as box is ticked in addition to Use Decode or Use Date & Time (or both), then the dialogue box will appear with the pre-selected data and allow the operator to override this if required. Axicon Auto ID Limited | 15000 series verifier user guide | June 2017 Page 15 of 28...
- Page 16 Settings User data: User Data allows you to program the Axicon 15000 series software to ask questions when a verification is being made, to collect the answers and to store these with the verification report. This supplementary user date will then always be displayed with the verification report.
- Page 17 There are also facilities to edit an existing User Data entry (ideal for adding items to a pull-down menu). You can also clear an existing User Data population. Axicon Auto ID Limited | 15000 series verifier user guide | June 2017 Page 17 of 28...
-
Page 18: 2D Matrix Codes
If required the Data Content box can be stretched vertically to show more information – just hover over the top edge of the box until the double horizontal lines appear and then stretch the box. Axicon Auto ID Limited | 15000 series verifier user guide | June 2017 Page 18 of 28... -
Page 19: Several Barcodes In Field Of View
Each symbol that is recognised as a barcode will be surrounded by a purple or blue box. The blue box indicates which symbol’s results are being shown on the right hand side of the Axicon Camera Verifier window. To change to the other barcode, click on the purple box, which will now become blue. -
Page 20: Saving And Printing
The user should then press the Verify button. The full verification information is then shown and can be viewed (and additionally printed) as required. Axicon Auto ID Limited | 15000 series verifier user guide | June 2017 Page 20 of 28... -
Page 21: Disclaimer
Verifier is suitable for your needs. Neither Axicon Auto ID Limited nor the vendor of this Verifier can accept any liability for any loss or damage (consequential or otherwise) which may be caused by use of this Verifier. -
Page 22: Software Licence Agreement
14 days, you may return the entire unused product for a full refund. Axicon grants you a licence to use any number of copies of the software, but only for use with an Axicon verifier. “Use” means storing, loading, installing, executing or displaying the software. - Page 23 If the verifier or any part of it is defective in any way, or in some other way does not meet your expectations, the liability of Axicon Auto ID Limited is limited to the cost of the product. You should bear this limitation in mind if you use this verifier in any situations where the acceptance or rejection of shipments of goods or your reputation may depend upon the quality of a barcode.
-
Page 24: Warranty
Warranty Axicon 15000 series verifier is sold with a two year parts and labour warranty against manufacturing defects. This is a return to bench warranty with shipping costs in one direction being borne by the customer/distributor. Should you need to return the unit to Axicon the original case (plus appropriate packaging) must be used. -
Page 25: Service Contract
Axicon Auto ID Limited | 15000 series verifier user guide | June 2017 Page 25 of 28... -
Page 26: Annual Service
Return the verifier (including all cables) in its original case with the completed RMA form, purchase order and your payment details to us at Axicon Auto ID Ltd, Church Road, Weston on the Green, Oxfordshire OX25 3QP. We cannot take responsibility for units returned in alternative packaging. -
Page 27: Certificate Of Conformance
Authorised signatory Signatory Name At or before the expiry date the verifier should be returned to Axicon for its annual servicing. This VCAS (verifier conformance and alignment service) will ensure that the verifier remains conformant to ISO/IEC 15426-1 and ISO/IEC 15426-2 for another year. -
Page 28: Contact Us
+44 (0) 1869 351 155 Fax: +44 (0) 1869 351 205 Email: info@axicon.com Website: www.axicon.com As Axicon continually improves its products, their specifications and features are subject to change without notice. All trademarks are acknowledged as belonging to their respective companies. Your Axicon distributor...
