SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
A. Door Preparation:
1. Measure desired height from finished floor and mark a horizontal line on door face and door edge.
2. Place template on edge of door as shown and align lever centerline with marked height line on door. Check the
chart for drilling trim holes on template and only mark holes for lock function being installed.
C L
of Door Edge
P:\INST INSTRUCTIONS\ELECTRIFIED LOCKSETS\INST-Z7700
INSTALLATION INSTRUCTIONS

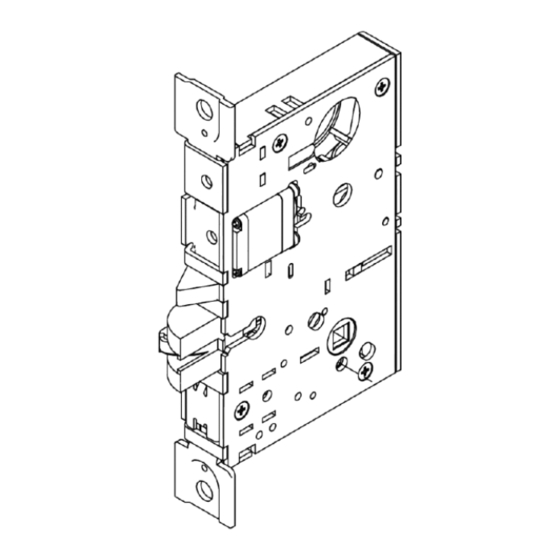

Z7750 & Z7752 SERIES
MOTORIZED LATCH RETRACTION & SOLENOID
CONTROLLED MORTISE LOCK
Door Edge
Height line
Installation Template
of Cylinder
C L
C L
of Lockcase
C L
of Lever
(rose trim mounting
holes shown)
Vertical Centerline
REV F
Door Face
C L of Lever
*
NOTCH OPENING FOR MOTOR
ON WOOD DOORS ONLY
2-1/4"
1-1/2"
(1-3/4" Deep)
3/8"
04-24
Page 1
1-1/4"
(1-3/4" Deep)
3/8"
2X 12-24 WMS
5-5/8"
*
WOOD DOOR
2X
1" Holes
4-3/4" Deep
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SDC Z7750 Series
Summary of Contents for SDC Z7750 Series
- Page 1 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 INSTALLATION INSTRUCTIONS Z7750 & Z7752 SERIES MOTORIZED LATCH RETRACTION & SOLENOID CONTROLLED MORTISE LOCK A.
- Page 2 8-1/32" 8-1/32" Mounting Holes Wire Raceway suggested for wood doors. Optional: SDC Door Core Drill Guide Kit P/N: 7000-DGK Jamb B. Strike & Dust Box Installation: 1. Align strike template on jamb. Be sure to keep 3/8" distance between lock centerline and strike centerline.
- Page 3 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 INSIDE OF DOOR Right Hand Left Hand C. Install Lockcase 1. Verify Handing Make sure the lock hand matches the door hand, use the following diagram to determine the hand of door.
- Page 4 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 C. Install Lockcase (Continued) 2. Verify Rex Handing (REX option only) RH /RHR LH / LHR Remove the existing screw from this location Relocate and fasten screw to...
- Page 5 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 C. Install Lockcase (Continued) 3. Connect wires as shown on the lock cover diagram (or refer to page 7 of instructions). 4.
- Page 6 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 D. Install for 07 Lever Trim 1. Install the Outside Lever Assembly first. 2. Insert Spindle into the outside side of mortise lockset. 3.
- Page 7 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 D. Install for Escutcheon Lever Trim 1. Install the Outside Lever first. 2. Place Spindle Spring over outside Spindle, then insert Spindle into the outside sides of lockset. 3.
- Page 8 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 E. Lock Wiring External Control Board (PCB135A01-A) SDC P/N 631RF is recommended. LEVER LATCH 24VDC Regulated &...
