SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
Electrical Instructions:
Use properly fused U. L. Listed Power Supply
Do not install a diode in parallel with any magnetic lock. A diode will cause a delay when releasing the door and
residual magnetism to occur.
Although SDC recommends the use of a DC power supply, a transformer with an adjacent mounted full wave bridge
rectifier may be used. A significant drop will occur when using a full wave bridge rectifier.
Any low voltage condition will cause erratic operation of the optional board sensor.
When using a full wave bridge rectifier all access controls and/or release contacts must be located between the EMlock
and rectifier to ensure quick release.
Supplied Mounting Hardware
Outswing
P:\INST INSTRUCTIONS\EMLOCKS\INST-E1200

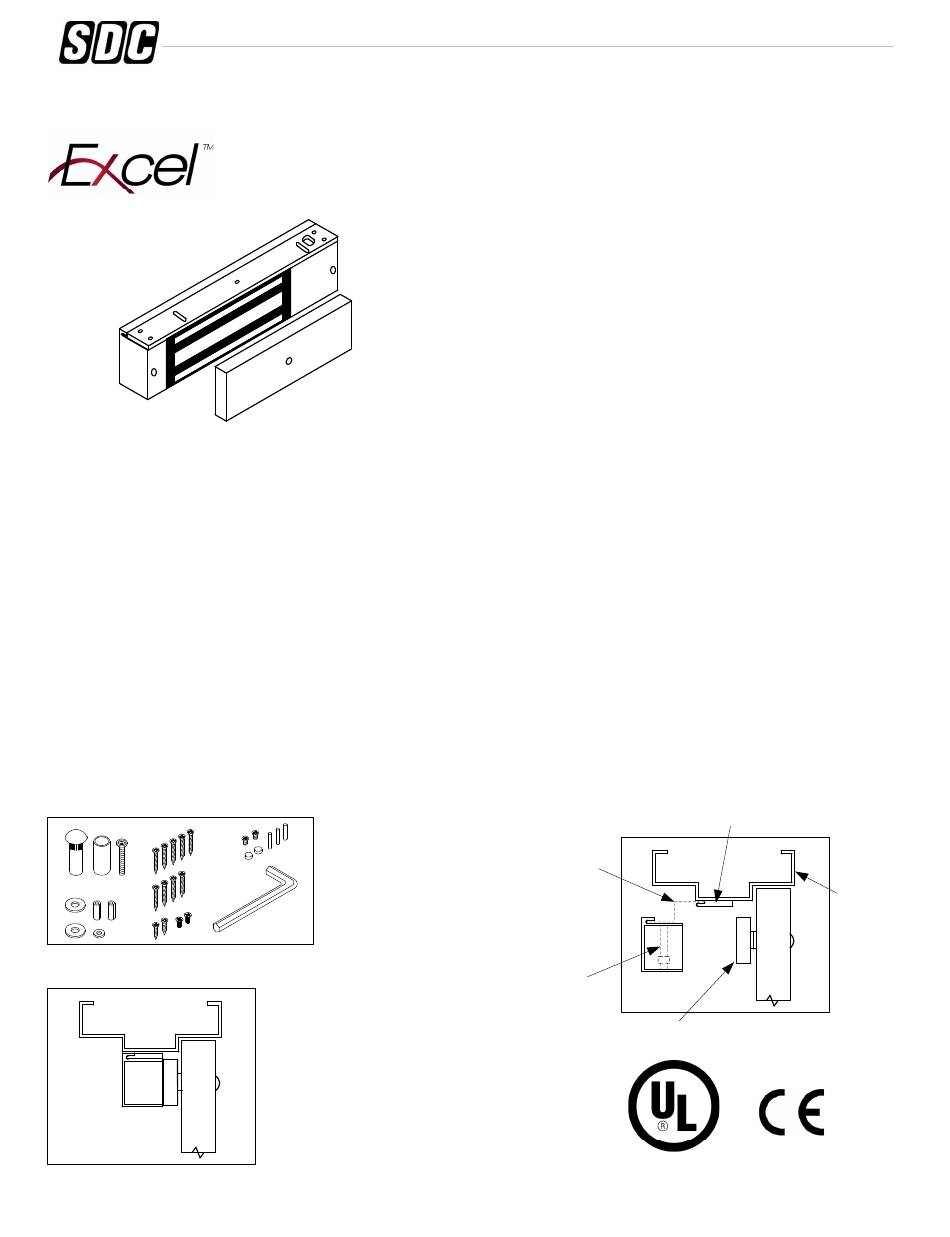

INSTALLATION INSTRUCTIONS
MAGNETIC LOCK
REV A.5
12-24
Page 1
E1200
Electrical Specifications:
Dual Voltage:
Power Consumption:
DS Door Status Sensor:
LS Lock Status Sensor:
Quick Mount
Interlocking
Mounting Assembly
Mounting Screws
Armature
12 or 24VDC
.505mA @ 12VDC
.260mA @ 24VDC
SPDT, 500mA @ 30VDC
SPDT, 2A @ 30VDC
Interlocking
Mounting Plate
Frame
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
