SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011

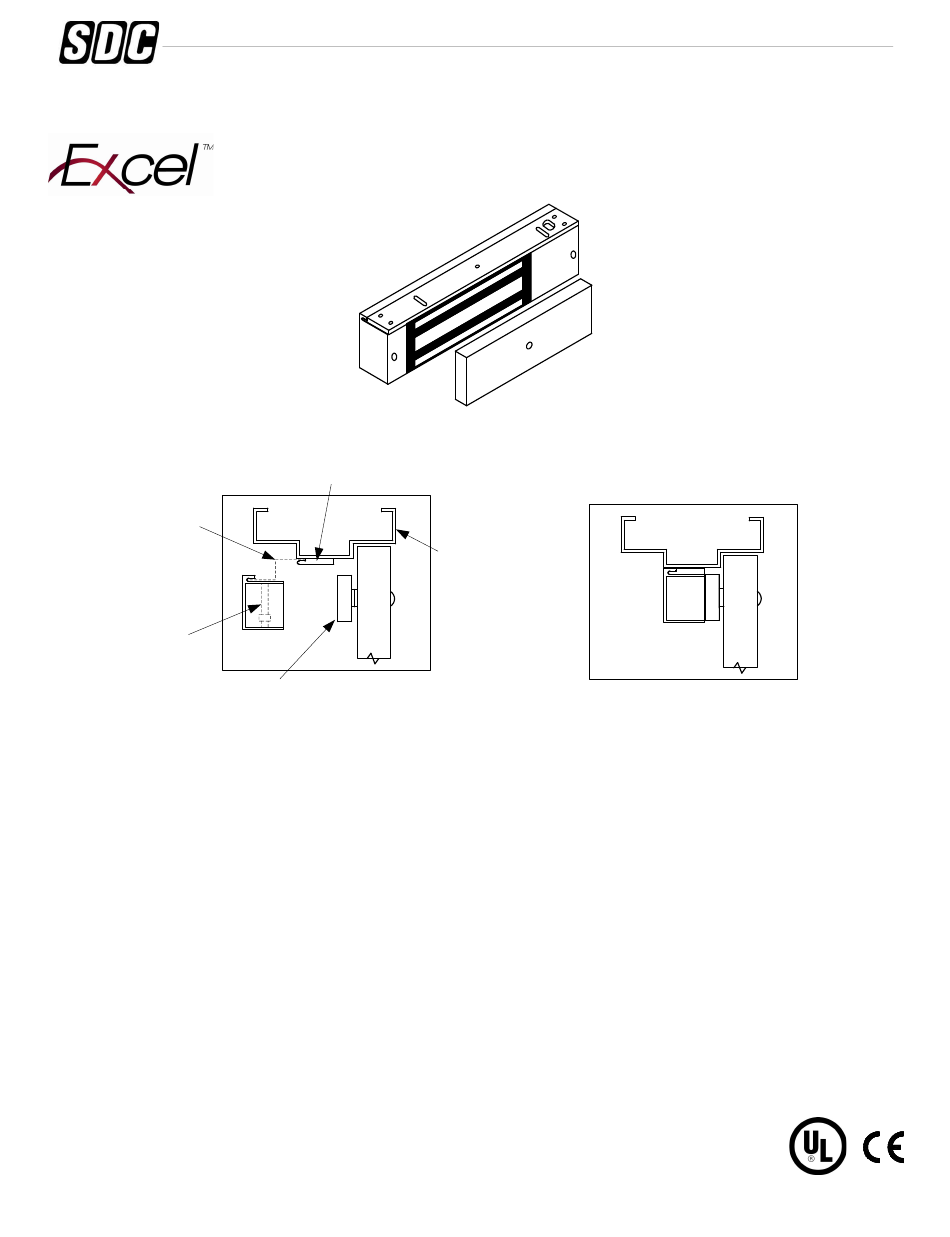

Quick Mount
Interlocking
Mounting Assembly
Mounting Screws
Armature
Electrical Instructions:
Use properly fused U. L. Listed Power Supply
Do not install a diode in parallel with any magnetic lock. A diode
will cause a delay when releasing the door and residual magnetism
to occur.
Although SDC recommends the use of a DC power supply, a
transformer with an adjacent mounted full wave bridge rectifier may
be used. A significant drop will occur when using a full wave
bridge rectifier.
Any low voltage condition will cause erratic operation of the
optional board sensor.
When using a full wave bridge rectifier all access controls and/or
release contacts must be located between the EMlock and rectifier
to ensure quick release.
P:\INST INSTRUCTIONS\EMLOCKS\INST-E1200
INST INSTRUCTIONSRUCTIONS

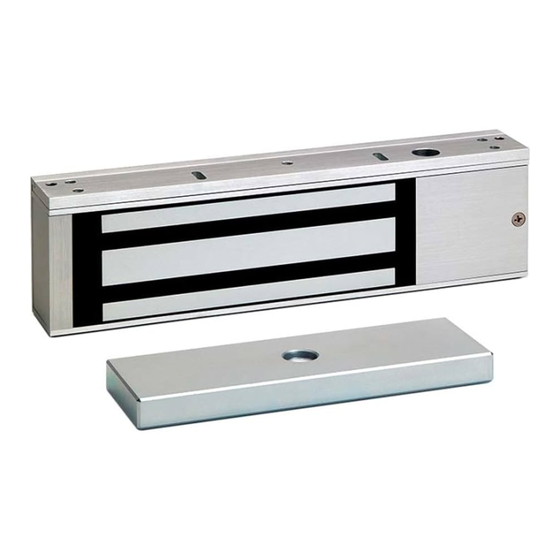

MAGNETIC LOCK
Interlocking
Mounting Plate
REV A.4
10-21
Page 1
E1200
Frame
Electrical Specifications:
Dual Voltage:
Power Consumption:
DS Door Status Sensor:
LS Lock Status Sensor:
Outswing
12 or 24VDC
.505mA @ 12VDC
.260mA @ 24VDC
SPDT, 500mA @ 30VDC
SPDT, 2A @ 30VDC
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SDC Excel E1200
Summary of Contents for SDC Excel E1200
- Page 1 .260mA @ 24VDC to occur. DS Door Status Sensor: SPDT, 500mA @ 30VDC Although SDC recommends the use of a DC power supply, a transformer with an adjacent mounted full wave bridge rectifier may LS Lock Status Sensor: SPDT, 2A @ 30VDC be used.
- Page 2 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 1. Inspect the frame header to determine if mounting accessories are required (refer to page 4). 2.
- Page 3 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 6. Holding the magnet housing at each end, engage the entire length of the interlock detail, by pushing towards the door.
- Page 4 SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM [t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011 MOUNTING ACCESSORIES: Supplied Mounting Hardware OPTIONAL MOUNTING HARDWARE: STOP FILLER PLATE ANGLE BRACKET FP15 E12L Lock: 10-1/2"...
