CHIEF PLP Series Installation Instructions

I N S T A L L A T I O N
Plasma Low Profile (PLP Series)
Wall Mount

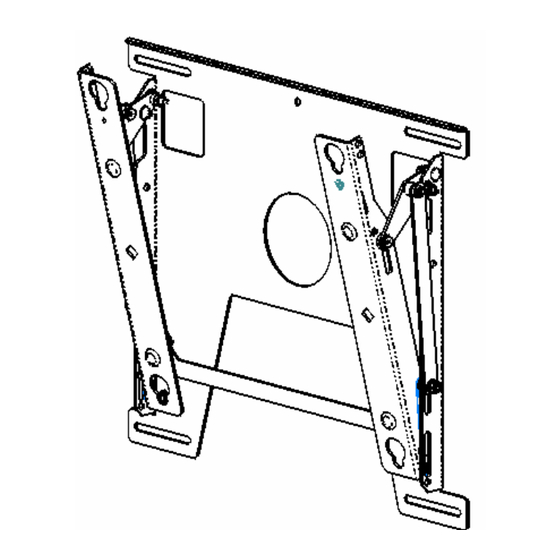

The PLP wall mount is a quick disconnect mounting system with a
pitch adjustment range between 0 and 15 degrees. The mount can be
adjusted to accomodate the weight of different plasma screens. The
mount is approximately 1-7/16" deep in the retracted position.
Once the brackets are attached to the plasma screen, simply mount the
PLP securely on a wall, lock the plasma screen in place using the con-
venient locking flag, and attach the audio/video cables. The bottom
of the PLP pulls forward 3" and locks in place, allowing easy access
for cable attachment.
The PLP is hidden behind the plasma screen, making it a low profile
wall mount.

BEFORE YOU BEGIN

• Caution: To prevent damage to the PLP, which could affect or void the Factory warranty, and to the equipment that
will be attached to it, thoroughly study all instructions and illustrations before you begin the installation. Pay particu-
lar attention to the "Important Warnings and Cautions" on Page 2.
• The maximum weight to be installed on the PLP wall mount is 150 lbs (68.04 Kg).
• If you have any questions about this installation, contact Chief Manufacturing at 1-800-582-6480.
NOTE: This manual (8805-000125) supersedes manual 8804-000005.
