Summary of Contents for Blizzard Lighting Cyc Out
- Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2017...
-
Page 2: Table Of Contents
Fixture Information DMX In-Depth Reference Rate and Duration Details 5. Appendix A Quick DMX Lesson Troubleshooting Keeping Your Cyc Out™ As Good As New Returns (Gasp!) Shipping Issues Tech Specs Dimensional Drawings Page 2 Cyc Out™ User Manual Rev. D... -
Page 3: Cyc Out
Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. -
Page 4: Safety Instructions (Don't Run With Scissors!)
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www. blizzardlighting.com/support. Page 4 Cyc Out™ User Manual Rev. D © 2017 Blizzard Lighting, LLC... -
Page 5: Meet The Cyc Out™ Led Fixture

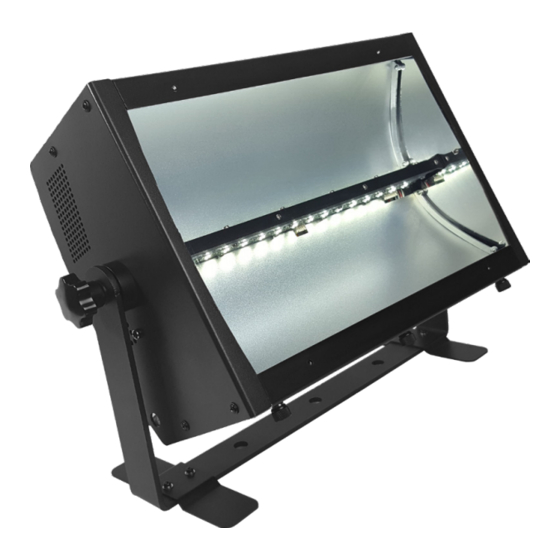

2. MEET THE CYC OUT™ LED FIXTURE MAIN FEATURES • 256 x (64* R/G/B/W) 3W LEDs, 50,000-100,000 hours • Dual zone control (top/bottom) via DMX • Individual R/G/B/W intensity, strobe duration, and rate control • Wide 60° beam angle, plus 2 leaf barndoor set •... -
Page 6: The Cyc Out™ Pin-Up Picture
Figure 1: The Cyc Out™ Pin-Up Picture Barndoor 256 x R/G/B/W 3W LEDs Zone 1 Zone 2 Locking Adjustment Knob Barndoor Figure 2: The Rear Connections 3-Pin DMX Power 5-Pin DMX AC Power 4-button Cooling In/Out Switch In/Out Input Control Panel... -
Page 7: Setup
Connecting A Bunch of Cyc Out™ Fixtures You will need a serial data link to run light shows using a DMX-512 control- ler or to run shows on two or more fixtures set to sync in master/slave operating mode. -
Page 8: Cable Connectors
Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 Cyc Out™ User Manual Rev. D © 2017 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
After finding the desired position, retighten both knobs. • When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance. • Safety cables MUST ALWAYS be used. Page 9 Cyc Out™ User Manual Rev. D © 2017 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
Press the <ENTER> button to select the menu function currently dis- played, or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button. Page 10 Cyc Out™ User Manual Rev. D © 2017 Blizzard Lighting, LLC... -
Page 11: Control Panel Menu Structure
TIONS ONLY. CONTINUOUS USE OF THIS FIXTURE IN MAX MODE MAY CAUSE PREMATURE FAILURE. FOR CYC/WASH USE, USE ONLY “CYC-HI” OR “CYC-LO” MODES. SEE PAGE 13 FOR MORE INFORMATION. Page 11 Cyc Out™ User Manual Rev. D © 2017 Blizzard Lighting, LLC... -
Page 12: Dmx Mode
4.) Press the <ENTER> button to confirm. Duration Time/Rate Time (Period) Relation: Light Dark Duration < Period (Rate) = Flashing Duration >= Period (Rate) = Light Continuously ON Page 12 Cyc Out™ User Manual Rev. D © 2017 Blizzard Lighting, LLC... -
Page 13: Dimming Mode Settings
Under normal conditions, it will be at 100%... but this fixture has built-in overheat protection that may automatically reduce the output level to 80%, or 50% in high temperature situations. Page 13 Cyc Out™ User Manual Rev. D © 2017 Blizzard Lighting, LLC... - Page 14 Random strobe (slow <-> fast) 141 <-> 180 Opening pulse (slow <-> fast) 181 <-> 220 Closing pulse (slow <-> fast) 221 <-> 255 Square wave (slow <-> fast) Page 14 Cyc Out™ User Manual Rev. D © 2017 Blizzard Lighting, LLC...
-
Page 15: Dmx In-Depth Reference
4.67 1.75 4.74 1.79 4.81 1.85 4.88 2.04 5.06 2.08 5.13 2.17 5.19 2.27 5.26 2.33 5.33 2.38 5.41 2.44 5.48 5.56 2.56 5.62 5.68 2.66 5.75 Page 15 Cyc Out™ User Manual Rev. D © 2017 Blizzard Lighting, LLC... - Page 16 10.99 18.87 11.11 19.23 11.17 19.61 11.17 11.3 20.41 11.3 20.83 11.43 21.28 11.43 21.74 11.56 22.22 11.56 22.73 11.7 23.26 11.7 23.81 11.83 24.39 11.83 11.98 Page 16 Cyc Out™ User Manual Rev. D © 2017 Blizzard Lighting, LLC...
-
Page 17: Appendix
Make sure all connectors are seated properly and securely. Responding / Use Only DMX Cables and/or check cables for defects Responding Er- Install a Terminator. ratically Reset fixture(s). Page 17 Cyc Out™ User Manual Rev. D © 2017 Blizzard Lighting, LLC... -
Page 18: Keeping Your Cyc Out™ As Good As New
Keeping Your Cyc Out™ As Good As New The fixture you’ve received is a rugged, tough piece of pro lighting equip- ment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed. -
Page 19: Tech Specs
Neutrik AG, Neutrik USA, or any related entity. Neutrik® and power- CON® are registered trademarks of Neutrik AG. Dimensional Drawings 17.8” (452.5mm) 6” (151.8mm) Page 19 Cyc Out™ User Manual Rev. D © 2017 Blizzard Lighting, LLC... - Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
