Page 1: Propar™ Cob Rgbaw Led Par Can
Blizzard Lighting, LLC http://www.blizzardpro.com Waukesha, WI USA Copyright (c) 2019... -
Page 2: Table Of Contents
DMX Channel Values In-Depth 5. Appendix A Quick DMX Lesson Keeping Your ProPar™ COB RGBAW As Good As New Returns (Gasp!) Shipping Issues Tech Specs Dimensional Drawings Page 2 ProPar COB RGBAW Manual - Rev. B (c) 2019 Blizzard Lighting, LLC... -
Page 3: Getting Started
Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www. blizzardpro.com/support. Page 4 ProPar COB RGBAW Manual - Rev. B (c) 2019 Blizzard Lighting, LLC... -

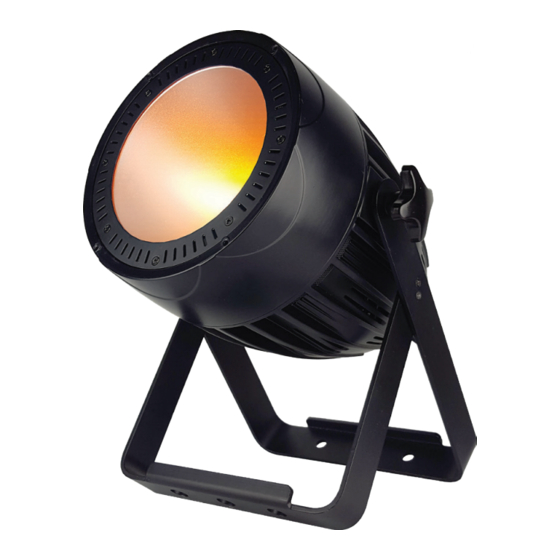

Page 5: Meet The Propar™ Rgbaw Cob
Channel What It Does Dimmer Red Intensity Strobe Green Intensity Color Macros Blue Intensity DMX Quick Reference (2-Channel Mode) Channel What It Does Dimmer Color Macros Page 5 ProPar COB RGBAW Manual - Rev. B (c) 2019 Blizzard Lighting, LLC... -
Page 6: The Propar™ Cob Pin-Up Picture
Figure 2: The Rear Connections LED Control Panel M10 Mounting Point (½ NPT Thread Adapter Included) Power Power Input Output 5-Pin 5-Pin DMX Out DMX Out Fuse Cover Page 6 ProPar COB RGBAW Manual - Rev. B (c) 2019 Blizzard Lighting, LLC... -
Page 7: Setup
Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms Page 7 ProPar COB RGBAW Manual - Rev. B (c) 2019 Blizzard Lighting, LLC... -
Page 8: Cable Connectors
Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 ProPar COB RGBAW Manual - Rev. B (c) 2019 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
• Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humid- ity, extreme temperature changes or restricted ventilation. Page 9 ProPar COB RGBAW Manual - Rev. B (c) 2019 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
<ENTER> button to select the menu function currently displayed, or to enable a menu option. To return to the previous option or menu, press the <MENU> button. Page 10 ProPar COB RGBAW Manual - Rev. B (c) 2019 Blizzard Lighting, LLC... -
Page 11: Control Panel Menu Structure
Display temperature in Fahrenheit or Celsius Time info Power On Displays the total operating time in hours Last Run Displays the operating time since the last operation Page 11 ProPar COB RGBAW Manual - Rev. B (c) 2019 Blizzard Lighting, LLC... -
Page 12: Dmx Mode
3.) Now use the <UP/DOWN> buttons to highlight On which keeps the menu display on continually, or Off which turns the menu display off after 30s of inactivity. 4.) Press the <ENTER> button to confirm your selection. Page 12 ProPar COB RGBAW Manual - Rev. B (c) 2019 Blizzard Lighting, LLC... -
Page 13: Dmx Fail Settings
Factory Reset: 1.) Navigate the main menu until you reach Settings, press <ENTER>. Then use the <UP/DOWN> buttons to highlight Factory Reset > On, and press <ENTER>. Page 13 ProPar COB RGBAW Manual - Rev. B (c) 2019 Blizzard Lighting, LLC... -
Page 14: Dmx Channel Values In-Depth
Warm White 094 <--> 163 Color Jump (slow <-> fast), Colors 1-12 164 <--> 233 Color Fade (slow <-> fast), Colors 1-12 234 <--> 255 Sound Active Page 14 ProPar COB RGBAW Manual - Rev. B (c) 2019 Blizzard Lighting, LLC... - Page 15 Dimmer Response (Halogen), Hold for 5 seconds 128 <--> 191 Fan Regular Mode, Hold for 3 seconds 192 <--> 255 Fan Silent Mode, Hold for 5 seconds Page 15 ProPar COB RGBAW Manual - Rev. B (c) 2019 Blizzard Lighting, LLC...
-
Page 16: Appendix
It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for any lighting designer or lighting performer. Page 16 ProPar COB RGBAW Manual - Rev. B (c) 2019 Blizzard Lighting, LLC... -
Page 17: Keeping Your Propar™ Cob Rgbaw As Good As New
Damage incurred in shipping is the responsibility of the shipper, and must be reported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 17 ProPar COB RGBAW Manual - Rev. B (c) 2019 Blizzard Lighting, LLC... -
Page 18: Tech Specs
Luminous Intensity: 1-meter 2-meter 3-meter 4-meter 5-meter 12,178 lux 3,612 lux 1,607 lux 975 lux 609 lux 1131.3 fc 335.5 fc 149.3 fc 90.6 fc 56.6 fc Page 18 ProPar COB RGBAW Manual - Rev. B (c) 2019 Blizzard Lighting, LLC... -
Page 19: Dimensional Drawings
Dimensional Drawings 9.9 in (250 mm) 11.7 in (298 mm) 10.7 in (272 mm) DISCLAIMER: The power connectors fitted to the fixture and fixture cord are designed for compatibility with products manufactured by Neutrik AG, Neutrik USA and their related entities, however they are not manufactured by, affiliated with or endorsed by Neutrik AG, Neutrik USA, or any related entity. - Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
