Page 1: The Puck Csi™ Xtreme Led Par Can
Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2014... -
Page 2: Table Of Contents
Sound Active, Pixel Group, Auto, & Fade Mode Individual Pixel Group Intensity Troubleshooting 5. Appendix Keeping The Puck CSI™ Xtreme As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 The Puck CSI Xtreme User Manual Rev. B Copyright (c) 2014 Blizzard Lighting, LLC... -
Page 3: Getting Started
Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right to update the existing document or to create a new document to correct any errors or omissions at any time. -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
• Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at sup- port@blizzardlighting.com. Page 4 The Puck CSI Xtreme User Manual Rev. -
Page 5: Meet The Puck Csi™ Xtreme Led Par Can
Pattern 2 Intensity (0% <--> 100%) Pattern 3 Intensity (0% <--> 100%) 000 <-> 255 000 <-> 255 Pattern 4 Intensity (0% <--> 100%) Page 5 The Puck CSI Xtreme User Manual Rev. B Copyright (c) 2014 Blizzard Lighting, LLC... -
Page 6: Xtreme Pin-Up Picture

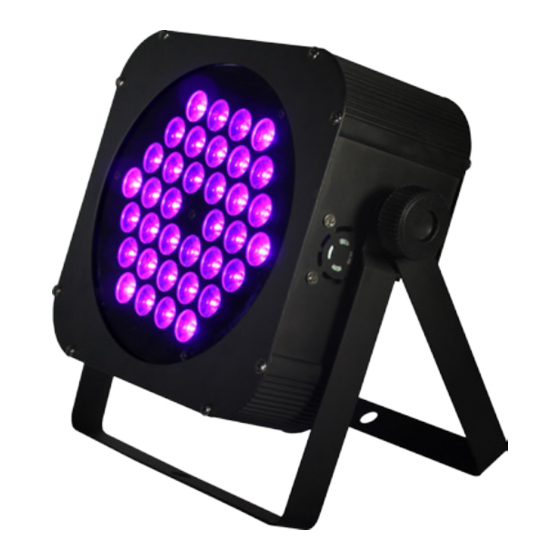

36x 3-watt UV LEDs Dual Mounting Yokes Ridiculously Thin! Figure 2: The Rear Connections DMX In DMX Out LED Control Panel Microphone AC Power In/Out Page 6 The Puck CSI Xtreme User Manual Rev. B Copyright (c) 2014 Blizzard Lighting, LLC... -
Page 7: Setup
Maximum capacitance between conductors – 30 pF/ft. Maximum capacitance between conductor & shield – 55 pF/ft. Maximum resistance of 20 ohms / 1000 ft. Nominal impedance 100 – 140 ohms Page 7 The Puck CSI Xtreme User Manual Rev. B Copyright (c) 2014 Blizzard Lighting, LLC... -
Page 8: Cable Connectors
Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 The Puck CSI Xtreme User Manual Rev. B Copyright (c) 2014 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
• When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance. • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 The Puck CSI Xtreme User Manual Rev. B Copyright (c) 2014 Blizzard Lighting, LLC... -
Page 10: Using This Fixture With The Wicicle® Wireless Dmx System
Antenna Antenna ferrule & articulation joint Stainless Steel Housing Recessed Selector Button Status LED 3-Pin XLR Connector (Male on transmitter, Female on receiver model) Page 10 The Puck CSI Xtreme User Manual Rev. B Copyright (c) 2014 Blizzard Lighting, LLC... - Page 11 NOTE: The color of the LED DURING operation does not indicate channel group, instead it indicates whether the unit is transmitting or receiving. That’s It! Page 11 The Puck CSI Xtreme User Manual Rev. B Copyright (c) 2014 Blizzard Lighting, LLC...
-
Page 12: Operating Adjustments
4. OPERATING ADJUSTMENTS The Control Panel All the goodies and different modes possible with the Puck CSI Xtreme are accessed by using the control panel on the rear of the fixture. There are 4 control buttons below the LED display which allow you to navigate through the various control panel menus. <MENU>... -
Page 13: Control Panel Menu Structure
Pixel Group 2 Intensity (0-255) bLuE Pixel Group 3 Intensity (0-255) UhIt Pixel Group 4 Intensity (0-255) test Test Mode / Auto Check FhrS Displays Total Running Hours Page 13 The Puck CSI Xtreme User Manual Rev. B Copyright (c) 2014 Blizzard Lighting, LLC... -
Page 14: Dmx Mode
4. Press the <ENTER> button, then from here use the <UP/DOWN> buttons to navigate the speed setting from SP1 (slow) to SP8 (fast). 5. Press the <ENTER> button, then <ENTER> again to save. Page 14 The Puck CSI Xtreme User Manual Rev. B Copyright (c) 2014 Blizzard Lighting, LLC... -
Page 15: Individual Pixel Group Intensity
Verify remote is correct type (CA-9 or other as applicable.) Fixture Moving Verify proper mode of operation. Is the fixture in “Auto” mode? On Its Own If your problem persists or isn’t listed contact support@blizzardlighting.com. Page 15 The Puck CSI Xtreme User Manual Rev. B Copyright (c) 2014 Blizzard Lighting, LLC... -
Page 16: Appendix
Damage incurred in shipping is the responsibility of the shipper, and must be re- ported to the carrier immediately upon receipt of the items. Claims must be made within seven (7) days of receipt. Page 16 The Puck CSI Xtreme User Manual Rev. B Copyright (c) 2014 Blizzard Lighting, LLC... -
Page 17: Tech Specs
Other Operating Modes Standalone, Master/Slave, Sound Active Pimp Name Sugartastic Puck CSI Dogg 2-year limited warranty, does not cover malfunction Warranty caused by damage to LED’s. Page 17 The Puck CSI Xtreme User Manual Rev. B Copyright (c) 2014 Blizzard Lighting, LLC... - Page 18 This page intentionally left blank. Page 18 The Puck CSI Xtreme User Manual Rev. B Copyright (c) 2014 Blizzard Lighting, LLC...
- Page 19 This page intentionally left blank. Page 19 The Puck CSI Xtreme User Manual Rev. B Copyright (c) 2014 Blizzard Lighting, LLC...
- Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
