DM Series Digital Matrix Processors

Using the Update Wizard

The control panel can be used to download firmware
updates to the DM1624. The Update Wizard guides you
through the steps of the update process. Since a failed
firmware update can leave the DM1624 in an unusable
state, it is important to follow the instructions in the
Update Wizard exactly.
Firmware updates are distributed as a file whose name
follows the pattern "dm1624-vX_X_X.update", where the
"X_X_X" is a placeholder for a firmware version number.
For example a firmware update for version number
"1.1.12" would have the filename "dm1624-
v1_1_12.update". The dots normally used to separate
the three parts of the version number are replaced with
underscores in the filename for clarity.
Before starting make sure that the proper update file is
on hand. Connect the DM1624 to a PC with a USB
cable. The update process is possible only using a USB
connection. Apply power to the DM1624 and start the
control panel software on the PC.

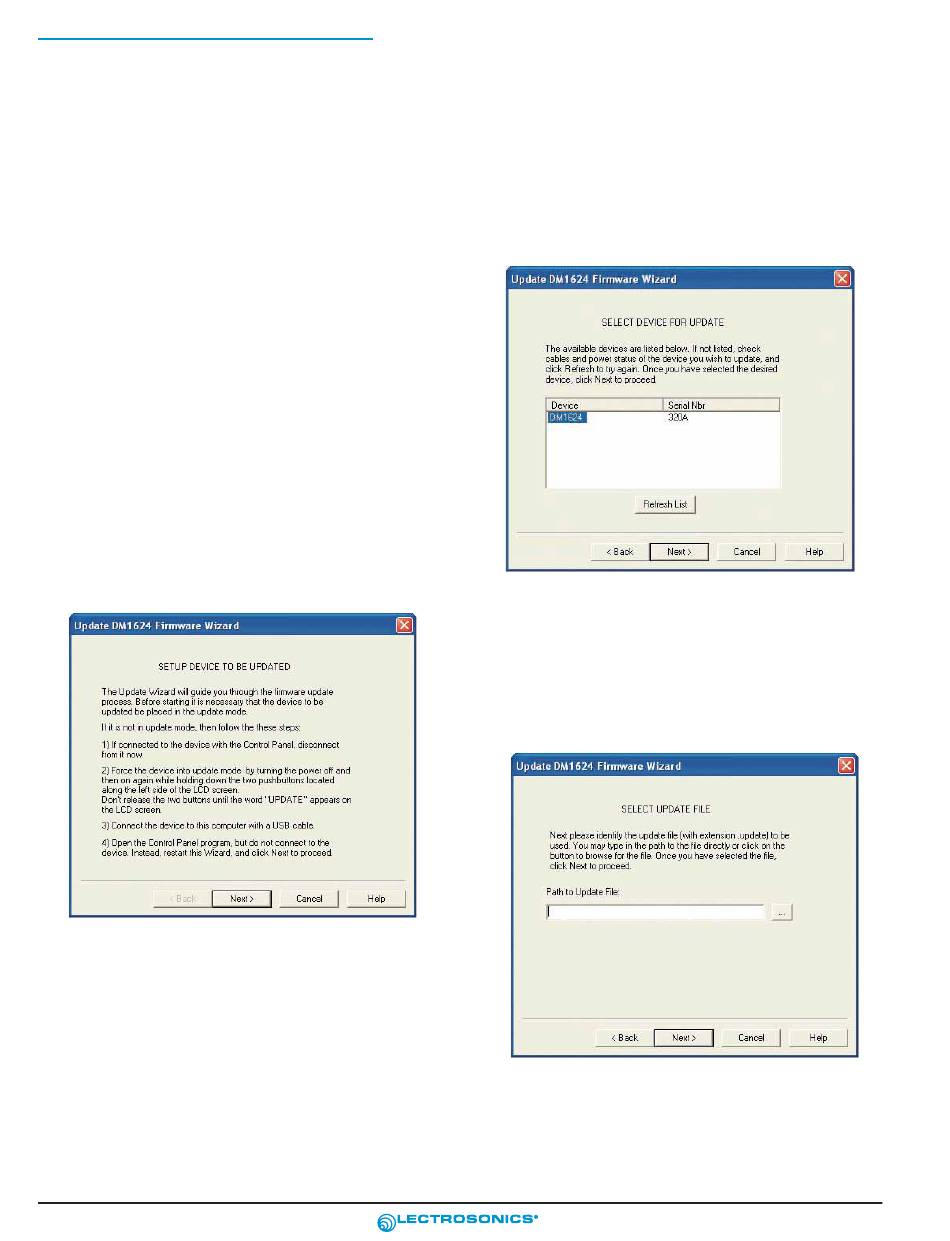

1. Choose File->Update... from the Menu Bar.
The Update DM1624 Firmware Wizard will
open:
30

Firmware Updates

2. The first page of the Wizard displays
instructions for the process of forcing the
DM1624 into update mode. Follow them
carefully and then click Next to move on to
the SELECT DEVICE FOR UPDATE page:
3. If the DM1624 was detected on the USB port
then it will be listed here. Use the mouse to
select the DM1624 you wish to update. If it
doesn't appear in the list, check the USB
cable and click Refresh List to try again.
Once the DM1624 is selected, click Next to
move on to the SELECT UPDATE FILE page:
