DM Series Installation Guide Installation Guide Hardware and Software DM Series Digital Audio Processors models DM1624, DM1612, DM812 Rio Rancho, NM...
DM Series Installation Guide IMPORTANT SAFETY INSTRUCTIONS This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure -- voltage that may be sufficient to constitute a risk of shock. This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature.
Page 4
(the center pin). For balanced connections, all three Reference Manual leads can be connected. Power cable The DM1624 does not have a “pin 1 problem”. 5-pin de-pluggable connectors: Unbalanced and balanced input connections use the 20 each for the DM1624 following guidelines.
Page 5
DM Series Installation Guide DM Out Destination Audio Outputs All outputs are a balanced differential configuration. Some outputs include an attenuator to reduce the signal Shield to mic level. Wiring is the same for either line or mic level, as indicated in the following illustrations. NOTE: DM Out to Balanced Input USING A LINE OUTPUT WITH THE DIGITAL ATTENUATION...
DM Series Installation Guide Programmable Inputs Programmable inputs are provided to enable control are necessary. When using a continuous voltage with over a variety of parameters. Each input can respond to one of the programmable inputs, the Function of the either a contact closure or a continuous voltage.
Page 7

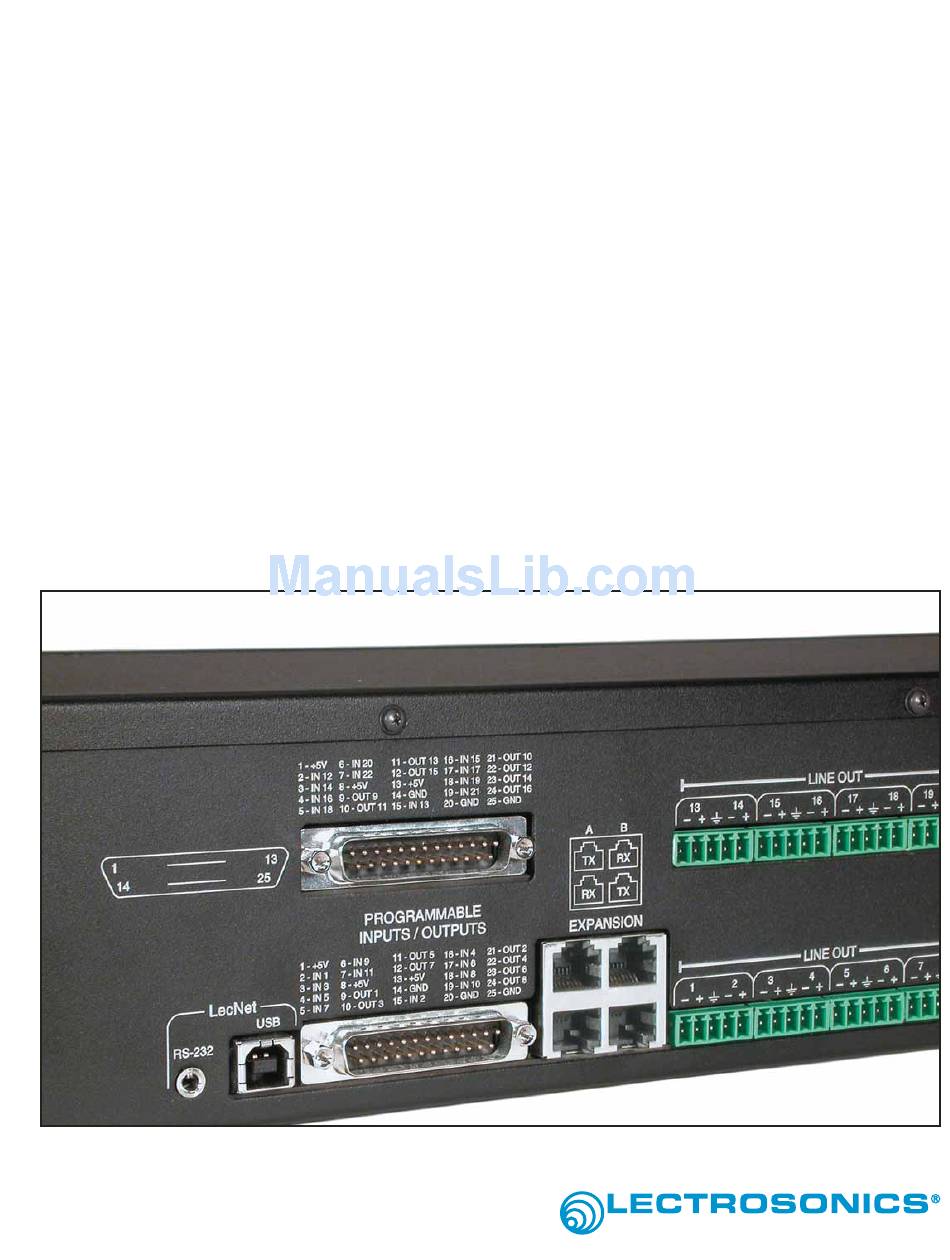

DM Series Installation Guide PROGRAMMABLE INPUTS/ OUTPUTS EXPANSION 1 - GND 11- OUT 5 21 - OUT 2 6 - IN 9 16 - IN 4 2 - IN 1 7 - IN 11 12 - OUT 7 17 - IN 6 22 - OUT 4 LINE OUT 3 - IN 3...
DM Series Installation Guide U.S. Patent Number: 5,414,776 DM1624 1 - GND 6 - IN 20 11- OUT 13 16 - IN 15 21 - OUT 10 2 - IN 12 7 - IN 22 12 - OUT 15 17 - IN 17...
COM ports (serial), Network, USB or Extron IPL T S. Upon connection you will be able to program and setup the DM1624. See the help files in the software for more complete instructions. HINT 1 - The GUI interface is quite intuitive. As a...
Page 10
DM Series Installation Guide IMPORTANT The minimum required setup is necessary before the The software control panel will default to the “Offline” DM processor will pass audio: mode. If a DM Series unit is connected to the computer, you will need to make a connection using the control Inputs Setup - Matrix Setup - Outputs Setup panel as shown here.
DM Series Installation Guide ™ Installing LecNet2 Software and USB Driver This Graphical User Interface (GUI) is designed to allow First time installation easy setup and monitoring of DM components using a When a Lecnet2 device is connected to the PC for the computer system running under the Windows ®...
Page 12
DM Series Installation Guide Windows will discover the previously installed driver and it is likely that a dialog will open 5. When the driver installation is complete, the warning you that the driver has not passed final page of the Wizard appears. Click Windows Logo Testing.
Page 13
DM Series Installation Guide USB Driver Installation (Windows 2000) First Time Installation When a Lecnet2 device is connected to the PC for the very first time, the Windows Found New Hardware Wizard automatically opens. Use the following proce- dure to install the Lecnet2 USB driver using the Wizard. 1.
This warranty does not apply to used or demonstrator equipment. Should any defect develop, Lectrosonics, Inc. will, at our option, repair or replace any defective parts without charge for either parts or labor. If Lectrosonics, Inc. cannot correct the defect in your equipment, it will be replaced at no charge with a similar new item.
