Operation with Front Panel Controls

Some adjustments, such as levels and mute activity, can
be made to DM Series processors without a computer
using the front panel LCD interface. While it is highly
recommended that the supplied GUI software be used,
the ability to make minor adjustments without a com-
puter is often valuable.
"Back" button used to save settng
and return to previous menu.

NOTE:

Adjustments made with the LCD controls are real time. As each setting is
made, the result will be heard immediately.

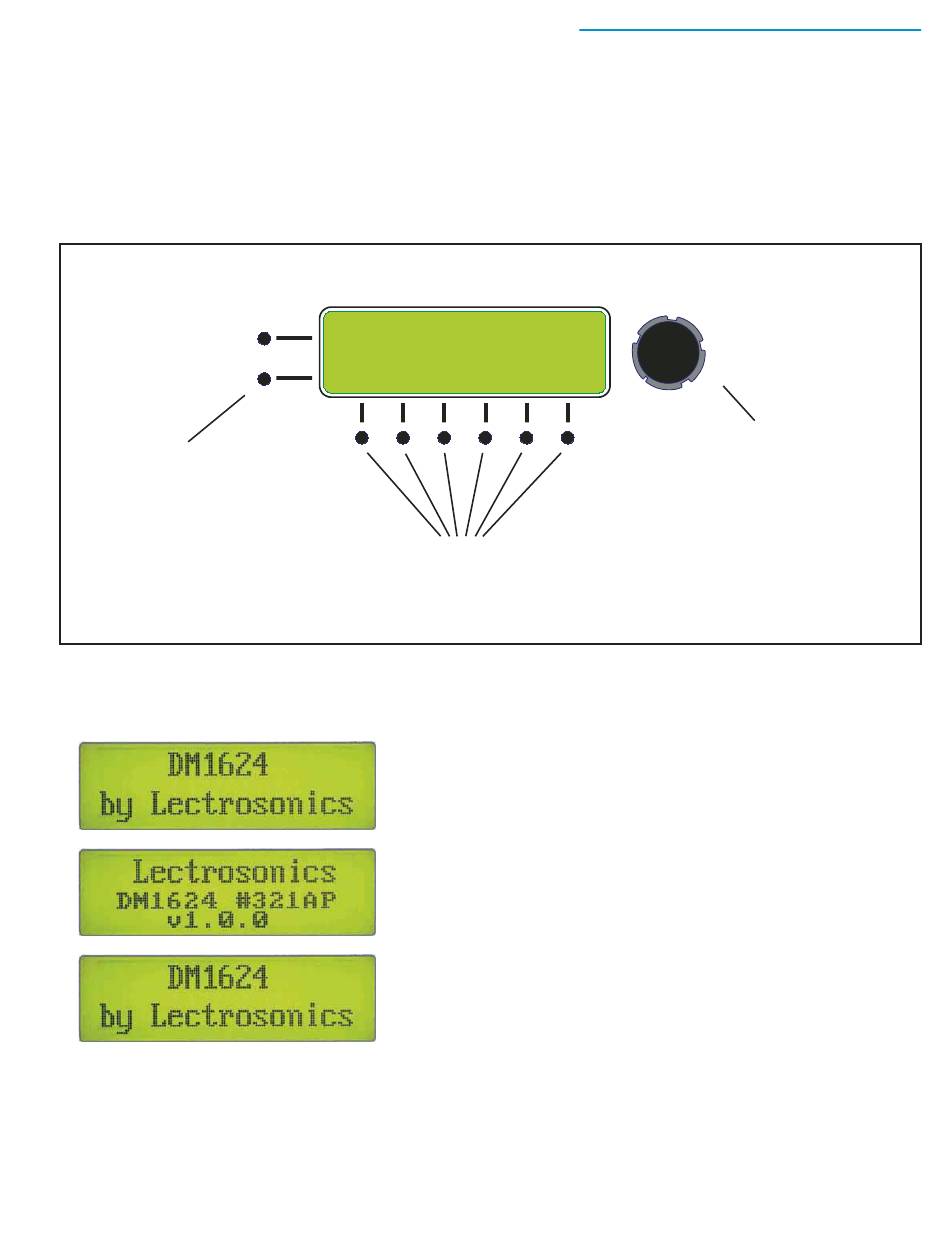

LCD Interface

BACK
Item select buttons used on setup screens.

Boot Sequence Screens

The first screen displays the model number.
A second screen is then displayed briefly showing the
serial number and the firmware version.
The display then returns to the first screen showing the
model number, indicating that the unit has completed
boot sequence and is running.
Press the rotary encoder knob to move to the Top Menu
after the boot sequence is completed.
