DM Series Digital Matrix Processors

Top Menu

Setup Menu

Setup Screens

Item Select buttons
The "Back" Button
From any screen or menu, the lower
button to the left of the display will
return to the previous screen.
18

General Overview - Menus and Screens

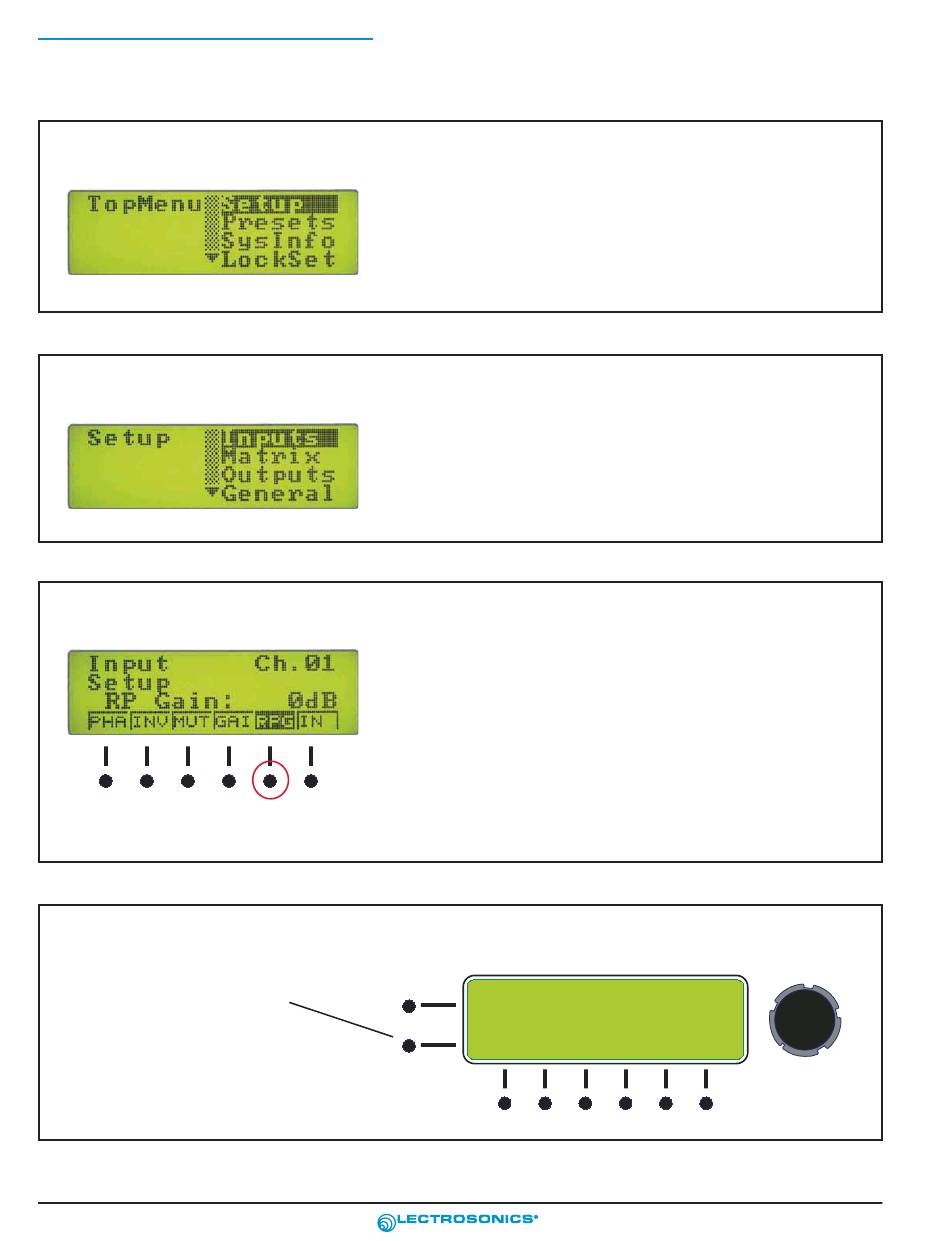

Top Menu
When the encoder knob is pressed at the the model number
screen, the screen defaults to the TopMenu. Rotate the knob to
select the menu item. The Setup item is selected in this ex-
ample. Press the rotary encoder knob to select the Setup menu.

Setup Menus

The Setup menu lists a number of setup screen items. Rotate
the encoder knob to select the desired menu item, then press it
to enter the selected setup screen. In this example, the Input
Setup item is selected.
Input Setup Screen
This example shows the Input Setup Screen that appears after
the encoder knob is pressed in the Top Menu with this item
selected. The selected input to be adjusted is shown in the
upper right section of the screen.
Six buttons under the display are used to select the items listed
across the bottom of the screen. Pressing the button under the
item on the screen will select the item and show its setting. In
this example, the RPG item is selected (highlighted) and the
current setting is shown (0dB).
BACK
PUSH FOR
MENU/SELECT
