DM Series Digital Matrix Processors

Matrix Crosspoint Setup Screens

Press the BACK button to the left of the display to return to
the Setup Menu from any of the Crosspoint Setup screens.
20

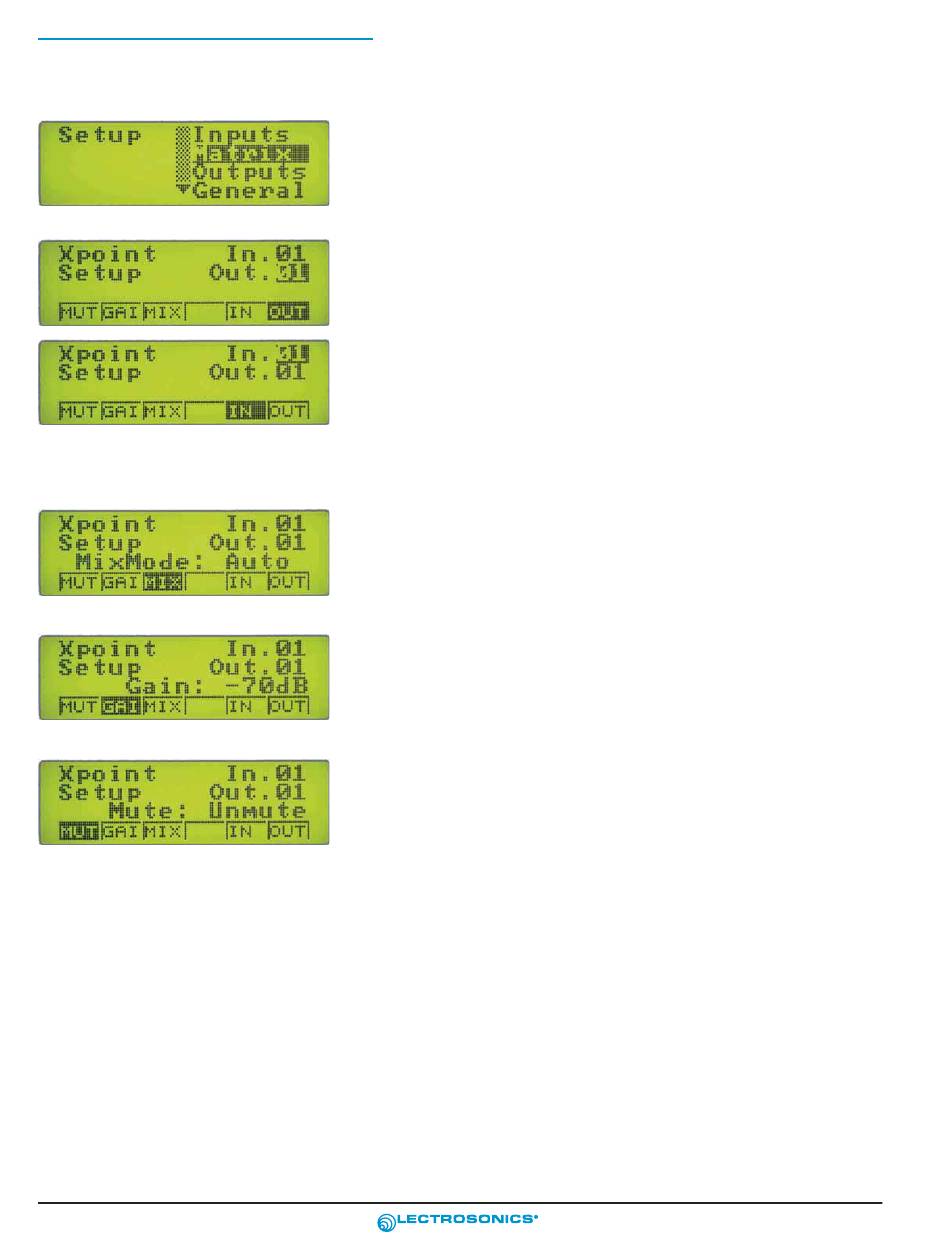

Setup - Matrix

Navigate to the Setup menu and rotate the encoder knob to select
Matrix, as shown in this example. Press the encoder knob to move to
the Xpoint Setup (matrix crosspoint) setup screen.

Xpoint Setup Menu

Matrix crosspoints are configured from this screen, which contains
settings for a single crosspoint. The selected output and input are
shown at the upper right section of the screen. In this example the
settings for crosspoint 1,1 (routing input 1 to output 1) are shown. To
change the output channel, select item OUT. To change the input
channel, select item IN. The corresponding channel number will be
highlighted as in this example. Rotate the encoder knob to select the
desired channel, and press it to accept the selection.
NOTE: Select the desired matrix crosspoint before
making the following adjustments.

Xpoint Setup - MixMode

Select MIX to view/change the Mix Mode for the selected crosspoint.
Rotate the encoder knob to select the desired mode. MixModes are
explained on page 9 as used in various applications.

Xpoint Setup - Gain

Select GAI to view/change the gain for the selected crosspoint. After the
desired input and output have been selected, adjust the gain to be
applied at this crosspoint. Values range from -70dB to +20dB in 1 dB
increments.

Xpoint Setup - Mute

Select MUT to view/change the mute state of the selected crosspoint.
Rotate the encoder knob to toggle between choices Mute and Unmute.
