TopMenu - CmdView

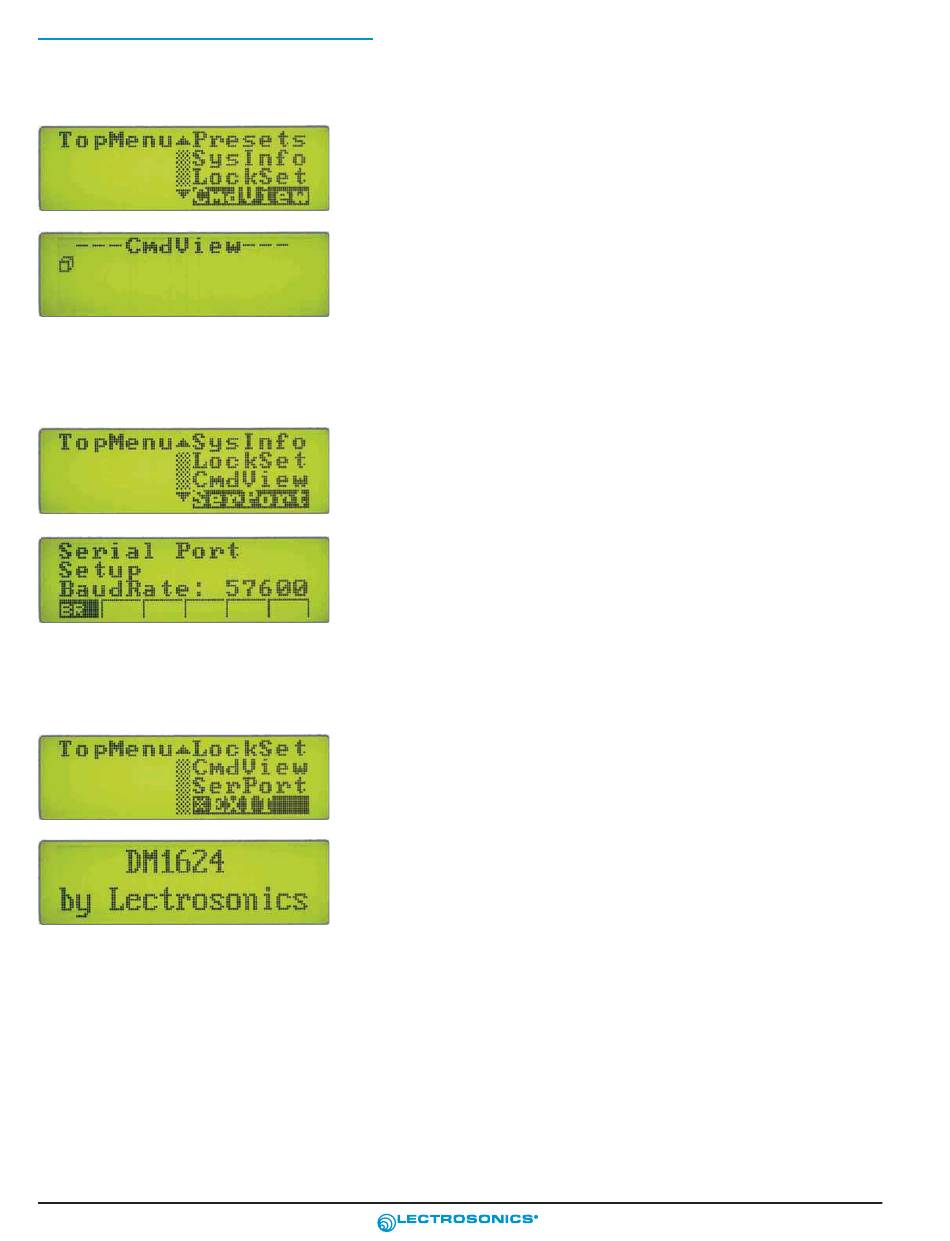

A convenient utility screen is provided assist in verifying correct serial
commands have been sent to the unit. Navigate to the CmdView item
on the Top Menu and press the encoder knob.
The Command View screen shows a rolling list of the serial commands
as they arrive in the unit. Each command that is received will appear on
a separate line in the screen. This is used primarily for diagnostics
when setting up or troubleshooting serial remote control systems.

TopMenu - SerPort

Navigate to the SerPort item on the Top Menu and press the encoder
knob.
The current Baud Rate is displayed on the next screen.
Rotate the encoder knob to adjust the Baud Rate. The selected baud
rate takes effect immediately.
When using the RS232 serial port in conjunction with the GUI software, the baud rate
must be set to 57600 or the GUI will not be able to connect to the device.

TopMenu - EXIT

This item on the menu returns to the boot screen when the encoder
knob is pressed.
