Input Setup

NOTE: select the input channel to be
modified with the item select buttons before
moving to the following steps.

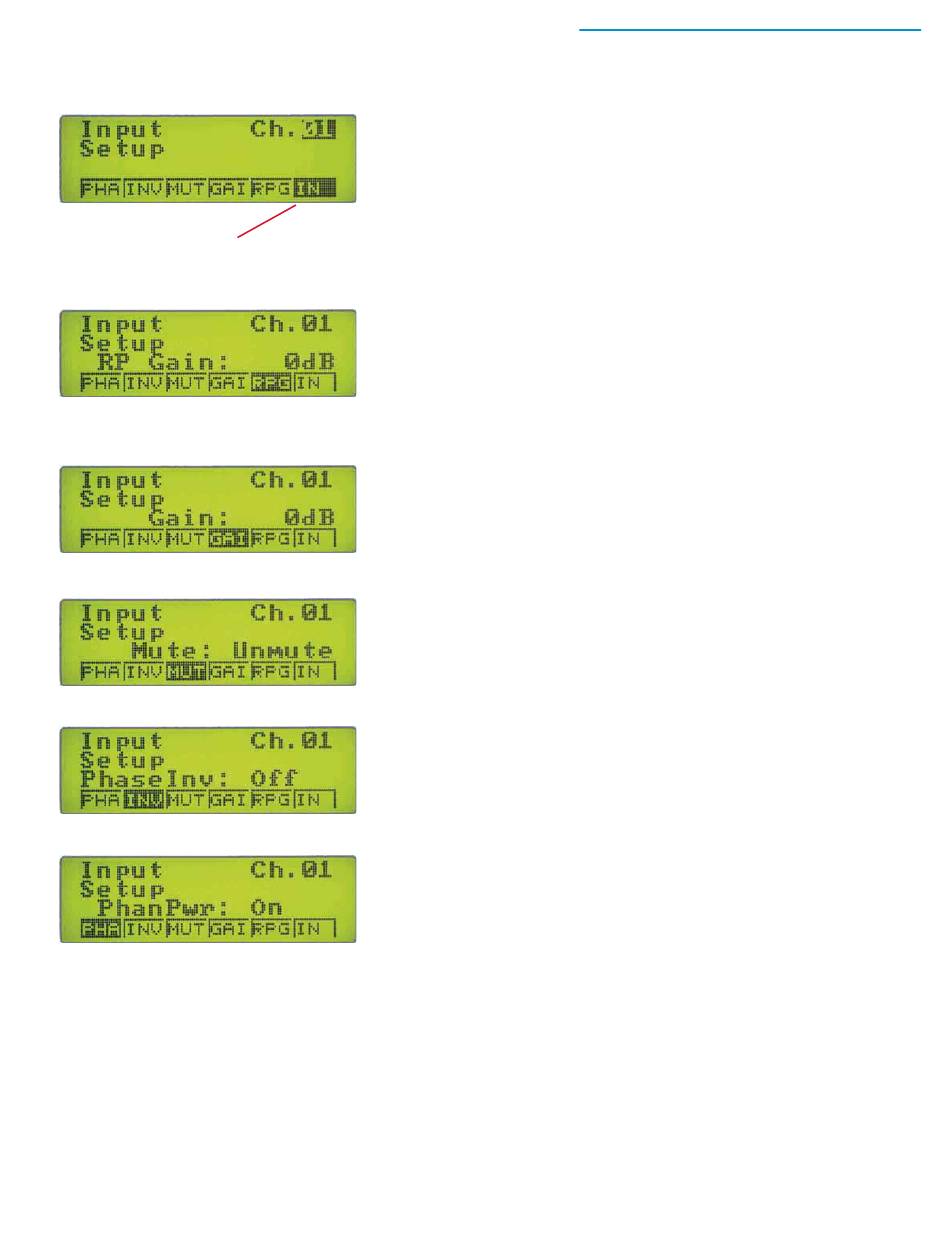

Input Select

Select IN to choose the desired input channel. The channel number in
the upper right hand section of the screen will be highlighted. Rotate the
encoder knob to select the input channel and press it to accept the
selection.
NOTE: select the desired input channel before making any of the
following adjustments.

Input Setup - RP Gain

Select RPG to view/change the rear panel gain setting for the selected
input channel. This setting is normally controlled by hardware (ie. pots,
switches) connected to the programmable input ports on the rear panel
of the unit.
NOTE: RP Gain is an attenuator only, with a range from 0dB to -30dB.

Input Setup - Gain

Select GAI to view/change the input channel gain. Rotate the encoder
knob to select the desired gain. The gain that can be applied to each
input ranges from -10dB to +60dB in 1dB increments.

Input Setup - Mute

Select MUT to view/change the mute state of the selected input. Rotate
the encoder knob to change the state. In this example, Input 1 is not
muted - in other words, the sound from this channel is turned on.

Input Setup - Phase Inv

Select INV to adjust the audio phase invert status of the selected input.
Rotate the encoder knob to toggle between Off (phase not inverted) and
On (phase inverted).

Input Setup - PhanPwr

Select PHA to turn phantom power on or off for the selected input.
Rotate the encoder knob to toggle between choices On or Off.
Press the BACK button to the left of the display to return
to the Setup Menu from any of the Input Setup screens.
