Page 1: Assembly Instructions

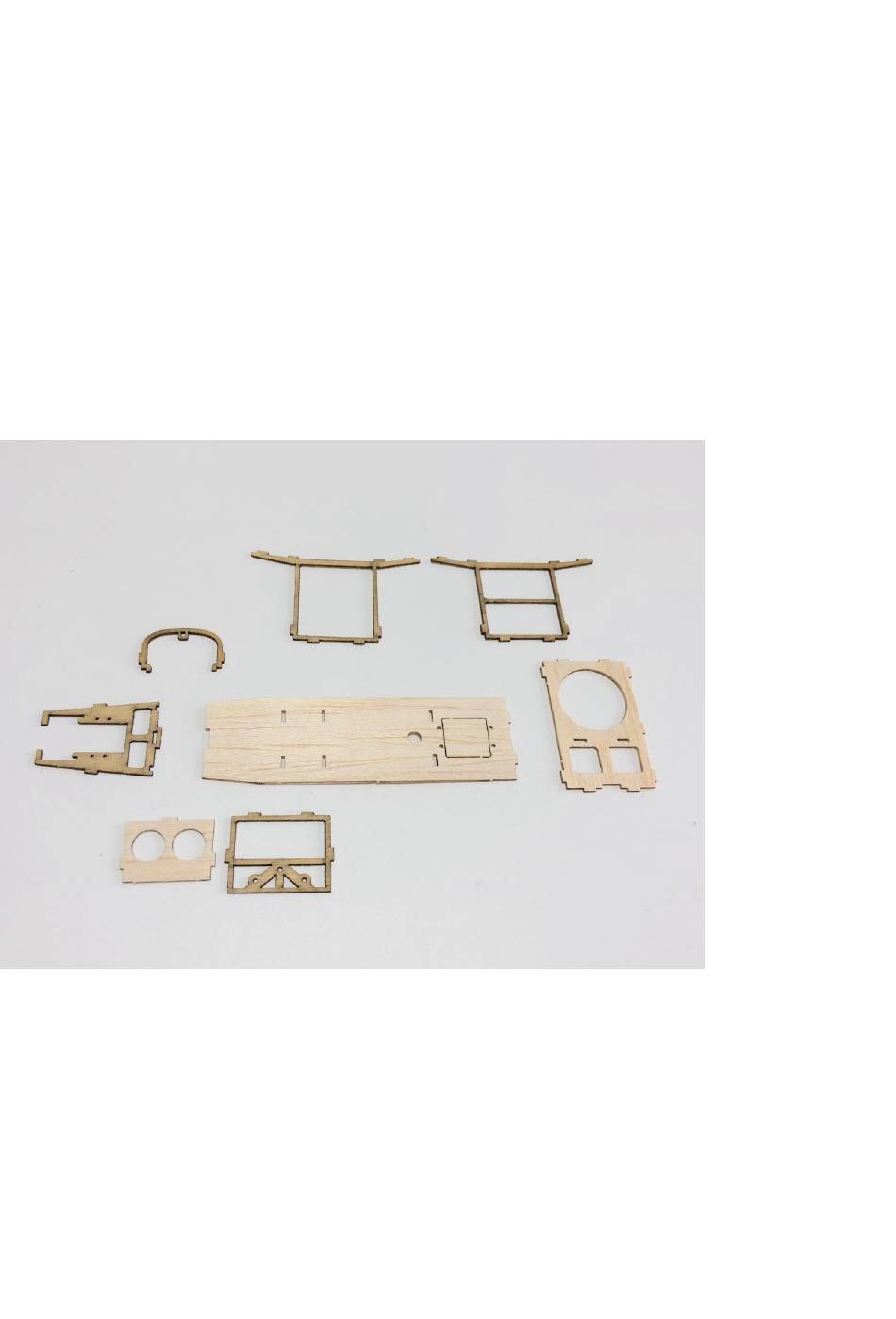

MinimumRC Piper Cub J-3 Assembly Instructions 1. Use a Hobby Knife to remove parts from the board 2. Do not remove unused parts in advance to prevent loss! - Page 3 5. Screw in the screw to secure the landing gear 6. Press the crease along the dotted line and bond the cabin reinforcement...
- Page 4 7. The finished cabin reinforcement is shown in the figure.
- Page 5 8. Combined body side panel...
- Page 7 13. Combined fuselage floor.
- Page 14 27. The hood is attached to the body by snaps and is glued without glue. 28. Overall sanding and shaping.
- Page 15 29. Cut off the hood back support piece...
- Page 16 31. Use Du-Bro DUB916 Electric Flyer Hinge Tape for the Rudder and Elevator hinges.
- Page 17 34. Symmetrical assembly of wings on both sides...
- Page 19 38. Use a heat shrinkable sleeve on the wire to act as a block...
- Page 20 39. Attach windshield and side windows with RC Canopy Glue.
- Page 21 42 Build up engine parts and install on cowl.
- Page 22 44. Magnetic fixture hatch.
- Page 27 54. The battery is placed inside the engine compartment cover.
- Page 28 Assembly completed Flight test instructions...
- Page 29 1. This machine adopts the concave and convex airfoil, and the center of gravity is located at the front wing of the wing. Please adjust the center of gravity with the equipment in the cabin. 2. The amount of lifting and rudder can be 5mm on both sides.
