01. Operation and setting
This product is programmable controller designed with dialogue style touch screen easy-to-use for the users.

1-1. Basic operation flow chart

● The logo screen and the initial screen are displayed sequentially when the electric power is switched "ON"
after installation of the product and it converts to the program stationary screen.
● It takes about 20 seconds for screen loading
● When button is touched at the top of the program stationary screen, it converts to the main screen.
● Refer to [13. System initial setting] in [Installation manual] for change in the initial screen.

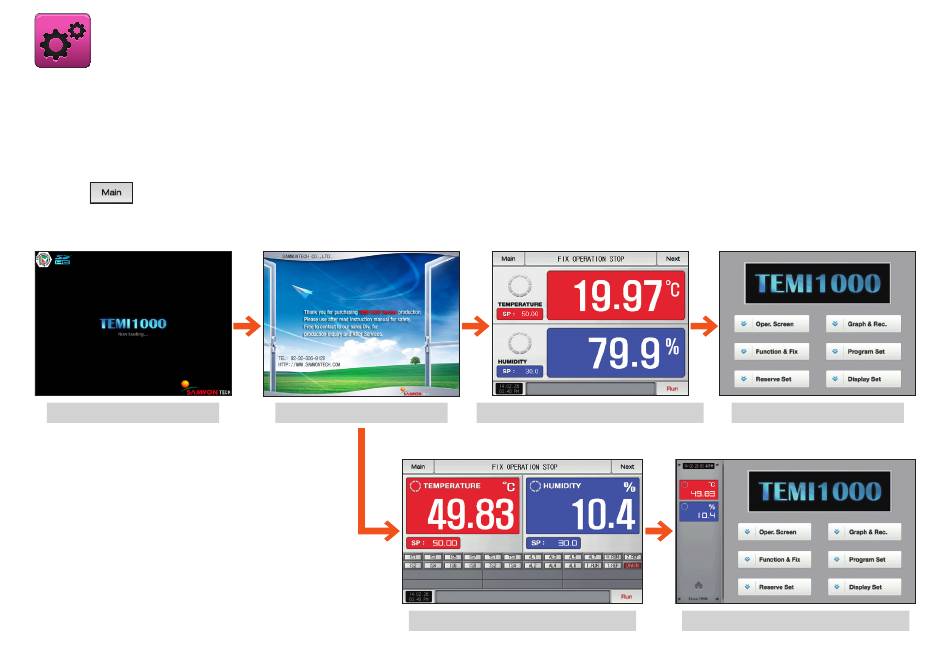

Logo screen Initial screen Stationary operation still screen(TEMI1500)
Stationary operation still screen(TEMI1300/1900 WIDE)
4
Main screen(TEMI1500)
Main screen(TEMI1300/1900 WIDE)
