The temperature (Red) is disappeared on the graph screen when the checked
①
button is touched in the currently operating screen and temperature (Red) is
displayed in the graph screen when button is touched again.
, buttons are used even in during operation(RUN) .
●
The humidity (Blue) is disappeared on the graph screen when the checked
button is touched in the currently operating screen and humidity (Blue) is
②
displayed in the graph screen when button is touched again.
, buttons are used even in during operation(RUN) .
●
Setting the pattern No. to be displayed
Display the input key to set the pattern No. when
●
③
is touched.
Refer to [Fig. 6-4 Pattern No. input screen]
●
Setting the time on graph X axis
Display of the input key to set the time on X axis when
●
④
is touched.
The time on X axis can be changed during operation
●
⑤
Moving from current screen to next screen
Change into the Previous/Next stage on the time axis when
⑥
is touched on the current page.
⑦
It is possible to change of graph thinkness

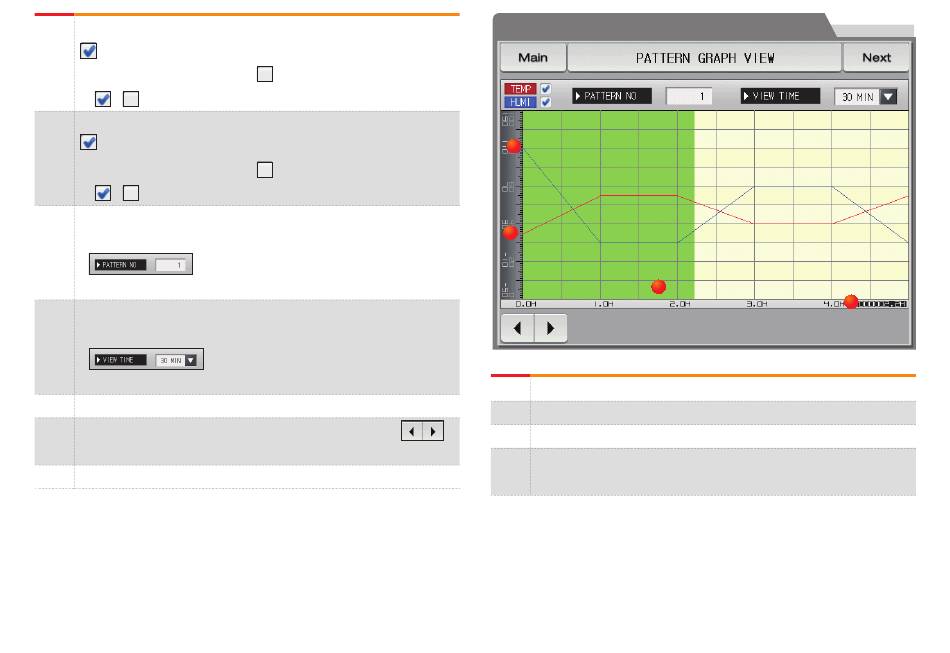

[Fig. 6-3] Graph & Save screen 1 (Program operation)
2
1
①
Display the current temperature during operation
②
Display the current humidity during operation
③
Display in green for the operation ended part
Display the processing time for the set pattern in
④
[7-1 Program pattern setting]
