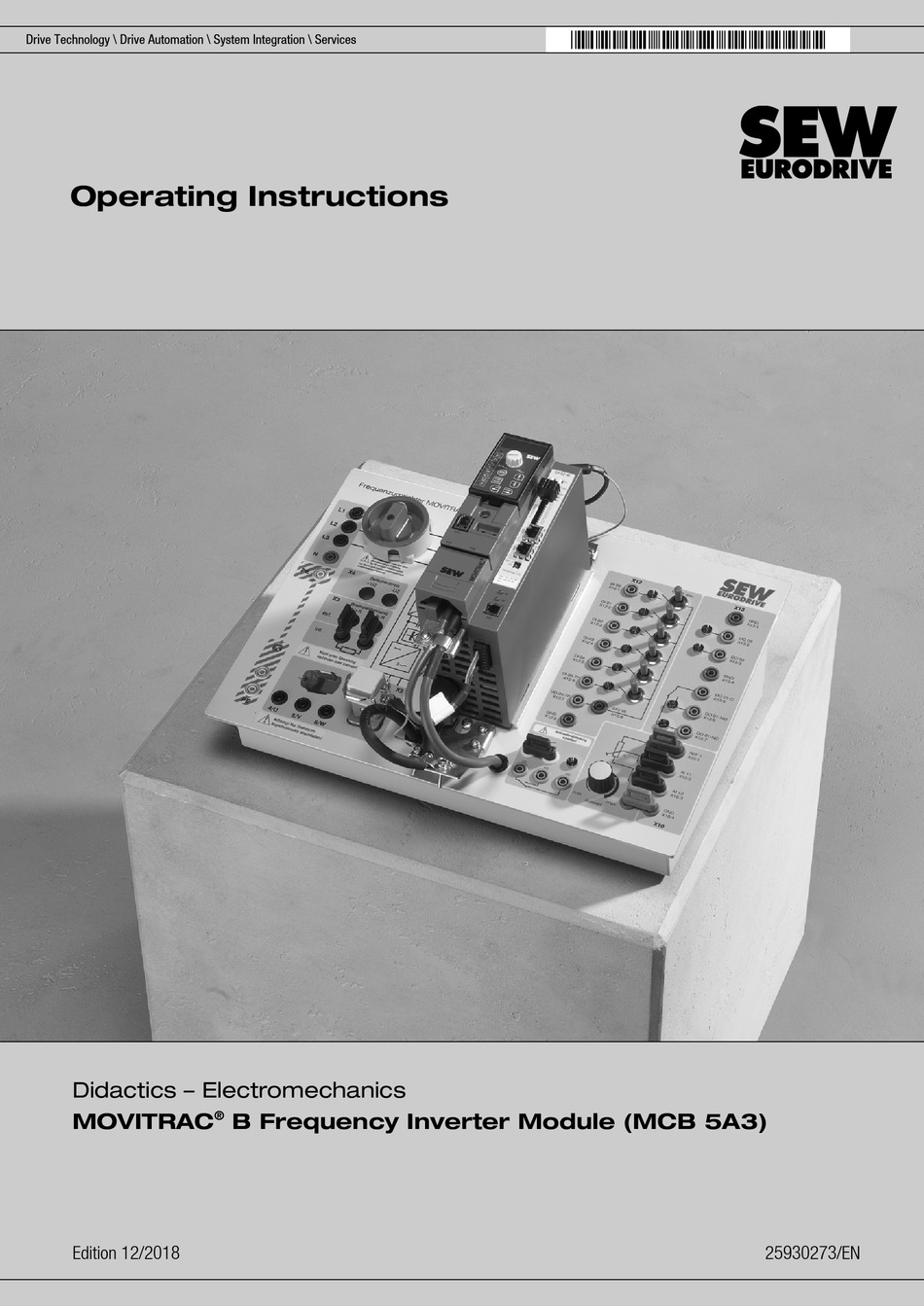

- Page 1 *25930273_1218* Drive Technology \ Drive Automation \ System Integration \ Services Operating Instructions Didactics – Electromechanics ® MOVITRAC B Frequency Inverter Module (MCB 5A3) Edition 12/2018 25930273/EN...
- Page 2 SEW-EURODRIVE—Driving the world...
-
Page 3: Table Of Contents
Table of contents Table of contents General information........................ 5 About this documentation .................... 5 Structure of the safety notes ................... 5 Decimal separator in numerical values ................ 6 Rights to claim under limited warranty ................ 6 Applicable documentation.................... 6 Product names and trademarks.................. 7 Copyright notice ...................... 7 Safety notes .......................... - Page 4 Table of contents Certifications ......................... 34 Address list .......................... 35 Index ............................ 36 ® Operating Instructions – MOVITRAC B Frequency Inverter Module (MCB 5A3)
-
Page 5: General Information
General information About this documentation General information About this documentation The current version of the documentation is the original. This documentation is an integral part of the product. The documentation is intended for all employees who perform work on the product. Make sure this documentation is accessible and legible. -
Page 6: Decimal Separator In Numerical Values
General information Decimal separator in numerical values Hazard symbol Meaning Warning of dangerous electrical voltage Warning of hot surfaces Warning of automatic restart 1.2.3 Structure of embedded safety notes Embedded safety notes are directly integrated into the instructions just before the de- scription of the dangerous action. -
Page 7: Product Names And Trademarks
General information Product names and trademarks Product names and trademarks The brands and product names in this documentation are trademarks or registered trademarks of their respective titleholders. Copyright notice © 2018 SEW‑EURODRIVE. All rights reserved. Unauthorized reproduction, modifica- tion, distribution or any other use of the whole or any part of this documentation is strictly prohibited. -
Page 8: Safety Notes
Safety notes Preliminary information Safety notes Preliminary information The following general safety notes serve the purpose of preventing injury to persons and damage to property. They primarily apply to the use of products described in this documentation. If you use additional components, also observe the relevant warning and safety notes. -
Page 9: Transport
Safety notes Transport Startup (i.e. start of regular operation) is permitted with adherence to EMC guideline only. Technical data and information on the connection conditions are provided on the nameplate and in the documentation. Comply with the data and conditions. Transport Inspect the shipment for damage as soon as you receive the delivery. -
Page 10: Startup And Operation
Safety notes Startup and operation Ground connections are required as preventive measures. Startup and operation Before startup, make sure that the 4 mm sockets, buttons, and switches are intact. It might be necessary to equip locations where such devices are used with additional monitoring and protection devices in accordance with the respective applicable safety regulations, e.g. -
Page 11: Device Structure
Device structure Scope of delivery Device structure Scope of delivery The following components are included in the delivery: • Front plate • Housing • Assembled and checked printed circuit board for the power section • Braking resistor ® • MOVITRAC B frequency inverter •... -
Page 12: Basic Unit
Device structure Basic unit Basic unit ® MOVITRAC B frequency inverter module (MCB 5A3) Ein - 0 - Ein DI 00 X12.1 X13.1 DI 01 DO 02 X12.2 X13.2 DI 02 DO 03 X12.3 X13.3 3/L3 2/L2 1/L1 DI 03 X12.4 X13.4 Braking resistor... -
Page 13: Device Components
Device structure Device components Device components ® 3.4.1 MOVITRAC B [10] 16249811595 X1: Line connection 3-phase: L1/L2/L3/PE Fixing strap PE connection Option card slot SEW-EURODRIVE recommends: • PROFIBUS DFP21B (part number 18235395) • PROFINET DFE32B (part number 18235425) • PROFINET IO / PROFIsafe DFS21B (part number 18211836) Shield plate for motor cable, fixing strap underneath X2: Motor connection U/V/W / brake connection +R/-R X17: Safety contact for STO (safe torque off) - Page 14 Device structure Device components The USB11A option is connected to the PC using a commercially available, shielded USB connection cable of the type USB A-B. ® ® The USB11A option is connected to MOVITRAC B and MOVITRAC B is connected to USB11A using a serial interface cable with RJ10 connectors.
- Page 15 Device structure Device components (0.47) 18014398595541387 Type Main dimensions in mm Fastening in mm Mass kg BW072-003 400/500 V Braking resistor type BW072-003 Part number 8260583 100% cdf 230 W 50% cdf 310 W 25% cdf 420 W 12% cdf 580 W 6% cdf 1000 W Resistance value R 72 Ω...
-
Page 16: Installation
Installation Important information Installation Important information INFORMATION • Observe the documentation of components connected or mounted to the module (e.g. motor, inverter). • Comply with all instructions referring to the technical data and the permissible conditions where the device is operated. WARNING Electric shock when disconnecting or connecting voltage-carrying plug connectors. -
Page 17: Electrical Connections
Installation Electrical connections 4.1.4 PE line connection according to EN 61800‑5‑1 Earth-leakage currents of ≥ 3.5 mA can occur during normal operation. Observe the following for reliable PE connection: • Supply system cable < 10 mm – Second PE conductor with the same cross section as the supply system cable routed parallel to the protective earth via separate terminals, or –... - Page 18 Installation Electrical connections 4.2.2 PE connection 14979704843 PE connection for power section PE connection for motor 4.2.3 X2: Motor connection NOTICE Damage to the didactics module due to overload. Damage to property. • Only connect one motor to the didactics module. Motor 0.55 kW max.
- Page 19 Installation Electrical connections 4.2.4 X3: Braking resistor (external or internal) WARNING Electric shock when disconnecting or connecting voltage-carrying jumpers. Severe or fatal injuries. • Disconnect all supply voltages. • Make sure that the device is de-energized. • Never disconnect or connect jumpers while they are carrying voltage. Braking resistor 8/+R 9/-R...
- Page 20 Installation Electrical connections WARNING Risk of burns due to hot surfaces. Braking resistors reach a temperature of up to 250 °C under load. Serious injuries. • Select a suitable installation location and observe the minimum clearance. • Provide for covers to secure hot surfaces. •...
- Page 21 Installation Electrical connections 4.2.6 X12: Digital inputs IN - 0 - IN DI 00 X12.1 DI 01 X12.2 DI 02 X12.3 DI 03 X12.4 DI 04 X12.5 DI 05 X12.6 Vo-TF 24V I /O X12.7 X12.8 X12.9 7710586891 DI 00: Digital input DI 00, factory set to "Fault reset" DI 01: Digital input DI 01, factory set to "CW/stop"...
- Page 22 Installation Electrical connections 4.2.7 X13: Digital outputs X13.1 DO 02 X13.2 DO 03 X13.3 X13.4 DO 01-CO X13.5 DO 01-NO X13.6 DO 01-NC X13.7 9007206966098059 GND: Reference potential DO 02: Digital output DO 02, factory set to ”Brake released" DO 03: Digital output DO 03, factory set to "Ready" GND: Reference potential Digital output signals can be picked off from the 4 mm terminals.
- Page 23 Installation Electrical connections Terminal Designation Permitted cable cross section 1 core per terminal: 0.75 – 1.5 mm (AWG21 – 15) Two cores per terminal: 0.75 – 1.0 mm (AWG21 – 17) Tightening torque • Min. 0.22 Nm • Max. 0.25 Nm Size Input ca- Min. Typ. Max. pacitance Safety-related 24 V voltage – –...
-
Page 24: Wiring Diagram
Installation Wiring diagram If you do not use a protection cover, insert a jumper between the upper 2 terminals. Wiring diagram 18014416401484683 ® Operating Instructions – MOVITRAC B Frequency Inverter Module (MCB 5A3) - Page 25 Startup Important information Startup Important information INFORMATION • Before startup, make sure that the product is not damaged. • Check that all protective covers are installed correctly. • Observe the documentation of components connected or mounted to the module (e.g. motor, inverter). WARNING Danger of electric shock due to open connections.
-
Page 26: Startup
Startup Requirement Requirement Correct project planning for the drive is a prerequisite for successful startup. Bear in mind the output voltage of the frequency inverter (e.g. 3‑phase/230 V) when selecting the motor. ® MOVITRAC B frequency inverters are factory set to be taken into operation with the SEW motor adapted to the correct power level (4‑pole, 50 ... - Page 27 Startup Startup using FBG11B keypad 2. Use parameter 800 to change from the short parameter menu (short) to the de- tailed parameter menu (long). ð The short menu is active by default after having reset the frequency inverter to delivery state. In the short menu, only a few parameters of the entire list are available for selection.
- Page 28 Startup Startup using FBG11B keypad 5.4.3 Factory settings Fault reset* DI00 CW/stop DI01 CCW/stop* DI02 Enable/stop* DI03 n11/n21* DI04 n13 = n11 + n12 n12/n22* DI05TF Supply voltage for TF/TH VOTF +24 V input/output 24VIO Ref. potential for digital signals DI 00 X12.1 X13.1...
-
Page 29: Operation
Operation Important information Operation Important information INFORMATION • Check that all protective covers are installed correctly. • Observe the documentation of components connected or mounted to the module (e.g. motor, inverter). WARNING Electric shock when disconnecting or connecting voltage-carrying plug connectors. Severe or fatal injuries. -
Page 30: Movitools Motionstudio
Operation MOVITOOLS MotionStudio MOVITOOL S M otionStud ® MOVITOOLS MotionStudio ® The MOVITOOLS MotionStudio program includes: • Parameter tree • Startup • SCOPE • Application Builder • Data management You can perform the following functions with the device: • Take it into operation •... -
Page 31: Service
Service Electronics Service by SEW‑EURODRIVE Service Electronics Service by SEW‑EURODRIVE If you are unable to rectify a fault, contact SEW‑EURODRIVE Service. For the ad- dresses, refer to www.sew‑eurodrive.com. When contacting the SEW‑EURODRIVE service, always specify the following informa- tion so that our service personnel can assist you more effectively: •... -
Page 32: Technical Data
Technical data Technical data ® MOVITRAC B frequency inverter module (MCB 5A3) Degree of protection IP20 Power supply connection 3-phase Connection voltage AC 400 V Line frequency 50 Hz Nominal output current 100% AC 2.0 A operation Weight Approx. 5.5 kg Dimensions W × H × D 420 mm ×... - Page 33 Technical data Devices and part numbers Inverter accessories • FBG11B keypad Part number: 18206352 • USB11A interface adapter Part number: 08248311 • FSC11B communication interface Part number: 18207162 • Fieldbus interface (optional) – PROFIBUS DFP21B Part number: 18235395 – PROFINET DFE32B Part number: 18235425 –...
-
Page 34: Standards And Certifications
Standards and certifications EC declaration of conformity Standards and certifications The SEW‑EURODRIVE components were developed and tested based on the latest, national standards and certifications. If special approvals are necessary for additional requirements, request them separ- ately from SEW‑EURODRIVE. EC declaration of conformity The EC declarations of conformity for the SEW components are listed on the website of SEW‑EURODRIVE with the respective products. -
Page 35: Address List
Address list Address list Germany Headquarters Bruchsal SEW-EURODRIVE GmbH & Co KG Tel. +49 7251 75-0 Production Ernst-Blickle-Straße 42 Fax +49 7251 75-1970 Sales 76646 Bruchsal http://www.sew-eurodrive.de sew@sew-eurodrive.de Production / Industrial Bruchsal SEW-EURODRIVE GmbH & Co KG Tel. +49 7251 75-0 Gears Christian-Pähr-Str. -
Page 36: Index
Index Index Assembly Hazard symbols Safety notes ............. 9 Meaning............ 5 Braking resistor ........... 14 Inputs Flat design............ 14 Connection .......... 20, 21 Factory settings .......... 28 Installation ............ 16 Certifications............ 34 connection Electrical............ 17 LEDs.............. 29 Safety notes ............. 9 Copyright notice ............ -
Page 37: Operating Instructions – Movitrac ® B Frequency Inverter Module (Mcb 5A3)
Index Operation............ 29 Trademarks ............ 7 Preliminary information........ 8 Transport ............... 9 Startup............ 25 Structure of embedded........ 6 USB11A interface adapter........ 13 Structure of the section-related ...... 5 Use ................ 8 Section-related safety notes ........ 5 Service .............. 31 Signal words in safety notes........ 5 Waste disposal ............ - Page 40 SEW-EURODRIVE—Driving the world SEW-EURODRIVE GmbH & Co KG Ernst-Blickle-Str. 42 76646 BRUCHSAL GERMANY Tel. +49 7251 75-0 Fax +49 7251 75-1970 sew@sew-eurodrive.com www.sew-eurodrive.com...
