Log Set Assembly: LOGS-I30FB
Models: ESCAPE-I30-C, ESCAPE-I30FB, ESCAPE-I30-F, ESCAPE-30-IFT
CAUTION: Logs are fragile, handle with care.
1
5
3

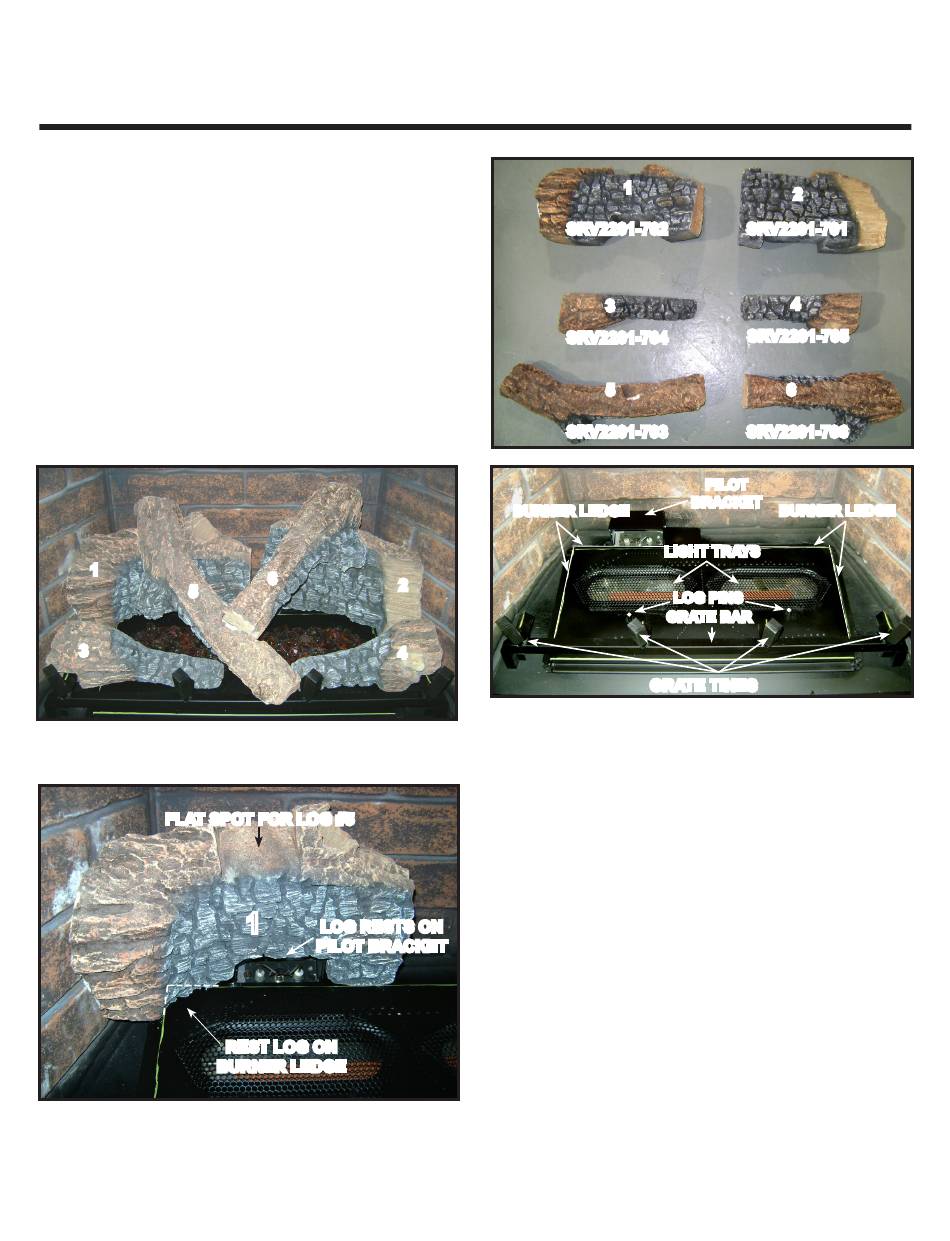

Figure 1. Log Set Installed
FLAT SPOT FOR LOG #5
BURNER LEDGE
Figure 3. Log #1
Log #1 (SRV2201-702): See Figure 2 for additional references. Position Log #1 as shown in Figure 3. Rest the left and
right ends of Log #1 on the burner ledge. The pilot bracket will support the center of the log.
6
2
4
1
LOG RESTS ON
PILOT BRACKET
REST LOG ON
Heat & Glo • LOGS-I30FB Log Instructions • 2201-935 Rev. G • 5/18
LOG PLACEMENT INSTRUCTIONS
1
SRV2201-702
3
SRV2201-704
5
SRV2201-703
BURNER LEDGE
LIGHT TRAYS
GRATE BAR
GRATE TINES
Figure 2. Reference Points
2
SRV2201-701
4
SRV2201-705
6
SRV2201-706
PILOT
BRACKET
BURNER LEDGE
LOG PINS
1
