ASSEMBLY INSTRUCTIONS
•

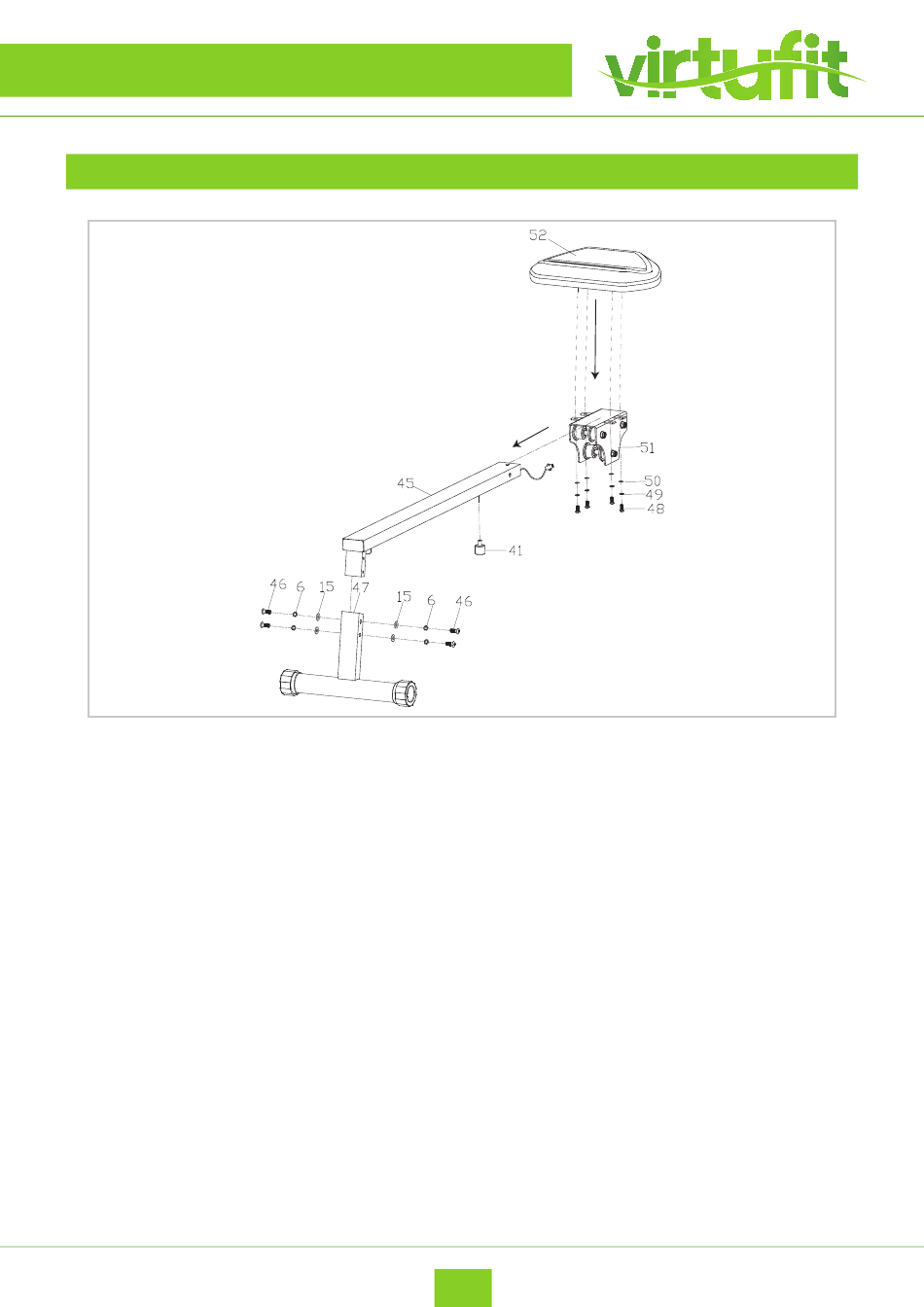

Attach the saddle (52) to the saddle frame (51) with the screw (48) spring washers (49) and flat
washers (50).
•
Attach the rear support frame (47) to the rail frame (45) with the screw (46) spring washers (6) and
flat rings (15).
•
First remove the cushion (41) and then install the seat post (51) on the rail frame (45). Attach the
cushion (41) finally on rail frame (45).
VirtuFit Row 1.0 Rowing Machine
STEP 4
EN
10
