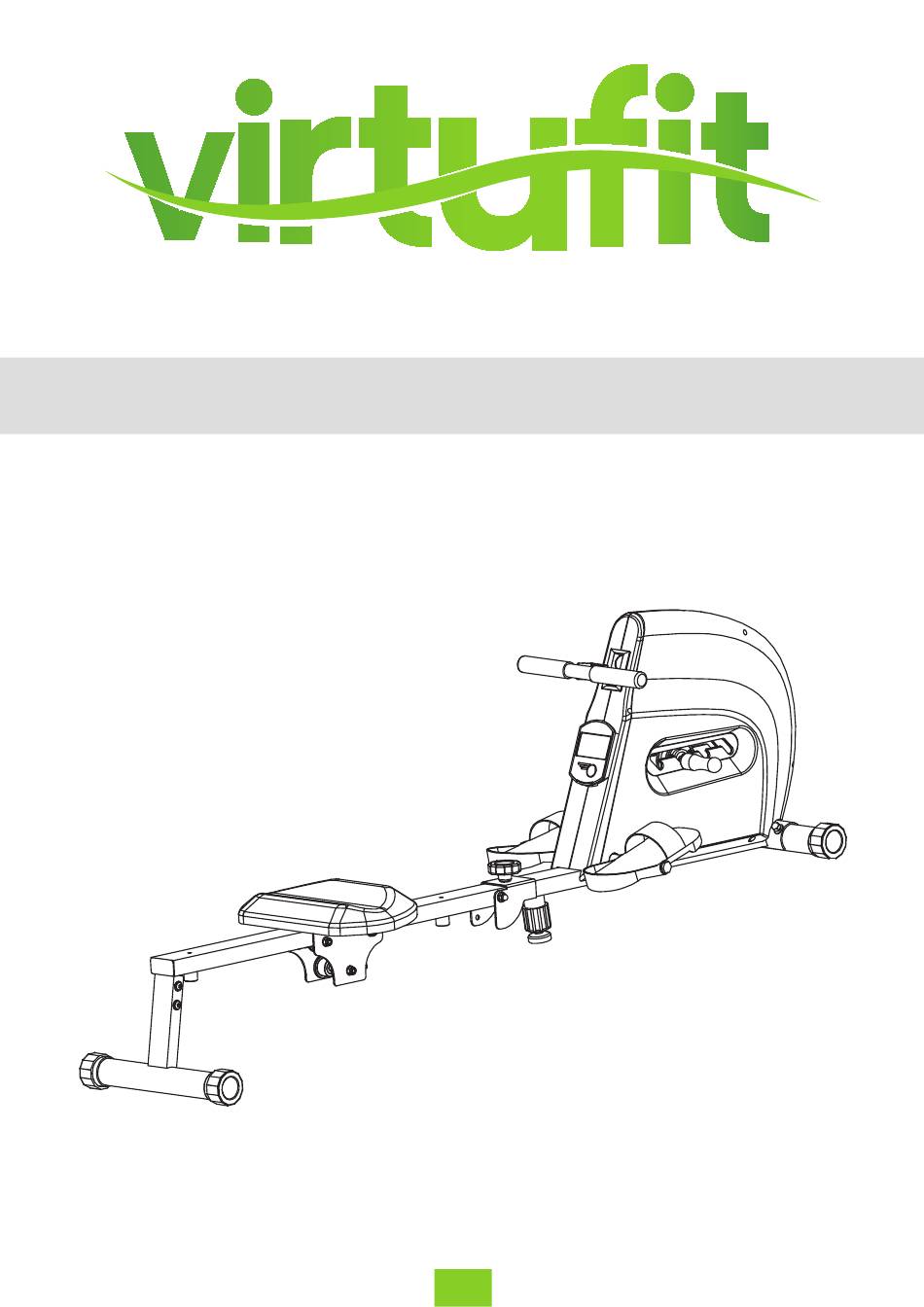

  • Page 1 Row 1.0 Rowing Machine User Manual...

  • Page 2: Table Of Contents

    INDEX 3 - 4 SAFETY INSTRUCTIONS 5 - 6 CHECKLIST 7 - 12 ASSEMBLY INSTRUCTIONS FOLDING INSTRUCTIONS 14 -15 MAINTENANCE TROUBLE SHOOTING 17 - 18 CONTROL PANEL EXPLODED DRAWING PARTS LIST TRAINING INSTRUCTIONS VirtuFit Row 1.0 Rowing Machine...

  • Page 3: Safety Instructions

    – Always use the equipment as indicated. If you find any defective components while assembling or checking the equipment, or if you hear any unusual noises coming from the equipment during use, stop immediately. Do not use the equipment until the problem has been rectified. VirtuFit Row 1.0 Rowing Machine...
  • Page 4 Maintenance assembly and repair work not carried out by an official dealer. • In the event of improper use, neglect and / or poor maintenance. • Failure to maintain the fitness equipment in accordance with the manufacturer’s instructions (see the enclosed manual). VirtuFit Row 1.0 Rowing Machine...

  • Page 5: Checklist

    CHECKLIST TOOLKIT When you open the carton, you will find the below parts in the carton. 10 (2x) 22 (2x) VirtuFit Row 1.0 Rowing Machine...

  • Page 6: Checklist

    CHECKLIST TOOLKIT VirtuFit Row 1.0 Rowing Machine...

  • Page 7: Assembly Instructions

    Socket screws: The rowing machine contains socket screws, make sure that the allen key is firmly in the bolt before you apply force to the key. In this way you prevent the head of the socket head screw from being rotated. STEP 1 • Attach the handlebar (22) to the axle (24). VirtuFit Row 1.0 Rowing Machine...
  • Page 8 Attach the front stabilizer (2) to the main frame (1) with the bolt (4), washer (5), spring washer (6) and nut (7). • Mount the adjustable cushion (40) on the main frame (1). Set to the appropriate position to the rail frame (45). VirtuFit Row 1.0 Rowing Machine...
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 3 • Attach the pedals (10) to the main frame (1) with the bolts (8) and the flat washers (9). VirtuFit Row 1.0 Rowing Machine...
  • Page 10 Attach the rear support frame (47) to the rail frame (45) with the screw (46) spring washers (6) and flat rings (15). • First remove the cushion (41) and then install the seat post (51) on the rail frame (45). Attach the cushion (41) finally on rail frame (45). VirtuFit Row 1.0 Rowing Machine...
  • Page 11 Attach the rail frame (45) to the main frame (1) with the bolts (34), washers (37) and nuts (38). • Then attach the bolt (33) and the flat washer (15) to the main frame (1). VirtuFit Row 1.0 Rowing Machine...
  • Page 12 The machine is the most stable when all support feet are turned fully in. Therefore start to level the machine by turning all support feet fully in, before turning out the required support feet to stable the machine. VirtuFit Row 1.0 Rowing Machine...

  • Page 13: Folding Instructions

    (33) with flat washer (15). UNFOLDING Unscrew the locking pin (33), then remove the locking pin and flat washer (15), at the same time unfold the rails towards the ground. Replace the locking pin (33) with flat washer (15). VirtuFit Row 1.0 Rowing Machine...

  • Page 14: Maintenance

    NOTE: You should begin your “Exercise Period” at the resistance level and speed to suit your needs. Remember to start out slow and easy, and work your way up to the fitness level you desire. VirtuFit Row 1.0 Rowing Machine...
  • Page 15 5. A change of batteries is necessary when the display becomes weaker or completely faded. CHANGING THE BATTERIES 1. If you see an improper display on the monitor, please replace the batteries to have a good result. 2. Please use 2pcs of 1.5v AA batteries as a power supply. VirtuFit Row 1.0 Rowing Machine...

  • Page 16: Trouble Shooting

    If this still does not work, you can move the sensor slightly. Rowing machine beeps Check that all bolts and nuts are tightened securely. Spray silicone spray if necessary. Also check the wheels under the seat. VirtuFit Row 1.0 Rowing Machine...

  • Page 17: Control Panel

    Do not lean on the console. Only touch the display with the tip of your finger. Make sure that your nails or sharp objects do not touch the display. CONSOLE BUTTON FUNCTION MODE Press Mode/ Reset button to select console functions. VirtuFit Row 1.0 Rowing Machine...

  • Page 18: Control Panel

    Without any signal being transmitted into the monitor for 4 minutes the monitor OFF & AUTO will enter SLEEP mode automatically. Active training data will be lost. When you START/STOP start rowing or press the button, the monitor is working again. VirtuFit Row 1.0 Rowing Machine...

  • Page 19: Exploded Drawing

    EXPLODED DRAWING VirtuFit Row 1.0 Rowing Machine...

  • Page 20: Parts List

    Idler wheel Bolt M6*15 Fixed sleeve Spring washer D6 Nulon nut M8 Flat washer D6 Handlebar Saddle post End cap Saddle Axle M10*φ12*95 Bolt M8*90 Bearing φ32*φ12*11 Wheel Wheel Bushing φ12*φ8*20 U-shaped washer Bearing Rope lock VirtuFit Row 1.0 Rowing Machine...

  • Page 21: Training Instructions

    The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit Row 1.0 Rowing Machine...
  • Page 22 For questions or missing parts please contact your dealer.
