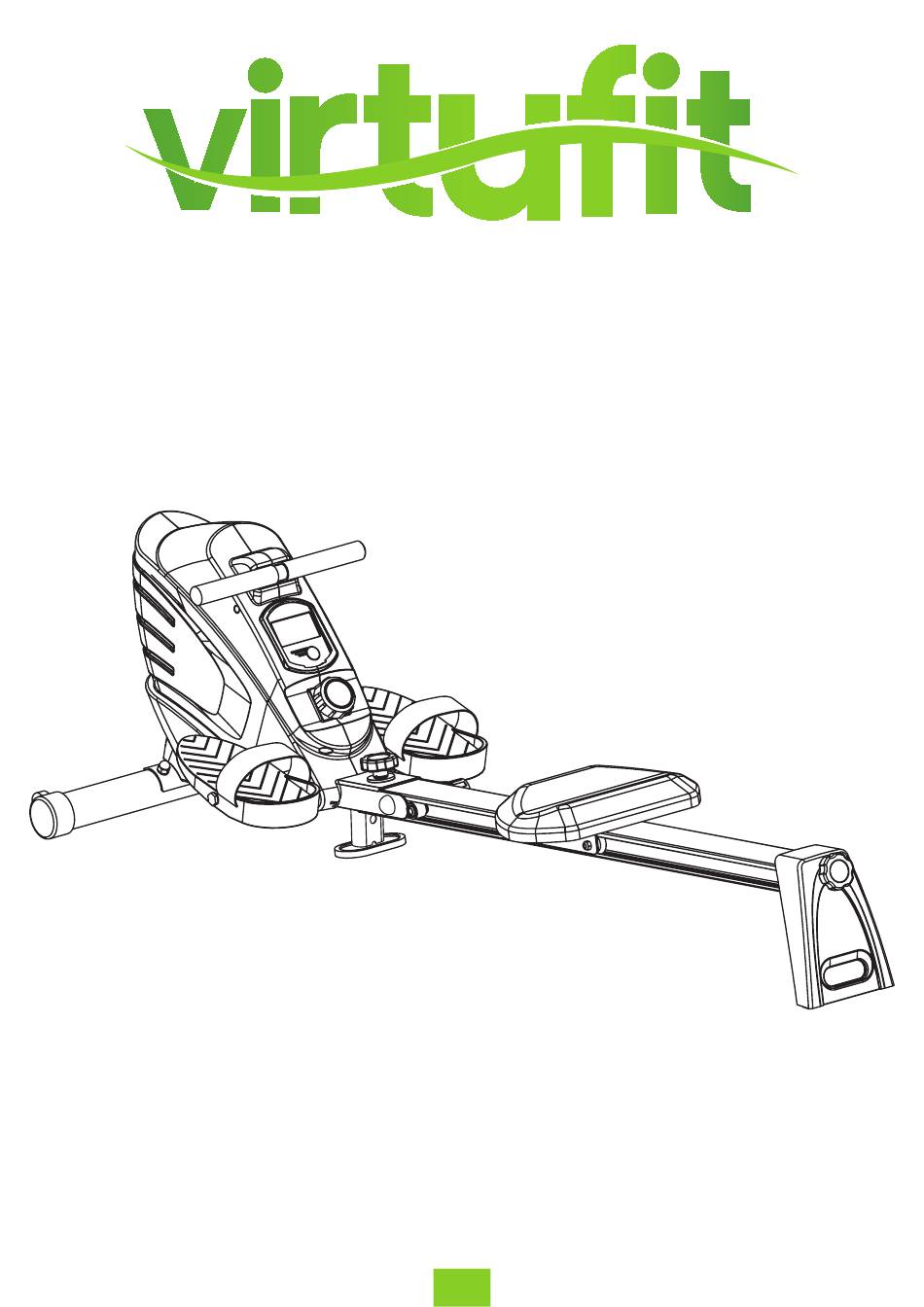

- Page 1 VirtuFit Row 450 Rowing Machine User manual VirtuFit Row 450 Rowing Machine...
-
Page 2: Table Of Contents
INDEX Safety instructions Assembly instructions Maintenance rower Problem solutions Control panel 10-12 Training instructions Exploded drawing Parts list 15-16 VirtuFit Row 450 Rowing Machine... -
Page 3: Safety Instructions
35 old or people with health problems. VirtuFit takes no responsibility for injuries or material damage caused by the use of this product. Read this manual carefully before you start assembling the rowing machine and / or using it. -
Page 4: Assembly Instructions
1. Remove the paper tube A ,carriage bolt (30), arc washer (31), and cap nut (32) from the . front bottom tube (33) ; 2. Tighten the front bottom tube (33) to the mainframe (1) with carriage bolt (30), arc washer (31), and cap nut (32). VirtuFit Row 450 Rowing Machine... - Page 5 Tighten the stand rail (29) to the Slide way (22) with Hexagon bolt (25), Flat washer (8), Nylon nut (16). Then tighten the protective guard (28) to the Stand rail (29) with Cross pan bolt (27), lock the Stand rail (29) to the L-shape connection strap (78) with Knob (2). VirtuFit Row 450 Rowing Machine...
- Page 6 (1) with hexagon bolt (14) 、Flat washer (8) 、Nylon nut (9) and put the cap (70).At last lock it by Knob (2) and Flat washer (35). Tighten the pedal (11) to the mainframe (1) with bolt (12) 、flat washer (10). When folding it, take off the knob (15) and fold the slide way (22). VirtuFit Row 450 Rowing Machine...
-
Page 7: Assembly Instructions
The Rowing machine could be folded if you do not use it. First take off the knob (15), and the knob (2), flat washer (35), then fold the slide way (22) and protective guard (28) as the diagram show. Fix the mainframe (1) to the protective guard (28) with knob (2) and flat washer (35). VirtuFit Row 450 Rowing Machine... - Page 8 Check that the rail and the wheels under the seat are free from dust and dirt. SEMI-ANNUAL MAINTENANCE Inspect all bolts and nuts in connection with moving parts of the device, tighten as required. Check the mobility of moving parts and components of the use equipment, silicone spray if necessary. VirtuFit Row 450 Rowing Machine...
-
Page 9: Problem Solutions
If this still does not work, you can move the sensor slightly. Rowing machine beeps Check that all bolts and nuts are tightened securely. Spray silicone spray if necessary. Also check the wheels under the seat. VirtuFit Row 450 Rowing Machine... -
Page 10: Control Panel
CONTROL PANEL LOOPBAND AFSTELLEN DISPLAY FUNCTIONS BUTTON FUNCTION EXPLAINING Push down to select functions. Push down and hold for 2 seconds to reset all MODE functional value. VirtuFit Row 450 Rowing Machine... - Page 11 Display current rowing strokes per minute, or the frequency per minute. 7. AUTO ON/OFF & Without any signal for 4 minutes, the power will turn off automatically. When the AUTO START/STOP stroke is in motion or pressing the button, the monitor is in action. VirtuFit Row 450 Rowing Machine...
-
Page 12: Control Panel
TOTAL COUNT 0 ~ 9999 COUNT / MIN 0 ~ 1200 CALORIES 0 ~ 9999 Kcal BATTERY TYPE 2 x AA OPERATING TEMPERATURE 0 ºC + 40 ºC STORAGE TEMPERATURE -10 ºC ~ +60 ºC VirtuFit Row 450 Rowing Machine... -
Page 13: Training Instructions
The purpose of cooling down is to return the body to its normal or near normal, resting state at the end of each exercise session. A proper cool-down slowly lowers your heart rate and allows blood to return to the heart. VirtuFit Row 450 Rowing Machine... -
Page 14: Exploded Drawing
EXPLODED DRAWING VirtuFit Row 450 Rowing Machine... -
Page 15: Parts List
Arc washer D6 Cross pan bolt M6*12 Flat washer D6x1.0xΦ12 Cross pan bolt ST4.2*8 Pulley Protect guard Screw ST4.2x18 Stand rail L/R chain cover Carriage bolt M8*73 Bolt M10*1.0 Arc washer d8x2xΦ25xR30.5 Hexagon bolt M10*1.0 VirtuFit Row 450 Rowing Machine... -
Page 16: Parts List
PARTS LIST Description Description Flywheel axis Rubber pad Spring Over lay Axle Washers D10 Stay pipe Eel shaft Washers D12 Bolt M8x10 Screw ST3.5*18 Bearing 6001Z Rotary table cover Supporting stand Cap S17 L-shape connection strap VirtuFit Row 450 Rowing Machine... - Page 17 For questions or missing parts please contact your dealer...
