Display Assembly - HP EliteBook x360 830 G5 Maintenance And Service Manual

Display assembly

Table 6-1 Display assembly descriptions and part numbers
Description
Display assembly, 220 nits
Display assembly, 220 nits, WWAN
Display assembly, 400 nits
Display assembly, 400 nits, WWAN
Display assembly, 400 nits, WWAN, anti glare
Display assembly, 1000 nits, BrightView, WWAN, privacy
Display assembly, 1000 nits, BrightView, privacy
Display assembly, 1000 nits, WWAN, anti glare, privacy
Before removing the display assembly, follow these steps:
1.
Prepare the computer for disassembly
2.
Remove the bottom cover (see
3.
Disconnect the battery (see
Remove the display assembly:

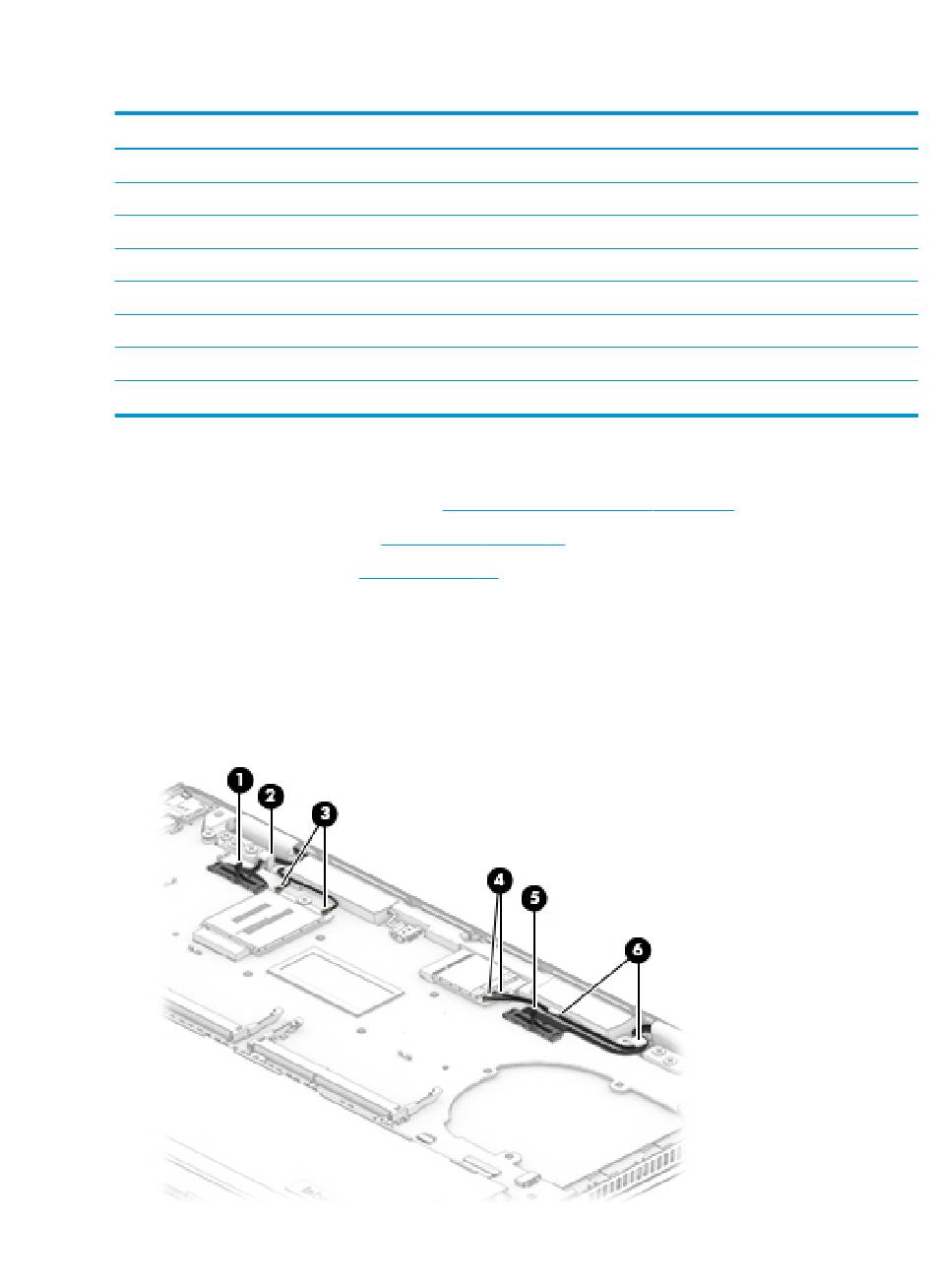

1. Disconnect the webcam cable from the system board (1), and then remove the cable from the clip (2).
2. Disconnect the WWAN antenna cables from the WWAN module (3).
3. Disconnect the WLAN antenna cables from the WLAN module (4).
4. Disconnect the display cable from the system board (5), and then remove the cable from the clips (6).
(Preparation for disassembly on page
Bottom cover on page
Battery on page 33).
42).
31).
Component replacement procedures
Spare part number
L56434-001
L56435-001
L56436-001
L56437-001
L56438-001
L56439-001
L56440-001
L56441-001
43
