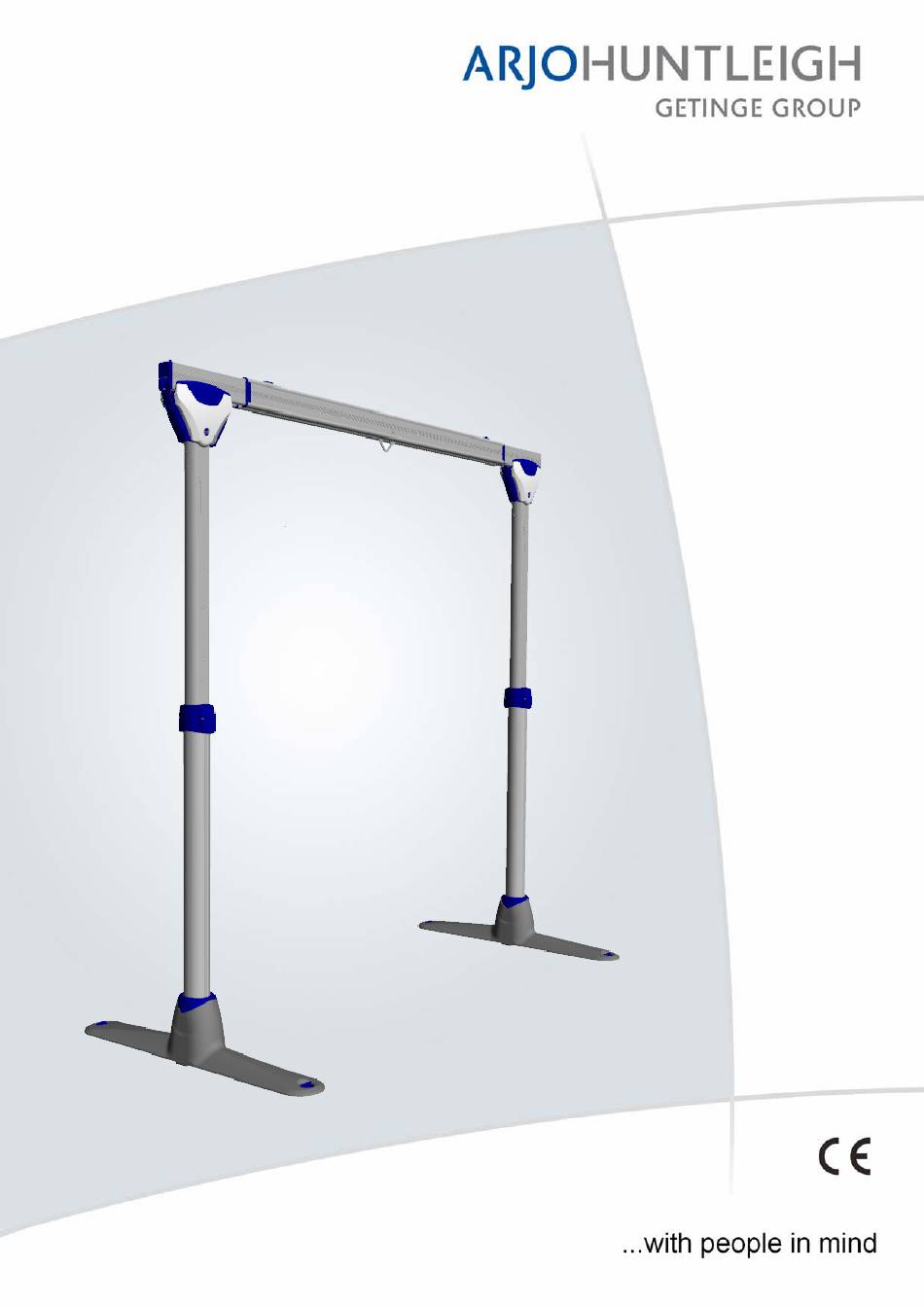

- Page 1 EASYTRACK FS MODEL №: 9720010 Instruction for Use 001.17300.EN rev. 6 • December 2013...
- Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © ArjoHuntleigh 2013. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The content of this publication may not be copied either whole or in part without the...
-
Page 3: Table Of Contents
Table of Contents Foreword ............................1 Thank you for choosing ArjoHuntleigh products..................1 Please Read this Manual Thoroughly! ..................... 1 Service and Support ..........................1 Manufacturer Information ......................... 1 Definitions Used in this Manual ....................... 1 Safety Instructions ........................2 Intended Use ............................2 Operational Life ............................ -
Page 5: Foreword
The information in this manual is crucial to the proper maintenance • Need replacement parts. EASYTRACK FS. It will help protect your Your ArjoHuntleigh vendor can offer support product as well as ensure that it performs to and service programs to maximize the long- your satisfaction. -
Page 6: Safety Instructions
Keep this manual handy and refer to it as must be avoided. required. Make sure that all operators are The EASYTRACK FS must only be used for regularly trained in the use of the product as per the purposes stated above. -
Page 7: Important Safety Instructions
Important Safety Instructions Homecare Environment Considerations Before installing or using the EASYTRACK FS always ensure to comply with following safety instructions. WARNING: The EASYTRACK FS is not intended to be operated by children. Serious • Carefully inspect product upon arrival. If injuries could occur. -
Page 8: Symbols Used
Symbols Used General Symbols Manufacturer’s name and address. May also point out manufacturing date. Product complies with the medical device directive 93 / 4 2 / E EC. ISO 15223 3.15 Points out the manufacturer’s catalogue number. -
Page 9: Product Description / Labels
FS Logo 001.17070 Anti-slip Sticker 001.17040 Red Markers - Do not use the EASYTRACK FS when any of the following marker is visible Visible when inner track is extended beyond maximum usage lenght 001.17000 Visible when collar clip is unlocked 001.17030... -
Page 10: Easytrack Fs System Requirements
Floor Requirements: CAUTION: If you are unsure of the strength or stability of the floor – do not install the EASYTRACK FS System – consult your local ArjoHuntleigh agent. • Flooring must comply to local building code standards. WARNING: Termites or water damages may affect the structure of the floor. -
Page 11: Room Assessment
Room Assessment Before installing the EASYTRACK FS prepare the installation as follows: 1) Survey the room where you plan to install the EASYTRACK FS system. • Make sure the room meets all the specifications outlined 915 - 1020 mm in “EASYTRACK FS System Requirements” section. -
Page 12: Assembling The Easytrack Fs
Assembling the EASYTRACK FS Step 1. Post to Base Assembly Step 2. Installation of the Track 1) Prior to track installation, unlock the hook NOTE: The assembly can be performed by handle by pressing on the safety latch and one person. Perhaps, we recommend to be pulling outward (located on the blue colour assisted for increased safety. -
Page 13: Step 3. Track Width Adjustment
Fig. 1 6 transportation slot. If it does not, shake the trolley lightly left and right to release it. Trolley should move freely at this point. NOTE: This step can also be done after adjusting the height. Assembling the EASYTRACK FS... -
Page 14: Retracting The Posts
(2) then lower the post to desired with the floor. height (3). Levellers Gliders Fig. 1 8 Your EASYTRACK FS is now ready to be used with your ArjoHuntleigh portable lift (not included). Fig. 1 7 Disassembling the EASYTRACK FS To disassemble the EASYTRACK FS reverse 4) Unlatch the hook handles to release the the assembly sequence. -
Page 15: Care And Maintenance
Care and Maintenance Preventive Maintenance Schedule The EASYTRACK FS is subject to wear and tear, and the following actions must be performed when specified to ensure that the product remains within its original manufacturing specification. WARNING: The points on this checklist are the minimum the manufacturer recommends. In some EASYTRACK FS cases more frequent inspections should be carried out. -
Page 16: Troubleshooting
Trolley moves substantially on its own when the • Is the floor levelled? Easytrack FS system is • Is the track secured to the posts? Press up on the track to fully assembled. make sure that it is correctly fixed onto posts. -
Page 17: Technical Specifications
Max. safe working load 200 kg (440 lb) Extendable Track Length: 2210 - 3230 mm (87 - 127”) Range Post length: 1830 - 2406 mm, (72 - 94 1/2”) Material Aluminium RECYCLING Package Cardboard recyclable The EASYTRACK FS Separated and recycled Dimensions Fig. 1 9 Technical Specifications... - Page 19 AUSTRALIA FRANCE POLSKA ArjoHuntleigh Pty Ltd ArjoHuntleigh SAS ArjoHuntleigh Polska Sp. z o.o. 78, Forsyth street 2 Avenue Alcide de Gasperi ul. Ks Piotra Wawrzyniaka 2 O’Connor CS 70133 PL 62-052 KOMORNIKI (Poznan) AU-6163 Western Australia 59436 RONCQ CEDEX Tel: +48 61 662 15 50 Tel: +61 89337 4111 Tél: +33 (0) 3 20 28 13 13...
- Page 20 GETINGE GROUP is a leading global provider of products and systems that contribute to quality enhancement and cost efficiency within healthcare and life sciences. We operate under the three brands of ArjoHuntleigh, GETINGE and MAQUET. ArjoHuntleigh focuses on patient mobility and wound management solutions.
