Installation

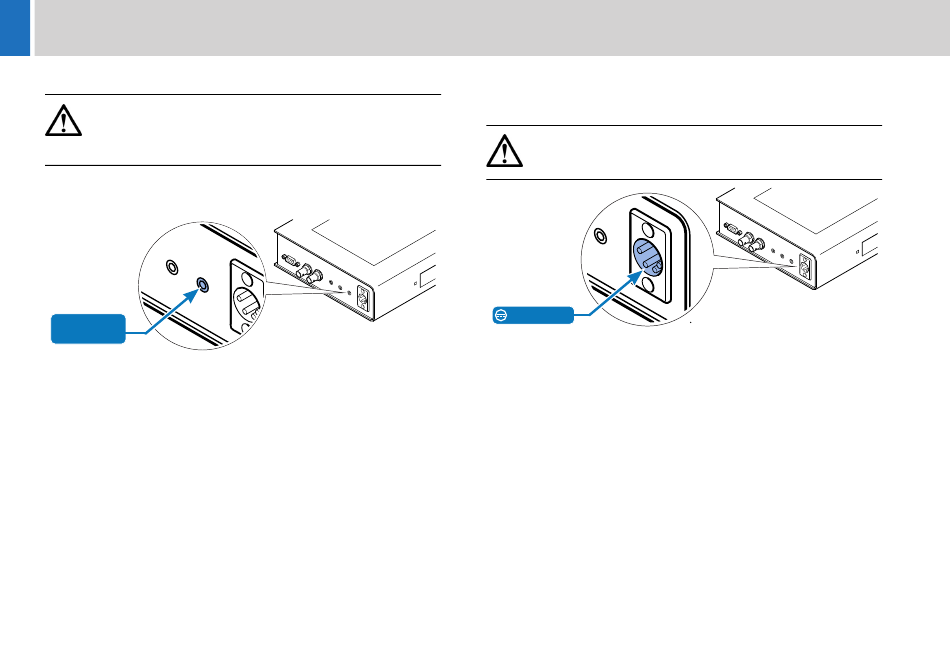

Accessory DC Connection
CAUTION! The accessory DC out socket is intended for
use with approved Autoscript accessories only. Do not
exceed the current output limit of the product when
powering auxiliary devices.
Provides a 12V DC supply to operate external accessories such as the
Autoscript TallyPlus.
Accessory
12V DC Out
For more information on the specifications of the accessory sockets,
see the section Connections Data on page 22.
16
Power Connection
DC Power Connection
CAUTION! When powering the product on DC power, use a
regulated 12V DC power source capable of supplying at
least 3A.
12V DC IN
Powering Up
Before powering up, ensure that all external cable connections have
been secured correctly.
To power up, apply power to the 12V DC IN socket. If power is present,
the prompter monitor and tally light will illuminate.
