Cable Management; Powering Up; Led Status - Autoscript XBox-IP Installation Manual

Cable Management

Ensure all cables are securely attached to prevent them being
accidentally disconnected during use.
WARNING! Always ensure that all power and auxiliary
!
communications cables are routed so that they do not
present any danger to personnel. Take care when routing
cables in areas where robotic equipment is in use.

Powering Up

There are two options to supply power to the XBox-IP:
Power supplied over Ethernet (PoE) using an RJ45 cable with a
suitable power injector. (Not supplied).
Or
A 12Vdc external power supply. (Not supplied).
PoE connection:
PoE
1.
Ensure a suitable PoE injector solution is in place.
2.
Plug the PoE cable into the RJ45 Power over Ethernet input.
3.
The XBox-IP will power up.
12V
DC power supply.
DC
1.
Ensure a power supply of the correct specification is used (see
power supply specifications on page 6).
2.
Connect the power supply to the 12 V DC axillary port.
3.
The XBox-IP will power up

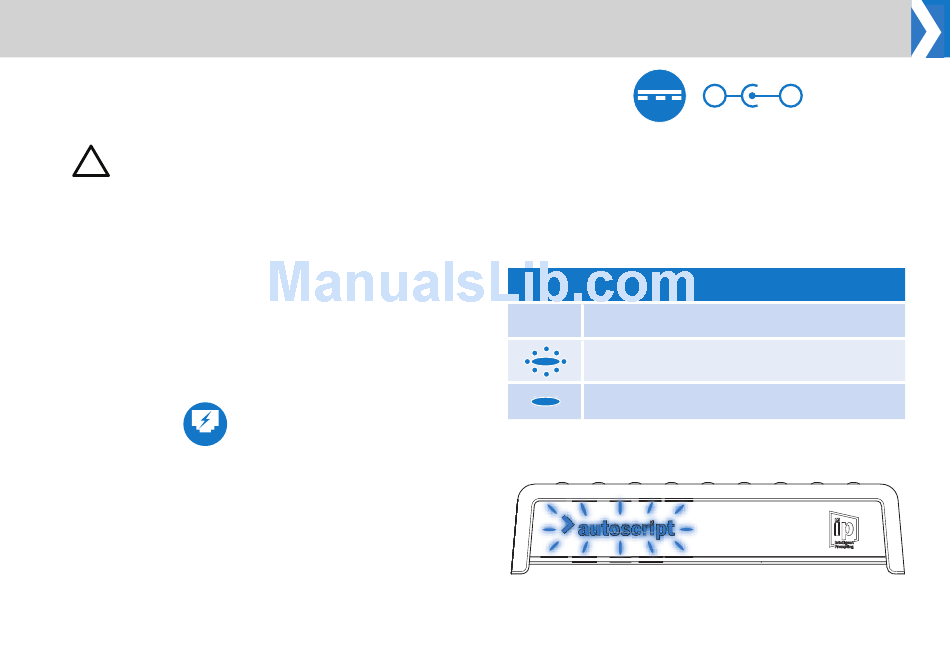

LED Status

Status LED
No light: No power connection
Status LED flashing: Powered on, network
connected, no connection to WinPlus-IP.
Solid BLUE light: Powered on, connected to the
network and WinPlus-IP.
Installation
- +
9
