Setup and Calibration

Assembly

When you receive the Nimbus 1800 VTOL PNP combo, almost all components are installed, but there are
still a few connections to be done before flight.
- Connect the V tail.
- Connect the left and right wings.
- Connect the airspeed sensor.
- Connect the datalink antennas.
- Connect the receiver antennas.
- Connect the propellers.
- Place the battery on the board.
- Connect the nose.

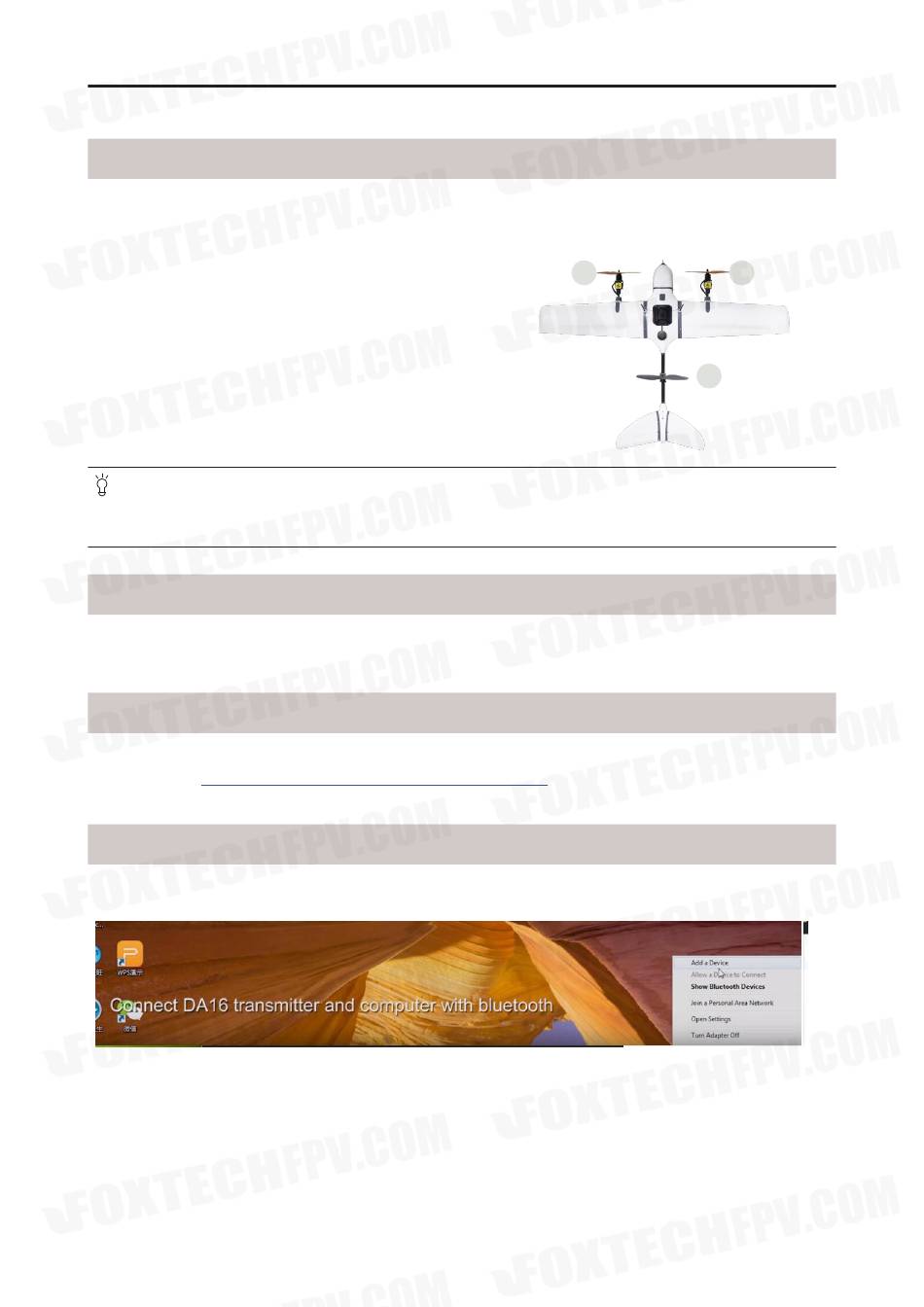

1. Pay attention to the directions of propellers. (Refer to the above diagram)
2. If your purchase include a mapping camera, install the camera and power it on. If there is a
sound"crack", It means the mapping camera works fine.

Check Radio Control

1.Install the extension antennas if your purchase include it.
2.Check channels on the transmitter.

Download Mission Planner

Download the latest Mission planner online or copy it from the SD card.
Download link: http://firmware.ardupilot.org/Tools/MissionPlanner/

Connect Baby Shark to Computer

1. Connect DA16S transmitter and computer with bluetooth.
FOXTECH Nimbus VTOL V2(DA16S Combo)
CCW
(View From the Front)
2019 FOXTECH All Rights Reserved
©
User Manual
CW
(View From the Front)
CW
(Overlook)
4
