FOXTECH HOBBY Co., Ltd
★★★★★★★
★★★★★★★
KRAKEN 130 Assembly Manual

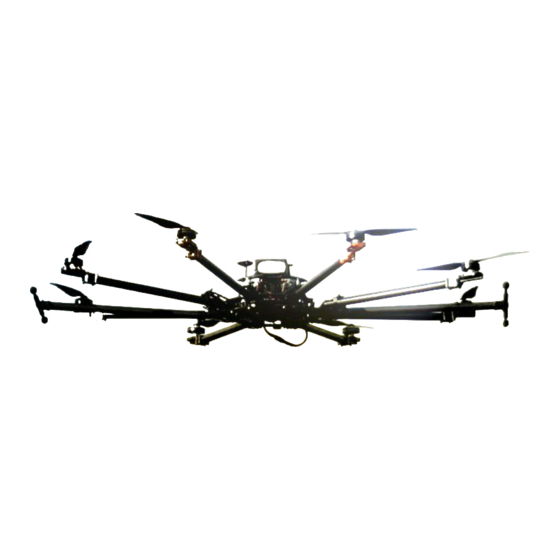

FOXTECH Kraken 130(K130) is designed and manufactured by Foxtech Hobby Co.,ltd.
The K130 is specifically designed for heavy lift operations, it is equipped with powerful motors and
high efficiency 18inch CF propeller which generates crazy lifting capacity (20KG flying weight)and
very long fly time(over 50 minutes with enough battery).
The K130 is an ultimate aerial photography or video platform when combined with GH3/5DII/5DIII
/BMCC /Red-epic gimbals.
The unique Easy-folding system and automatic folding landing gear allow for a quick set up and
immediating launching at job site.
www.foxtechfpv.com
V1.0
1 / 16
Advertisement
Related Manuals for Foxtech KRAKEN 130
Summary of Contents for Foxtech KRAKEN 130
- Page 1 ★★★★★★★ KRAKEN 130 Assembly Manual FOXTECH Kraken 130(K130) is designed and manufactured by Foxtech Hobby Co.,ltd. The K130 is specifically designed for heavy lift operations, it is equipped with powerful motors and high efficiency 18inch CF propeller which generates crazy lifting capacity (20KG flying weight)and very long fly time(over 50 minutes with enough battery).
-
Page 2: Specifications
All manuals and user guides at all-guides.com Specifications 1750mm(18" propeller mounted) Width 500mm(Landing gear skid) Length 1750mm(18" propeller mounted) 520mm(18" propeller mounted) Heigth 400mm(Centeral damper plate to ground) Diagonal wheel 1270mm 600mm*500mm*420mm Carry size 830mm*500mm*420mm(18" propeller mounted) Battery mount seat 220mm*220mm Frame arm length 500mm... - Page 3 All manuals and user guides at all-guides.com 1. Frame Arm Assembly And Installation Step 1 Step 3 / 16...
- Page 4 All manuals and user guides at all-guides.com Step 3 Step 4 4 / 16...
- Page 5 All manuals and user guides at all-guides.com Step 5 Step 6 5 / 16...
- Page 6 All manuals and user guides at all-guides.com Step 7 -Please repeat Step1 to Step 7 to assembly other Frame Arms. Step 8 6 / 16...
- Page 7 All manuals and user guides at all-guides.com Step 9 Step 10 7 / 16...
- Page 8 All manuals and user guides at all-guides.com 2. Landing Gear Assembly And Installation Step1 Step 2 8 / 16...
- Page 9 All manuals and user guides at all-guides.com Step 3 Step 4 9 / 16...
- Page 10 All manuals and user guides at all-guides.com 3. Electronic Equipments Installation Multi-rotor Mixied Type：Octo-rotor V(Very Important!) Landing Gear Operation Voltage: 4.8-6V Electronic Equipments Connection 10 / 16...
- Page 11 All manuals and user guides at all-guides.com Step 1 Step 2 11 / 16...
- Page 12 All manuals and user guides at all-guides.com Step 3 4. Propeller Installation Step 1 12 / 16...
- Page 13 All manuals and user guides at all-guides.com Step 2 Step 3 13 / 16...
- Page 14 All manuals and user guides at all-guides.com 5. Electronic Devices Setting Suggested: Radio: Futaba 14SG + SB7008 SBUS F.mode: CH5 Gain: CH6 Landing Gear: CH9 WKM: Receiver Type: D-BUS Gain Basic: Pitch 200%/Roll 200%/Yaw 200%/Vertical 100% Gain Attitude: Pitch 140%/Roll 140% Voltage Protection Swith: OFF Landing Voltage: 3.5V/Cell 14 / 16...
- Page 15 All manuals and user guides at all-guides.com MEMO - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -...
- Page 16 All manuals and user guides at all-guides.com For more info ,please visit www.foxtechfpv.com to check more of our amazing products. Pls forgive that if any change of products will not make additional specify in advance. Feb,18,2014 16 / 16...
