- Page 1 FOXTECH GAIA 160MP User Manual 2021.04 V1.0...
-
Page 2: Table Of Contents
FOXTECH GAIA 160MP User Manual Contents Product Profile Introduction Specifications System Components Installation Overview Start the Installation A3 Functions Compass Calibration Flight Functions Protection Functions Flight Control System Checklist Hardware Checklist DJI Assistant 2 Checklist Appendix LED Indicators Troubleshooting 2021 FOXTECH All Rights Reserved ©... -
Page 3: Product Profile

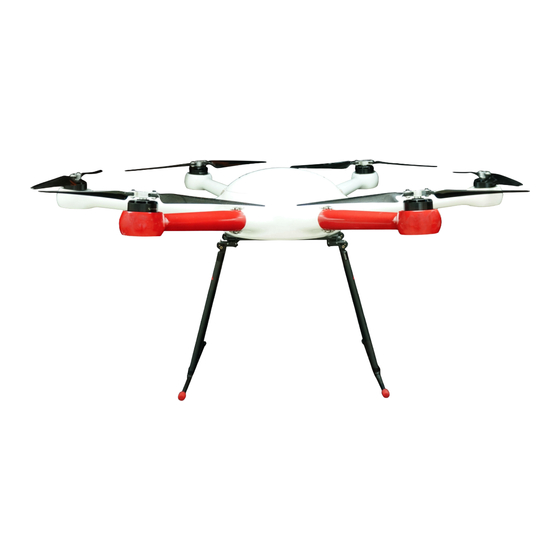

GAIA 160MP is made of carbon fiber material which features light weight and high strength, and only the cover is made of glass fiber.The arm of GAIA 160MP is pluggable, it can be locked with the quick locking hooks. This detachable design makes it easy to transport and quick to setup. GAIA 160MP... -
Page 4: Specifications
Max Flying Speed 4x 6s 16000mah Lipo Battery 5m/s Max Lifting Speed 4m/s Max Descent Speed W500m Suggested Flight Altitude Working -10 +55 °C Temperature Vertical Direction ±0. 5m, Horizontal Direction: ± 1.5m Hover Precision 2021 FOXTECH All Rights Reserved ©... -
Page 5: System Components
Communicates with the LED module. 9.IMU2 Port Communicates with the IMU Pro module. 10.PMU Port Derives power from the PMU. 11.CAN2 Communicates with an SDK device. 12.API Port Communicates with an Onboard SDK device. 2021 FOXTECH All Rights Reserved ©... - Page 6 B.In addition, there is a Micro USB port for firmware upgrades via DJI Assistant 2. 1.Flight Status Indicator Indicates the status of the flight control system. 2.Micro USB Port Used to configure and upgrade the A3 or A3 Pro via DJI Assistant 2. 2021 FOXTECH All Rights Reserved ©...
- Page 7 The IMU Pro module should be mounted with the arrow pointing to the specified orientation (Orientation can be set in the DJI Assistant 2). 2.Status Indicator Indicates the status of the IMU Pro module and triple 2 modular redundancy system. 3.CAN1 GPS Port Communicates with the GPS-Compass Pro module. 2021 FOXTECH All Rights Reserved ©...
-
Page 8: Installation
① Ensure all parts are in good condition. ② Select the A3 connection. ③ Mount the FC parts to GAIA 160MP and connect them properly. ④ Launch the DJI Assistant 2 and configure the parameters. ⑤ Ensure the motor, remote controller channels and Failsafe settings are correct. -
Page 9: Start The Installation
3.The compass is sensitive to magnetic interference. Always keep the compass module away from magnetic fields. Otherwise, the compass module may become damaged and lead the aircraft to work abnormally or even lose control. 2021 FOXTECH All Rights Reserved ©... - Page 10 Connecting to a Receiver Select the RF port or the S-Bus port for different types of receivers. DJI Lightbridge 2 Connect the DJI Lightbridge 2 receiver DBUS port to the Flight Controller RF Port. 2021 FOXTECH All Rights Reserved ©...
- Page 11 Connect the ESC ports to the ESC ports on the Flight Controller in order. Connecting to a Battery Connect the PMU to the Flight Controller PMU port, and then connect the battery to the PMU. 2021 FOXTECH All Rights Reserved ©...
- Page 12 Please note that firmware update may reset various Main Controller Settings, such as the RTH Altitude and Maximum Flight Distance, to factory defaults. Before the update, take note of your preferred settings, and readjust them after the update to suit your preference. 2021 FOXTECH All Rights Reserved ©...
-
Page 13: A3 Functions
- If the Aircraft Status Indicator blinks red and yellow after the calibration, move your aircraft to a different location to carry out compass calibration. - Calibrate the compass before each flight. Launch DJI GO App, follow the on-screen instructions to calibrate the compass. 2021 FOXTECH All Rights Reserved ©... -
Page 14: Flight Functions
Safe to Fly (P-mode with GPS and Vision Positioning) Green Flashes Twice Safe to Fly (P-mode with Vision Positioning but without GPS) Yellow Flashes Slowly Safe to Fly (A mode but No GPS and Vision Positioning) 2021 FOXTECH All Rights Reserved ©... - Page 15 You can use the below method to stop the motors in the event of an emergency. When the aircraft has landed, push the throttle down, then perform the CSC (Control Stick Combination). The motors will stop immediately. Release both sticks once the motors have stopped. 2021 FOXTECH All Rights Reserved ©...
- Page 16 Lightbridge 2 not only allows you use the DJI GO app to operate the aircraft, but also use Intelligent Flight Modes, such as Course Lock, Home Lock, Point of Interest (POI) and Waypoints, to capture professional shots during flight. 2021 FOXTECH All Rights Reserved ©...
-
Page 17: Protection Functions
Smart RTH and regain the control. If using the DJI Lightbridge 2, no additional settings are required for the RTH button. If using another type of remote controller, you must configure the RTH button in DJI Assistant 2. 2021 FOXTECH All Rights Reserved ©... - Page 18 Course Lock or Home Lock mode to fly the aircraft to a safe area to land when the aircraft is far away, or the attitude can’t be recognized. Propulsion System Protection Low voltage and overweight aircraft warnings are provided in the DJI GO app. 2021 FOXTECH All Rights Reserved ©...
-
Page 19: Flight Control System Checklist
3.Ensure all the sensor parameters are correct and the IMUs are calibrated correctly. DJI Assistant 2 Checklist DJI Assistant 2 checklist 1.Ensure the aircraft mounting parameters are correct. 2.Ensure the flight controller parameters are correct. Low voltage protection and Failsafe protection are set correctly. 2021 FOXTECH All Rights Reserved ©... -
Page 20: Appendix
The module is functioning abnormally When the LED is blinking red. Blue The module is functioning normally but not working as a part of the system When the LED is blinking blue. 2021 FOXTECH All Rights Reserved ©... -
Page 21: Troubleshooting
Connect to DJI Assistant 2 to ensure the channel mapping of the flight mode switch is correct. Connect to DJI Assistant 2 to ensure the compass Mod value is normal. 5.Failed to exit the SD card read mode after reading the SD card successfully. Restart the battery of the aircraft. 2021 FOXTECH All Rights Reserved ©... - Page 22 FOXTECH GAIA 160MP User Manual This content is subject to change. Download the latest version from https://www.foxtechfpv.com/gaia-160-mp-heavy-lift-drone-arf-combo.html For everyday updates, please follow Foxtech Facebook page: https://www.facebook.com/foxtechhobby YouTube Channel: https://www.youtube.com/user/foxtechonline/featured?view_as=subscriber 2021 FOXTECH All Rights Reserved ©...
