Grundfos CR Instructions Manual
Service kit
Hide thumbs
Also See for CR:
- Installation and operating instructions manual (73 pages) ,
- Manual (48 pages) ,
- Installation and operating instruction manual (28 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Grundfos CR
Summary of Contents for Grundfos CR

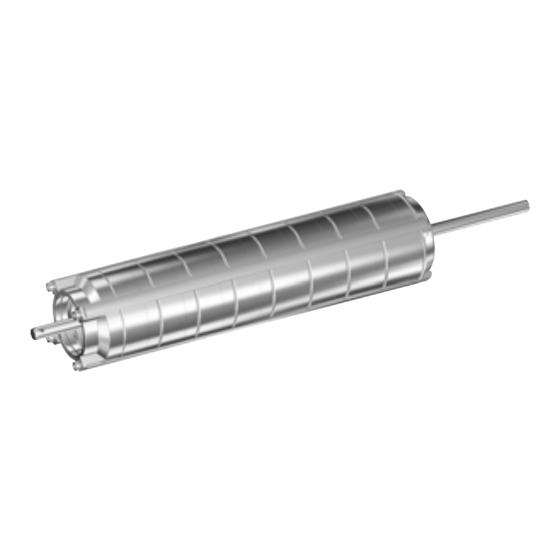

- Page 1 GRUNDFOS INSTRUCTIONS CR, CRI, CRN SF 32, 45, 64, 90 Service kit instructions...
- Page 3 English (GB) Installation and operating instructions CONTENT Page 1. Dismantling 2. Assembly English (GB) Warning Before starting service work, read the safety instructions supplied with the product. Dansk (DK) Advarsel Læs sikkerhedsanvisningerne der blev leveret med produktet, før du foretager servicearbejde. Deutsch (DE) Warnung Vor der Durchführung irgendwelcher Reparaturarbeiten ist...
- Page 4 Français (FR) Avertissement Avant toute intervention, consulter les consignes de maintenance fournies avec le produit. Italiano (IT) Avviso Prima di iniziare i lavori di manutenzione, leggere le istruzioni di sicurezza fornite con il prodotto. Nederlands (NL) Waarschuwing Lees de veiligheidsinstructies die bij het product meegeleverd zijn voordat u begint met servicewerkzaamheden.
- Page 5 1. Dismantling DK: Demontering NL: Demontage DE: Demontage PT: Desmontagem ES: Desmontaje RU: Демонтаж GR: Αποσυναρμολόγηση Purkaminen FR: Démontage SE: Demontering Smontaggio Fig. 1...
- Page 6 Fig. 2...
- Page 7 Fig. 3...
- Page 8 Fig. 4...
- Page 9 Fig. 5...
- Page 10 Fig. 6...
- Page 11 Fig. 7...
- Page 12 Fig. 8...
- Page 13 Fig. 9...
- Page 14 Model A Fig. 10...
- Page 15 Fig. 11...
- Page 16 Fig. 12...
- Page 17 Model A Fig. 13...
- Page 18 2. Assembly DK: Montering NL: Montage DE: Montage PT: Montagem ES: Montaje RU: Подключение GR: Συναρμολόγηση Kokoaminen FR: Montage SE: Montering Montaggio Rocol shapphire Aqual-Sil Fig. 14...
- Page 19 Fig. 15...
- Page 20 Rocol shapphire Aqual-Sil Fig. 16...
- Page 21 Model B Fig. 17...
- Page 22 Fig. 18...
- Page 23 Thread-eze Fig. 19...
- Page 24 Fig. 20...
- Page 25 Fig. 21...
- Page 26 Rocol shapphire Aqual-Sil Fig. 22...
- Page 27 Size Torque 100 Nm Fig. 23...
- Page 28 Rocol shapphire Aqual-Sil Fig. 24...
- Page 29 Size Torque 62 Nm Thread-eze Fig. 25...
- Page 30 Fig. 26...
- Page 31 Fig. 27...
- Page 32 Fig. 28...
- Page 33 Size Torque 62 Nm Fig. 29...
- Page 34 Size Torque 85 Nm Thread-eze Fig. 30...
- Page 35 Fig. 31...
- Page 36 Torque 6 Nm Fig. 32...
- Page 37 Fig. 33...
- Page 40 Argentina Bosna and Herzego- Croatia vina Bombas GRUNDFOS de GRUNDFOS CROATIA Argentina S.A. d.o.o. GRUNDFOS Sarajevo Ruta Panamericana km. Buzinski prilaz 38, Buzin Zmaja od Bosne 7-7A, 37.500 Centro Industrial HR-10010 Zagreb BH-71000 Sarajevo Garin Phone: +385 1 6595 400 Phone: +387 33 592 480 1619 Garín Pcia.
- Page 41 Germany India Korea GRUNDFOS GMBH GRUNDFOS Pumps India GRUNDFOS Pumps Korea Schlüterstr. 33 Private Limited Ltd. 40699 Erkrath 118 Old Mahabalipuram 6th Floor, Aju Building Tel.: +49-(0) 211 929 69-0 Road 679-5 Telefax: +49-(0) 211 929 Thoraipakkam Yeoksam-dong, Kang- 69-3799...
- Page 42 Sweden fos.com Russia GRUNDFOS AB New Zealand ООО Грундфос Россия Box 333 (Lunnagårdsgatan GRUNDFOS Pumps NZ Ltd. 109544, г. Москва, ул. 17 Beatrice Tinsley Cres- Школьная, 39-41, стр. 1 431 24 Mölndal cent Тел. (+7) 495 564-88-00 Tel.: +46 31 332 23 000...
- Page 43 Olathe, Kansas 66061 Phone: +1-913-227-3400 Telefax: +1-913-227-3500 Uzbekistan Grundfos Tashkent, Uzbeki- stan The Representative Office of Grundfos Kazakh- stan in Uzbekistan 38a, Oybek street, Tashkent Телефон: (+998) 71 150 3290 / 71 150 3291 Факс: (+998) 71 150 3292 Addresses Revised...
- Page 44 98620087 0214 ECM: 1128347 www.grundfos.com www.grundfos.com...
