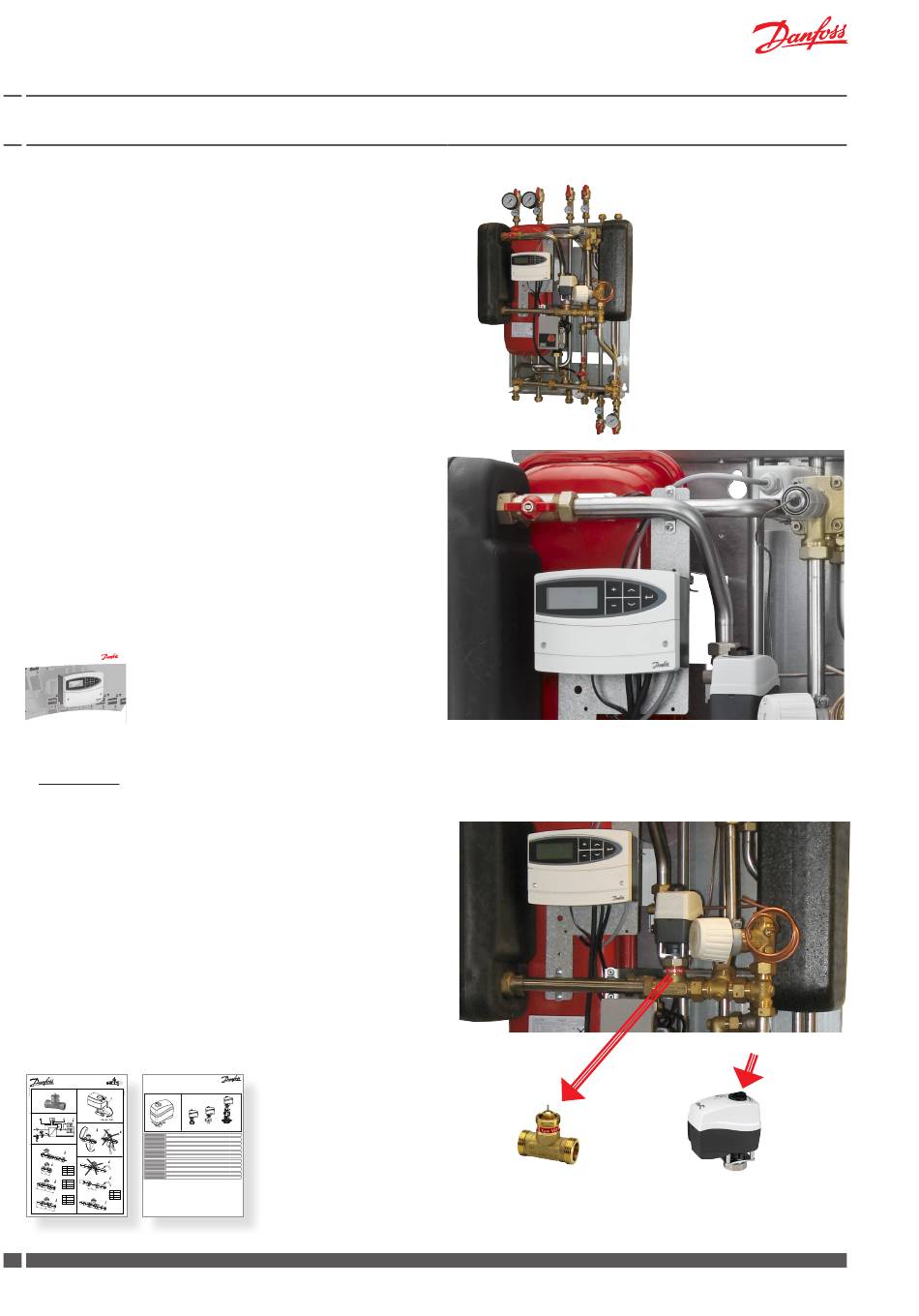

12.0 Description of Akva Lux II VX variants

12.1 Akva Lux II VX2 (ECL 110)

Substation for indirect heating for single-family, semi-detatched and
terraced houses as well as flats. With one heating circuit for radiator or
floor heating and instantaneous domestic hot water heater. Designed
for wall-mounting with connections in top and bottom of substation.
The temperature for the heating circuit is controlled by a Danfoss
ECL 110 controller in combination with an electronic actuator. The
supply temperature is calculated by the controller on basis of the
outdoor temperature.
Please note:
Your substation may look different than the substation shown, as vari-
ants with other components may be supplied.
Instructions for the fitted components will always be supplied to-
gether with the substation.
Heating circuit
The temperature for the heating circuit is controlled electronically
by the Danfoss ECL controller. The supply temperature is calculated
by the controller on basis of the outdoor temperature.
The factory-setting of the controller ensures that heating is automati-
cally switched off in the summer period.
In periods with higher heat demand the controller settings can be
changed in accordance with the enclosed producer instructions for
the mounted controller.
Installation & Maintenance
Danfoss ECL Comfort 110
Instructions
ECL Comfort 110
Application 116
Constant temperature control
of domestic hot-water systems (DHW)
User guide,
Installation & Maintenance
VI.KT.F2.02
DH-SMT/DK © Danfoss 06/2008
Control of heating circuit
For controlling the heating circuit the Akva Lux II VX 2 (ECL 110) is
supplied with a 2-way valve VS 2 and an electrical actuator AMV 150,
which in combination with the ECL controller controls the heating
circuit.
The electrical actuator has undergone a functional test from factory.
In case of operating disturbances the actuator can be closed manu-
ally turning the manual override knob on top of actuator counter-
clockwise.
Please see enclosed instructions,
Electrical actuator AMV 150
2-way valve VS 2
INSTRUCTIONS
Instructions
VS2 2-way
AMV 150
ENglIsh Actuators for three point control AMV 150
DANsK
Motorer til 3-punkts styring AMV 150
DEUTsCh Stellantriebe für 3-Pkt.- Eingangssignal AMV 150
sVENsKA Motor för 3-punktsreglering AMV 150
NEDERlANDs
Servomotor met 3-puntssturing AMV 150
lIETUVIŲ K. Pavaros trijų padėčių valdymui AMV 150
lATVIsKI
Motori trīs punktu kontrolei AMV 150
MAgYAR Szelepmozgatók hárompontos szabályozáshoz AMV 150
DN L (mm)
ČEsKY
15 65 Servopohony s tříbodovým regulačním signálem AMV 150
20 70
25 75 POlsKI Siłowniki sterowane sygnałem 3-punktowym AMV 150
РУССКИЙ Электроприводы для трехпозиционного регулирования AMV 150
DN L (mm)
1
15 131
20 142
25 159
DN L (mm)
3
15 69
DN L (mm) 20 74
2
15 139 25 79
20 154
25 159
EI.97.Q2.00 © Danfoss 12/01 1
7369267-9 SIBC R&D
73691180 DH-SMT/SI
20 DKDHR
Akva Lux II VX2
AMV 150 + AMV 150 + AMV 150 +
VS2 (DN 15) VMV AVQM (DN 15)
www.danfoss.com Page 2
www.danfoss.dk Side 3
www.danfoss.de Seite 3
varme.danfoss.se Sida 4
www.danfoss.nl Pagina 4
www.danfoss.lt 5 puslapis
www.danfoss.com Lpp. 5
www.danfoss.com 6. oldal
www.danfoss.cz Strana 6
www.danfoss.pl Strona 7
www.danfoss.ru Страница 7
VI.KU.N2.1J © Danfoss 01/2008 1
VS 2
VI.GP.V2.02
Manual override (AMV 150)
Press and hold the button (on
the bottom side of the actuator)
during manual override.
