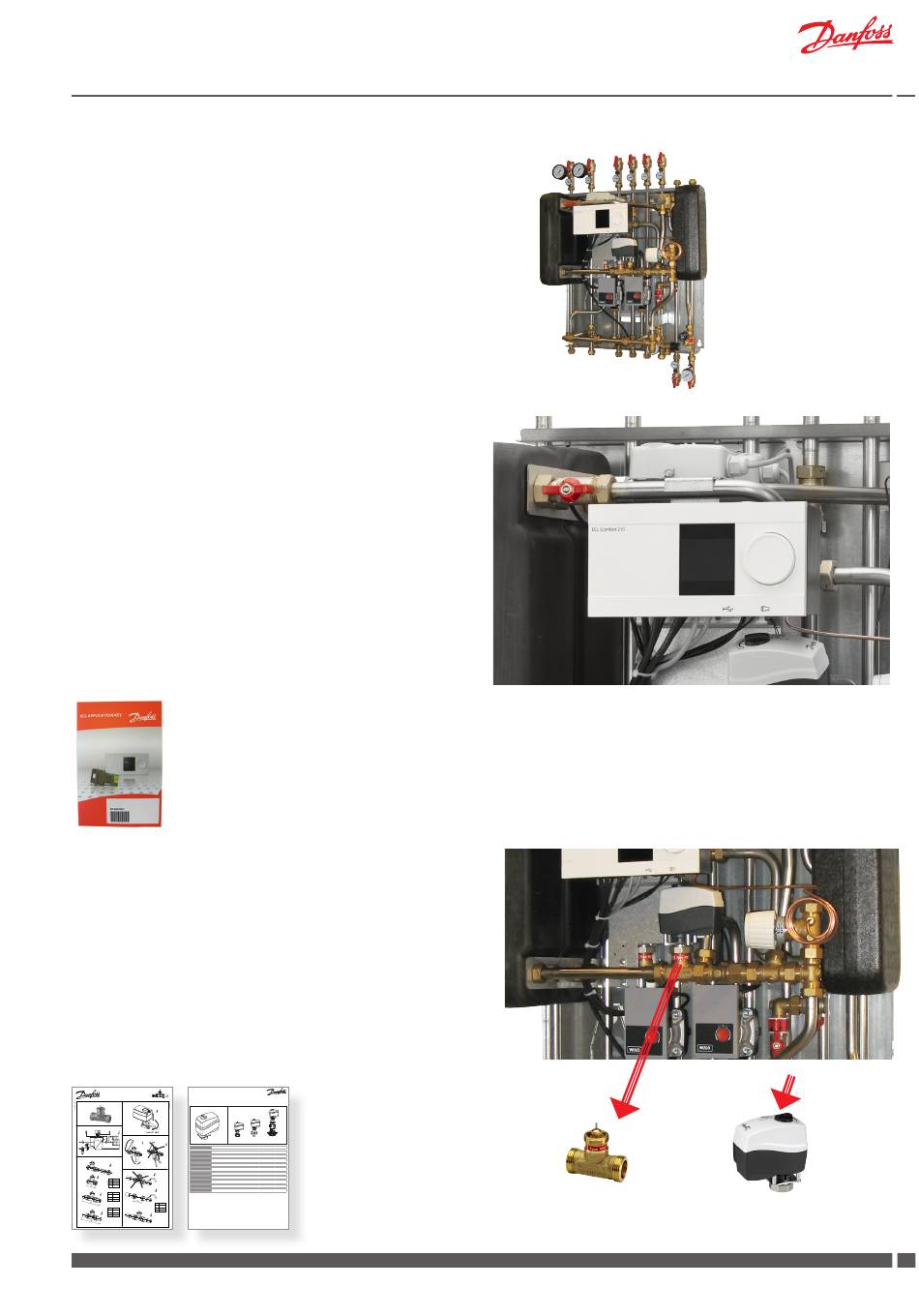

12.3 Akva Lux II VX3 (ECL210/A260)

Substation for indirect heating for single-family, semi-detatched
and terraced houses as well as flats. With two heating circuits and
instantaneous domestic water heater. Designed for wall-mounting
with connections in top and bottom of substation.
The temperature for the heating circuits is controlled by a Danfoss ECL
310 controller in combination with electronic actuators. The supply
temperature is calculated by the controller on basis of the outdoor
temperature.
Please note:
Your substation may look different than the substation shown, as vari-
ants with other components may be supplied.
Instructions for the fitted components will always be supplied to-
gether with the substation.
Heating circuit
The temperature for the heating circuit is controlled electronically by
the Danfoss ECL controller. The supply temperature ist calculated by
the controller on basis of the outdoor temperature.
The ECL Comfort 310 controller is loaded with a selected application
by means of an ECL Application Key (Plug-&-Play). The Application
Key contains information about application, languages and factory
settings.
The controller is factory preset to turn off the heating automatically
in the summer period.
The controller settings can be changed in accordance with the en-
closed producer instructions for the mounted controller.
See ECL Application Key Box with ECL Comfort 210/310 user guide
and mounting guide, for further information.
Control of heating circuit 1
For control of heating circuit 1 the Akva Lux II VX3 (ECL 310) is supplied
with a 2-way valve VS 2 and an electrical actuator AMV 150, which
in combination with the ECL controller controls the heating circuit.
The electrical actuator has undergone a functional test from factory.
In case of operating disturbances the actuator can be closed manu-
ally turning the manual override knob on top of actuator counter-
clockwise.
Please see enclosed instructions,
Electrical actuator AMV 150
2-way valve VS 2
INSTRUCTIONS
Instructions
VS2 2-way
AMV 150
AMV 150 +
VS2 (DN 15)
ENglIsh Actuators for three point control AMV 150
DANsK
Motorer til 3-punkts styring AMV 150
DEUTsCh Stellantriebe für 3-Pkt.- Eingangssignal AMV 150
sVENsKA
Motor för 3-punktsreglering AMV 150
NEDERlANDs Servomotor met 3-puntssturing AMV 150
lIETUVIŲ K. Pavaros trijų padėčių valdymui AMV 150
lATVIsKI
Motori trīs punktu kontrolei AMV 150
MAgYAR Szelepmozgatók hárompontos szabályozáshoz AMV 150
DN L (mm)
ČEsKY
15 65 Servopohony s tříbodovým regulačním signálem AMV 150
20 70
25 75 POlsKI Siłowniki sterowane sygnałem 3-punktowym AMV 150
РУССКИЙ
Электроприводы для трехпозиционного регулирования AMV 150
DN L (mm)
1
15 131
20 142
25 159
DN L (mm)
3
15 69
DN L (mm) 20 74
2
15 139 25 79
20 154
25 159
EI.97.Q2.00 © Danfoss 12/01 1
7369267-9 SIBC R&D
73691180 DH-SMT/SI VI.KU.N2.1J © Danfoss 01/2008
Danfoss District Energy
Akva Lux II VX3
AMV 150 + AMV 150 +
VMV AVQM (DN 15)
www.danfoss.com Page 2
www.danfoss.dk Side 3
www.danfoss.de Seite 3
varme.danfoss.se Sida 4
www.danfoss.nl Pagina 4
www.danfoss.lt 5 puslapis
www.danfoss.com Lpp. 5
www.danfoss.com 6. oldal
www.danfoss.cz Strana 6
www.danfoss.pl Strona 7
www.danfoss.ru Страница 7
1
VS 2
VI.GP.V2.02
Manual override (AMV 150)
Press and hold the button (on
the bottom side of the actuator)
during manual override.
