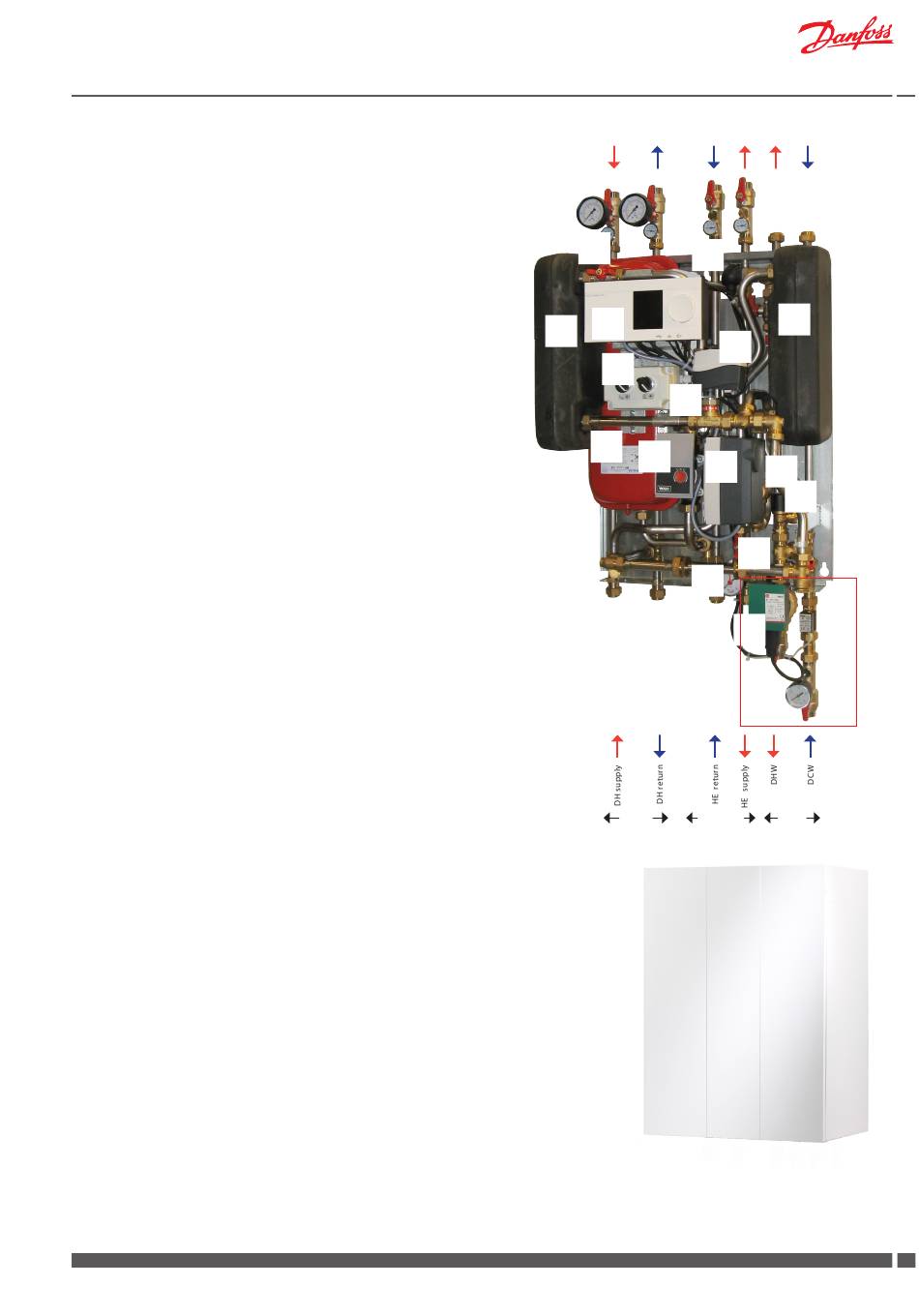

6.2 Akva Lux II VX2-E

1 Plate heat exchanger HE
2 Plate heat exchanger DHW
8 Pump HE
9 Circulation pump, DHW circ.
11 Safety valve HE
12 Safety vale DHW
16 Expansion vessel
17 Air valve
20 Switch box for pumps
21 Flowswitch
22 Safety thermostat
24 Fitting piece for heat meter
25 Electronic controller EC310/A266
29 Actuator AMV 150
30 2-way valve VS 2
31 Actuator AMV 30
32 2-way valve VM2
The substations offer variable connection possibilities, as con-
nection of pipes can be established both in the top or in the
bottom of the substation.
Please note:
Your substation may look different than the substation shown, as vari-
ants with other components may be supplied. The control function,
however, is basically as stated in this instruction manual.
Instructions for the fitted components will be supplied together with
the substation.
Accessories, which are supplied loose with the substation
(mounting on site):
Circulation set - Art.No. 810.443
The circulation set is supplied assembled and electrically wired
and ready to mount on the substation as shown on the above
photo.
Accessories to be ordered separately (mounting on site):
White-lacquered steel-sheet cover
Art. No. 936.0811
