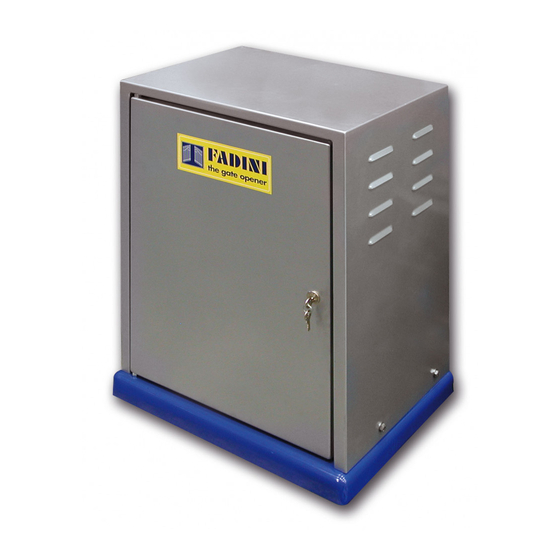

fadini Fibo 300 Instruction Manual

Electromechanical operators for heavy industrial sliding gates
Hide thumbs Also See for Fibo 300:

Advertisement

Quick Links

Download this manual See also: Installation Manual
GB Instructions manual
FIBO 300 - FIBO 400
FIBO 300 - 1,5 HP
Electromechanical operators for heavy industrial sliding gates
• Fibo 300 - 1,5 HP maximum gate weight 2.500 kg
• Fibo 400 - 3,0 HP maximum gate weight 4.000 kg
EN 13241
EN 12453
EN 12445
1 - 12
pages
FIBO 400 - 3,0 HP
the gate opener

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fibo 300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for fadini Fibo 300

Summary of Contents for fadini Fibo 300

  • Page 1 FIBO 300 - 1,5 HP FIBO 400 - 3,0 HP Electromechanical operators for heavy industrial sliding gates • Fibo 300 - 1,5 HP maximum gate weight 2.500 kg • Fibo 400 - 3,0 HP maximum gate weight 4.000 kg EN 13241...

  • Page 2: Installation

    CE DECLARATION OF CONFORMITY of the manufacturer: Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under own responsibility that: Fibo 300 - Fibo 400 comply with the 2006/42/CE Machinery Directive, and also that they are sold to be installed in an “automatic system”, along with original accessories and components as indicated by the manufacturing company.
  • Page 3 FIBO 300 and FIBO 400 are electromechanical operators designed to open and close heavy industrial sliding gates, up to 2.500 kg (Fibo 300 -1,5 HP) max. and 4.000 kg (Fibo 400 - 3,0 HP) max. gate weights respectively; the motor comes enclosed in a metallic casing (protection cover) and access to it is by a customized key.
  • Page 4 Fibo 300 Three-phase electromechanical geared motor for sliding gates Fibo 400 FIBO 300 MAIN COMPONENTS Cover xing screws with washers Metal protection cover Door with access customized Control box Cover xing xing bracket screws with washers Bracket xing screws BACK VIEW...
  • Page 5 Positioning the base plate - Fibo 300 and Fibo 400: Once satis ed with the correct position where Fibo 300 or Fibo 400 should be installed next to the gate, respect the installation distances as in Pic. 5 and Pic. 6.
  • Page 6 MANUAL RELEASING FIBO 300 AND FIBO 400 In order to properly install the gear rack all along the gate, it is rst necessary to disengage the gate from the Fibo 300 or Fibo 400 motors, once these have been installed. Overriding for manual operations is by the spanner supplied with the equipment and the release system is positioned in the front side of Fibo 300 or Fibo 400 on the drive gear shaft: unlock the M18 (for Fibo 300) or M22 (for Fibo 400) nuts by a few turns to release.
  • Page 7 • Make sure the gear rack is perfectly aligned all along the gate travel before welding it rmly: test the correct alignment by manually running the gate full track, Fibo 300 or Fibo 400 in disengaged mode, and make sure the drive gear turns smoothly without any friction or jerking.
  • Page 8 LAYOUT OF THE INSTALLATION - WIRING DIAGRAM AND ACCESSORIES Before installing Fibo 300 or Fibo 400 prepare all the command and safety accessories as required. General layout: merely indicative, it is the installer’s care and responsibility to properly lay the tubes for the electrical connections.
  • Page 9 ADJUSTING THE MECHANICAL CLUTCH It is possible to adjust power with Fibo 300 and Fibo 400 by a mechanical clutch (factory pre-set). In order to adjust the mechanical clutch, ie. the operator torque to the gate weight, turn the self-locking nut positioned on the operator base: screw the nut harder to increase torque, unscrew to decrease torque (Pic.
  • Page 10 Three-phase electromechanical geared motor Fibo 300 for sliding gates FIBO 300 TECHNICAL DATA ELECTRIC MOTOR Power output 1,1 kW (1,5 HP) Absorbed power 1.500 W Three-phase supply voltage 230/400 Vac Frequency 50/60 Hz Absorbed current 5,1/3 A Motor rotation speed 1.400 rpm (50 Hz) - 1.700 rpm (60 Hz)
  • Page 11 Transfer speed (1.400 rpm - 50 Hz) 10,5 m/1' Transfer speed (1.700 rpm - 60 Hz) 12,8 m/1' Hydraulic oil type Oil Fadini - art. 706L Working temperature -25 °C +80 °C Fibo 400 weight 105 kg Maximum gate weight 4.000 kg...
  • Page 12 Fibo 300 Three-phase electromechanical geared motor for sliding gates Fibo 400 Via Mantova, 177/A - 37053 Cerea (VR) Italy 2012/19/UE Directive Re. disposal of electric Ph. +39 0442 330422 Fax +39 0442 331054 and electronic waste DISPOSE PROPERLY OF MATERIALS info@fadini.net - www.fadini.net...
  • Page 13 Local Exclusive Partner for Sri Lanka & Maldives No: 92/3, Colombo Road, Katuwawala, Boralesgamuwa, Sri Lanka. T: +94(0) 115288856-8 F: +94(0) 11 4835334 info@leadingway.lk www.leadingway.lk...
