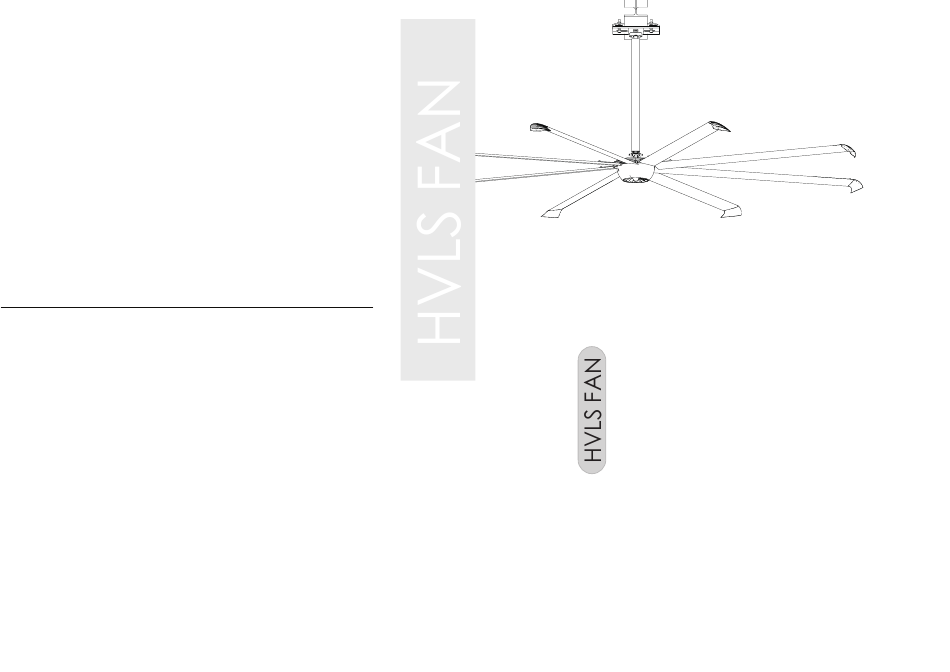

- Page 1 HVLS201602001...
-
Page 2: Table Of Contents
Contents Preface…………………………………………………………………………………………………20 Production series introduction……………………………………………………..21 Product specification table…………………………………………………21 Product drawing………………………………………………………………………22 Standard components introduction……………………………………23 Packing list…………………………………………………………………………24 Universal installation tools…………………………………………………26 Installation conditions and types………………………………………………….26 Roof installation requirement……………………………………………26 I-beam steel structure………………………………………………………27 Concrete structure…………………………………………………………….27 Angle-concrete bent structure……………………………………………27 Fan installation procedures………………………………………………………….28 Specification of parameters for control system.…………………………….31 Operating instructions………………………………………….…………………32 Safety instructions……………………………….……………….……………………..32... -
Page 3: Preface
INSTALLATION GUIDE Preface Thanks and congratulate for your purchasing of the HVLS Diamond Series big energy-saving fan! Now you have acquired the most effective shortcuts to pass a cool summer and warm winter. No matter in the industrial or public occasion applications, it possesses relatively high cost performance. -
Page 4: Production Series Introduction

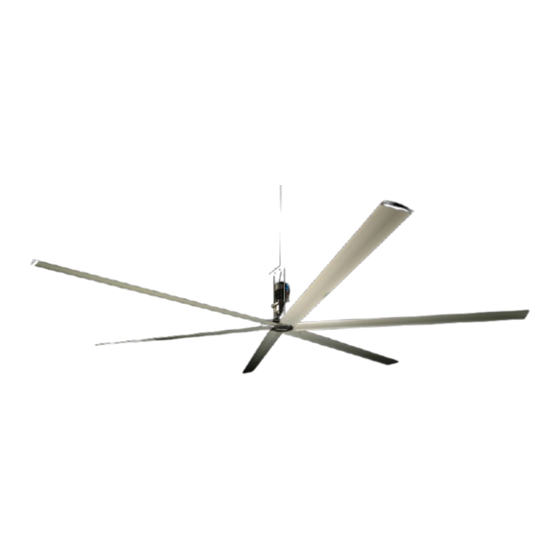

INSTALLATION GUIDE Production series introduction Diamond Series The third generation HVLS(Super High Volume-Low Speed) large energy-saving ceiling fan named by is an application based on permanent-magnet brushless tech, acme industry design and intelligent control tech. The fans can circulate the airlfow in the space efficiently, then improve the comfortable feeling greatly. The product combined a series of advanced technologies, such as aerodynamics, industry design, dynamics, pulse width modulation(PWM) control technology, mechanics, computer software, simulation technology. -
Page 5: Product Drawing
INSTALLATION GUIDE Product drawing 1. H-type steel structure 6. Separating connector 2. Clamp plate 7. Steel wire 3. Extension tube 8. L-type adapting pieces 4. Turnbuckle and clamps 9. Fan blade 5. BLDC motor 10. Fan blade tail... -
Page 6: Standard Components Introduction
INSTALLATION GUIDE Standard components introduction 3 Steel structure fastening 5 Main body structure fasteners stator shaft H-beam upper dust cover clamp plate rotor shim bottom cover top plate Control system structure control cabinet switch speed controller 2016... -
Page 7: Packing List
INSTALLATION GUIDE Packing list Packing specification Gross DIMENSION Volume CASE NO weight Remark (L*W*Hmm) （m ） （kg） main body 1000*430*390 0.16 carton Packing List DESCRIPTION DESCRIPTION BLDC motor system Adapter Ring Control Box Steel Wire Top Plate Fastener Shim Cable Clamp Plate Separating Connector L-type Adapting Pieces... - Page 8 INSTALLATION GUIDE Packing specification Gross DIMENSION Volume CASE NO weight Remark (L*W*Hmm) （m ） （kg） fan blade 1890*270*180 carton Packing details DESCRIPTION Fan Blade Extension Tube 2016...
-
Page 9: Universal Installation Tools
INSTALLATION GUIDE Universal installation tools spanner ratchet spanner Allen wrench multimeter diastimeter gradienter wire-cutter screw glue Installation conditions and types Roof installation requirement Roof cardan joint extension rod 0.1M 0.3-5M vertical distance to obstacle ≥ 0.2M drive parts horizontal distance to 0.3M obstacle ≥... -
Page 10: I-Beam Steel Structure
INSTALLATION GUIDE I-beam steel structure Concrete structure Angle-concrete bent structure 2016... -
Page 11: Fan Installation Procedures
INSTALLATION GUIDE Fan installation procedures Preparation Notice: product should be unloaded gently , product’s position should not influence the field production and channel. Notice: Carefully confirm the following information 1, Installation point 2, installation confirmation height 3, whether there are obstacles (such as crane, light, Cable, fire protection, cameras) 4, control cabinet position 5, the input power and the power cord layout, 6, power line layout, 7, traction steel wire position. - Page 12 INSTALLATION GUIDE Main body Notice: keep the upper and under plane horizon- tal, then tighten up the relevant bolts. Notice: Don't cut the copper wire when stripping off, first connect ground wire wiring (yellow-green one or yellow one if no yellow-green), connect one-to-one according to the color and then wrapped with wiring cap in case of exposing copper wire.
- Page 13 INSTALLATION GUIDE Notice: fasten the tail. Tail installation control system Notice: the height from floor to the bottom of the control box should be around 1.2 meter and fasten the 4 points. Notice: distinguish the input and output, also make sure the ground wire is in place. wiring Notice: all the parameters had well set before delivery in factory.
-
Page 14: Specification Of Parameters For Control System
INSTALLATION GUIDE Specification of parameters for control system Status Display When the power supply to the drive is turned on, the LED operator lights will appear as follows: Name Description Normal The data display area displays the frequency reference. is lit. -
Page 15: Operating Instructions
INSTALLATION GUIDE Operating instructions Three gears control switch Three gears control switch is the electrical device that controls OFF, RUN and Reset, and is belongs to weak current control switch. It directly controls the frequency converter. Run: Fans are running forward, winds blowing downward.Off: Fans stop running.Reset. -
Page 16: Troubleshooting
INSTALLATION GUIDE Caution The installation and layout of the circuit wiring must be performed by our professional qualified staff. Please use the specified device component appointed by our company. While the fan is running, please don’t cut off the power, otherwise it will cause damage to the fan. It should cut off the power when the fan is drop-dead halt. - Page 17 INSTALLATION GUIDE Fault Displays, Causes and Possible Solutions Detailed Fault Displays, Causes and Possible Solutions LED Operator Display Fault Name Overcurrent Drive sensors have detected an output current greater than the specified overcurrent level. Cause Possible Solution • Check the motor cables. •...
-
Page 18: Customer Service
INSTALLATION GUIDE LED Operator Display Fault Name Motor Pull Out or Step Out Detection Motor pull out or step out has occurred. Motor has exceeded its pull out torque. Cause Possible Solution • Enter the correct motor code for the PM being used into E5-01. The wrong motor code has been set •... -
Page 19: 11. Warranty And Maintenance
INSTALLATION GUIDE 11. Warranty and maintenance Our product design is maintenance-free, but in order to ensure the long life of the normal operation, the fan should also be maintained regularly, especially when applied in harsh environments. For any fan or inverter controller maintenance, please be sure that the fan stops running and cut off the controller power to protect the safety of personnel.
