Appendix—How to Create an RSU MAP File

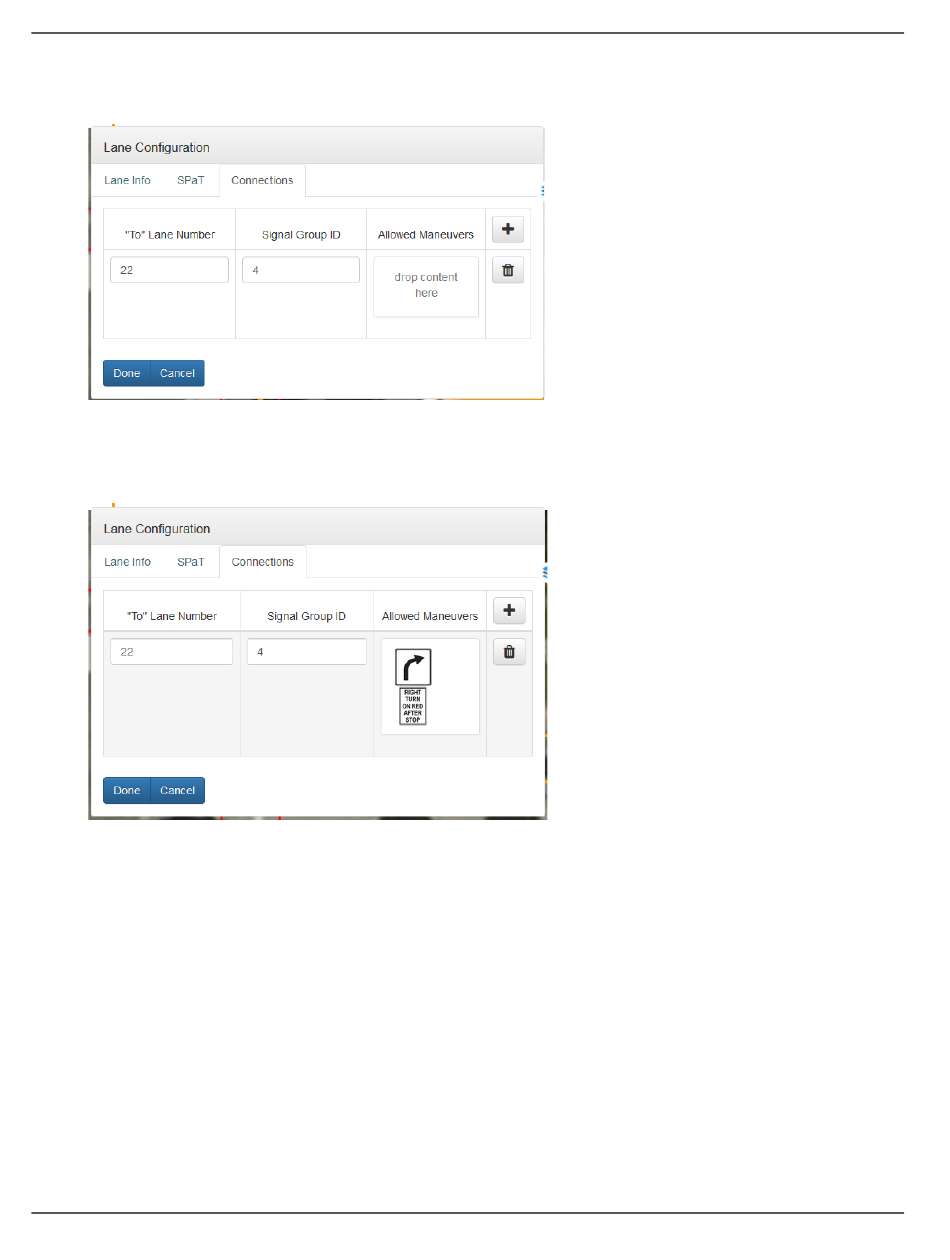

40. Using the intersection diagram as a reference, enter the destination lane number in the "To" Lane
Number field and the phase number associated with the movement in the Signal Group ID field.
41. Drag and drop the allowed maneuvers for the given phase and lane number from the Lane tab of
the Builder menu to the Allowed Maneuvers Box in the Connections tab window.
