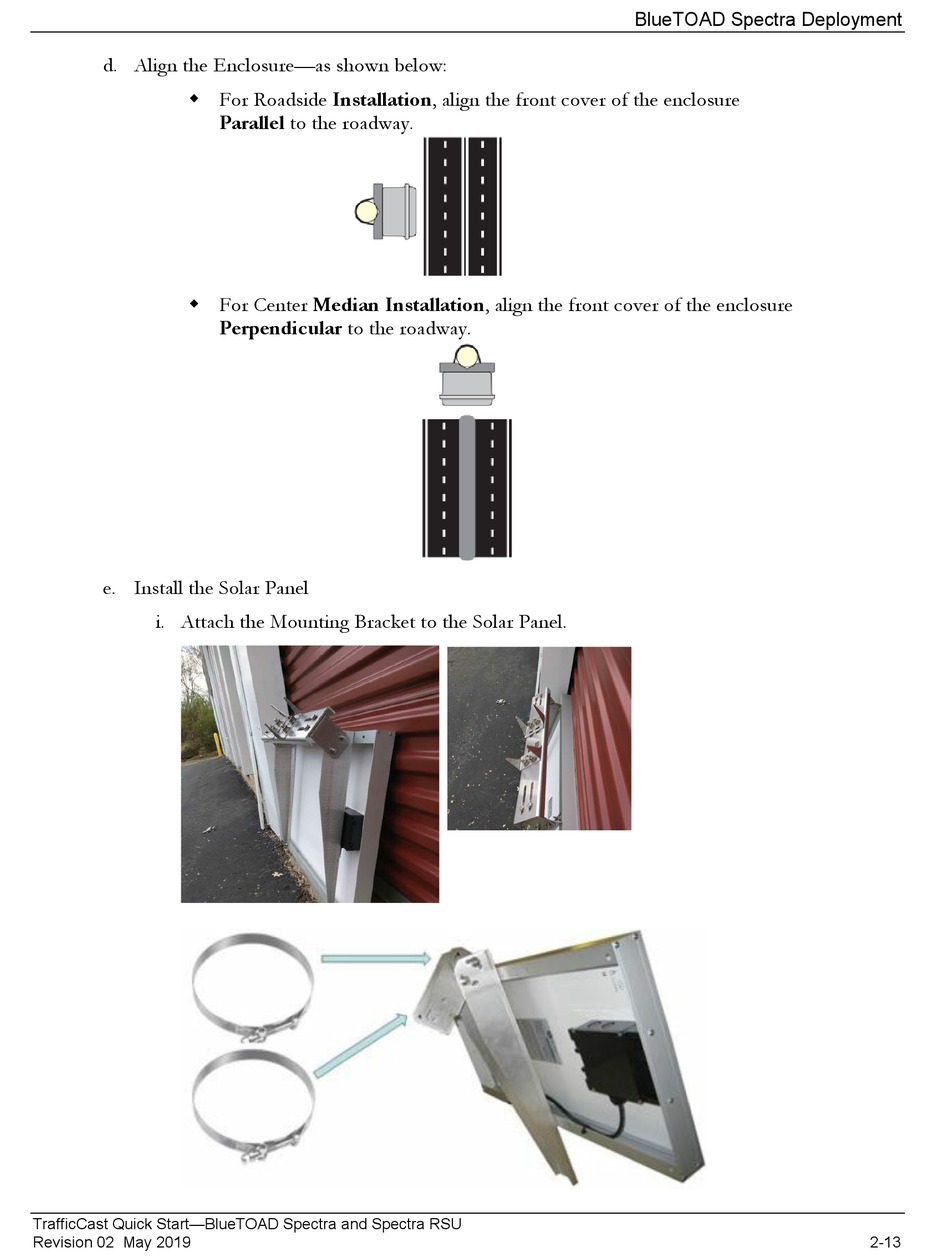

d. Align the Enclosure—as shown below:
 For Roadside Installation, align the front cover of the enclosure
 For Center Median Installation, align the front cover of the enclosure
e. Install the Solar Panel
i. Attach the Mounting Bracket to the Solar Panel.
TrafficCast Quick Start—BlueTOAD Spectra and Spectra RSU
Revision 02 May 2019
Parallel to the roadway.
Perpendicular to the roadway.
BlueTOAD Spectra Deployment
2-13
