5. To test a Spectra Solar Cellular detector:
a. Open the Spectra enclosure.
b. Connect the Battery to the Charge Controller with the Quick Connect from the Battery.
Note: The Quick Connect is illustrated on Page 2-16 (but do NOT attach the Battery yet).
c. On the BlueTOAD card (PCB), LED 7 should start flashing.
d. In the presence of Bluetooth signals, confirm the LEDs operate as shown below.
e. Go to Step 6.
LED Function
7 Network Connection
5 Bluetooth Detection
4 Diagnostics Reporting
3 Connection Strength
2 Kernel Diagnostics
TrafficCast Quick Start—BlueTOAD Spectra and Spectra RSU
Revision 02 May 2019

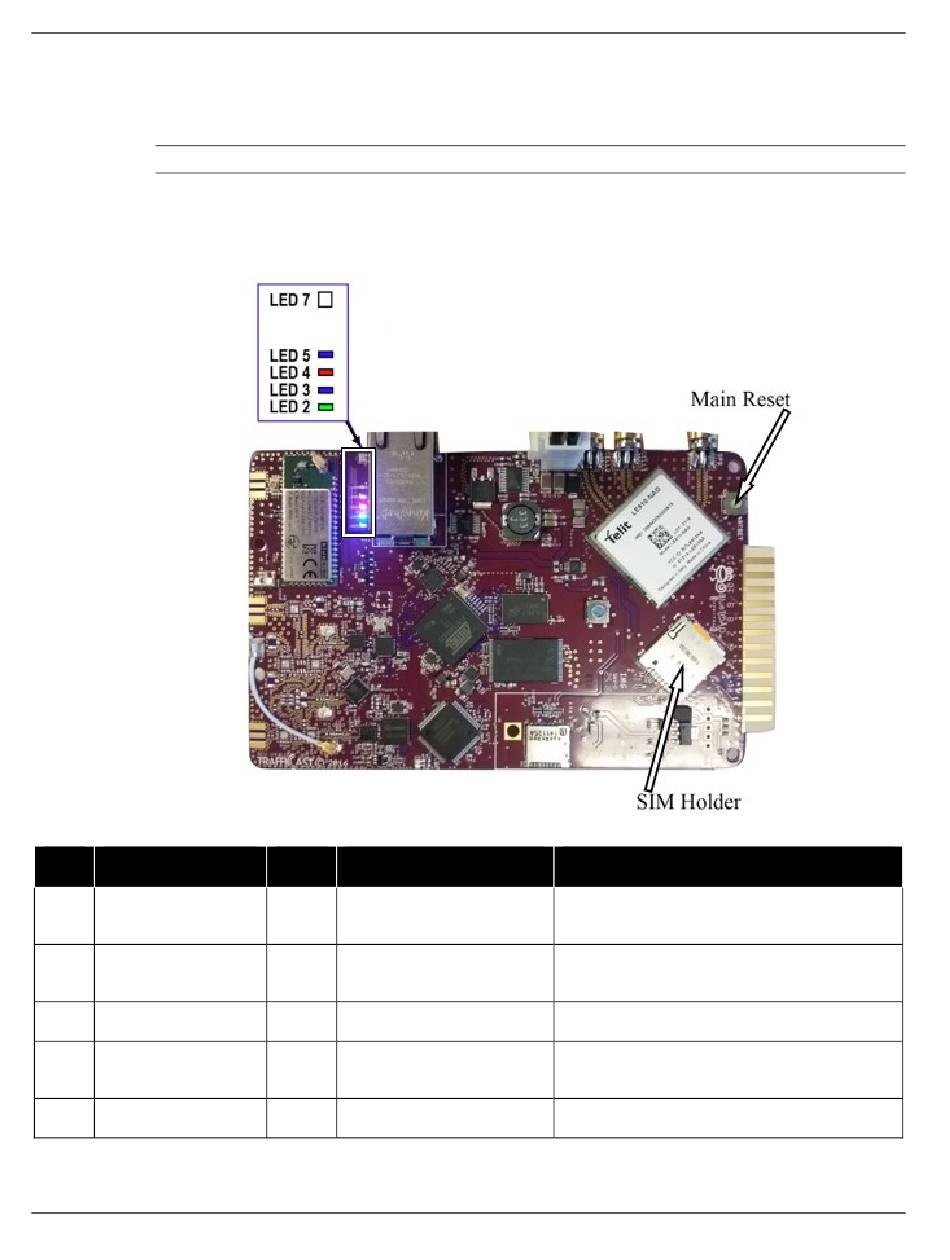

LEDs inside a BlueTOAD Spectra
Color @ Initial Startup
Multi- White – Searching for Cell
color Green – Searching for GPS
Multi- Blue – Discoverable
color Purple – Non-Discoverable
Red OFF
Blue OFF
Green OFF
BlueTOAD Spectra Deployment
@ Normal State (takes up to 5 minutes)
OFF – Cell and GPS established
Blinks upon detection
Blinks – 1 x per 3 sec.
Flash blue if > - 90 dbm (good)
Solid blue if < - 90 dbm (poor)
Blinks – 1 x per 3 sec.
