TraffiCast BlueTOAD Spectra Quick Start Manual page 27

i. Connect the Battery and Power ON the Detector.
i. Refer to the photograph on the previous page to connect the Battery to the Charge
Controller with the Quick Connect cable.
ii. On the BlueTOAD Card (PCB), LED 7 should start flashing.
iii. In the presence of Bluetooth signals, confirm LEDs on the PCB operate as shown below.
iv. Close and fasten the Solar Cellular Enclosure.
j. Go to Step 11, Confirm Network Connectivity and Data Collection.
LED Function
7 Network Connection
5 Bluetooth Detection
4 Diagnostics Reporting
3 Connection Strength
2 Kernel Diagnostics
TrafficCast Quick Start—BlueTOAD Spectra and Spectra RSU
Revision 02 May 2019

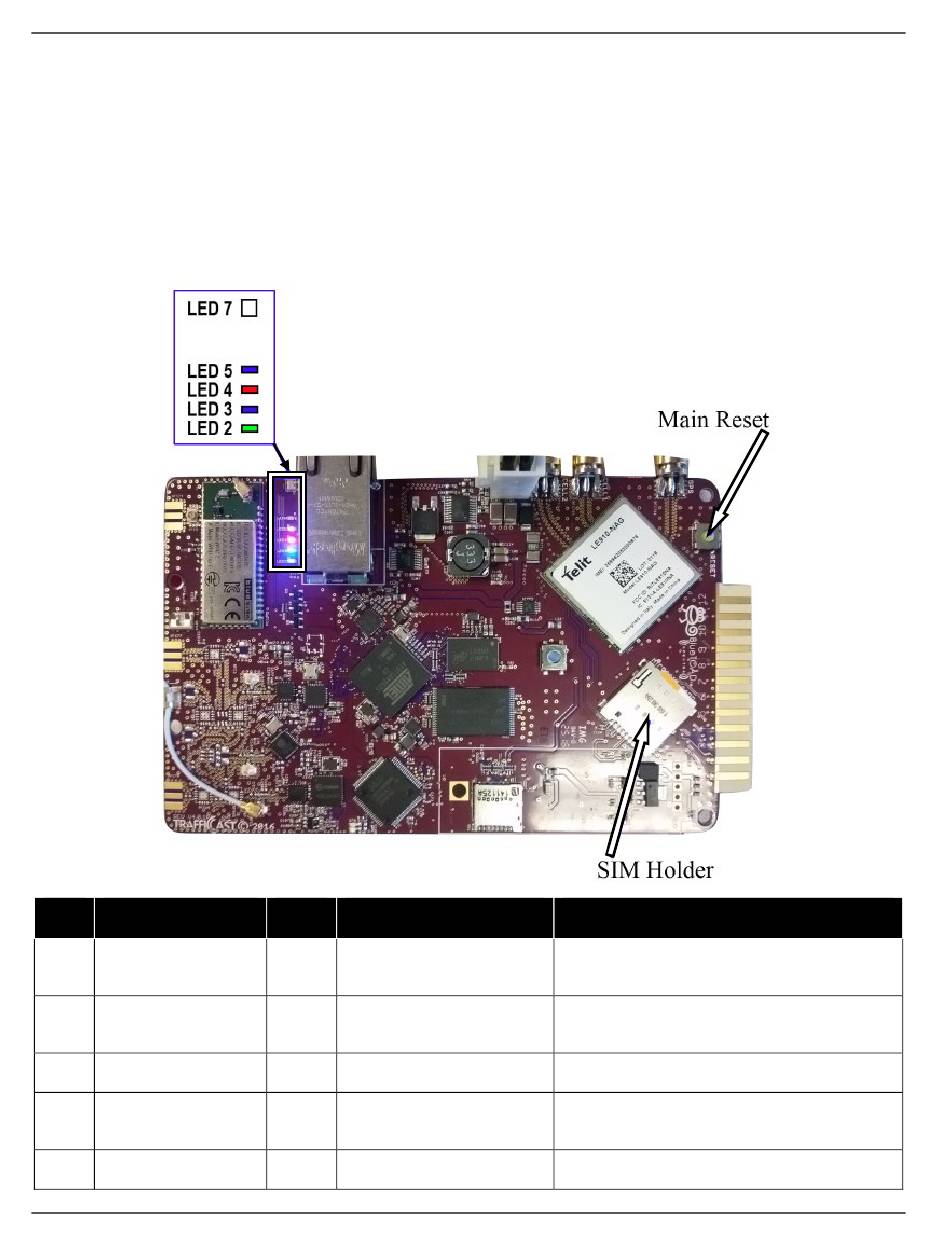

LEDs inside a BlueTOAD Spectra
Color @ Initial Startup
Multi- White – Searching for Cell
color Green – Searching for GPS
Multi- Blue – Discoverable
color Purple – Non-Discoverable
Red OFF
Blue OFF
Green OFF
BlueTOAD Spectra Deployment
@ Normal State (takes up to 5 minutes)
OFF – Cell and GPS established
Blinks upon detection
Blinks – 1 x per 3 sec.
Flash blue if > - 90 dbm (good)
Solid blue if < - 90 dbm (poor)
Blinks – 1 x per 3 sec.
2-17
