BlueTOAD Spectra Deployment
ii. Mount the Solar Panel above the BlueTOAD enclosure.
iii. Mount the Solar Panel facing true south.
iv. Use a drill to tighten the Cable Band with a 5/16" nut driver bit or equivalent.
v. Go to this website and enter data in a Solar Calculator to set the Solar Panel to the
optimum angle for your location:
http://solarelectricityhandbook.com/solar-angle-calculator.html
Metal
Banding
2-14

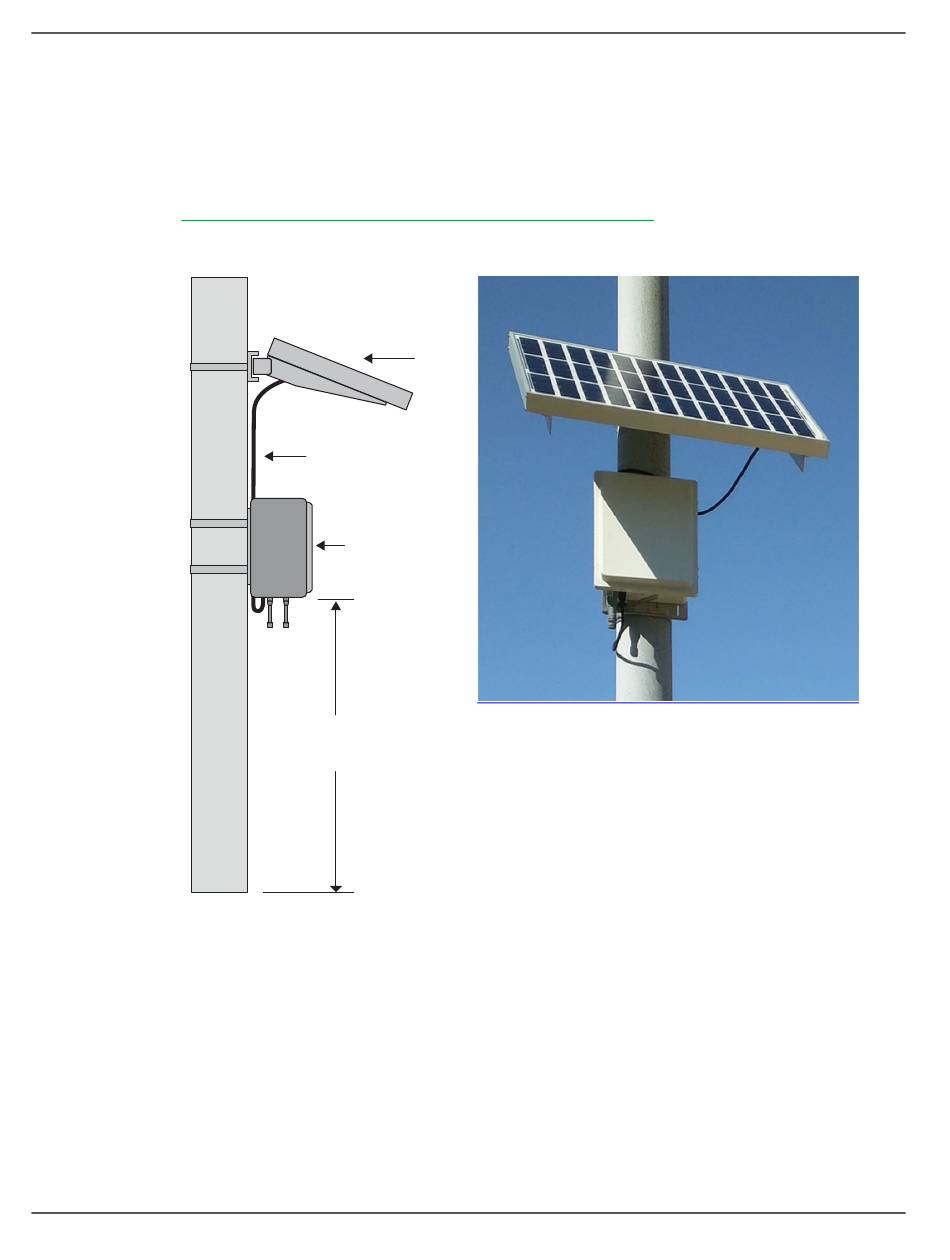

Solar Panel
- Installed for best
direction of sun.
Solar Panel
Power Cable
BlueTOAD
Cabinet Door
12-14
Feet
STREET
