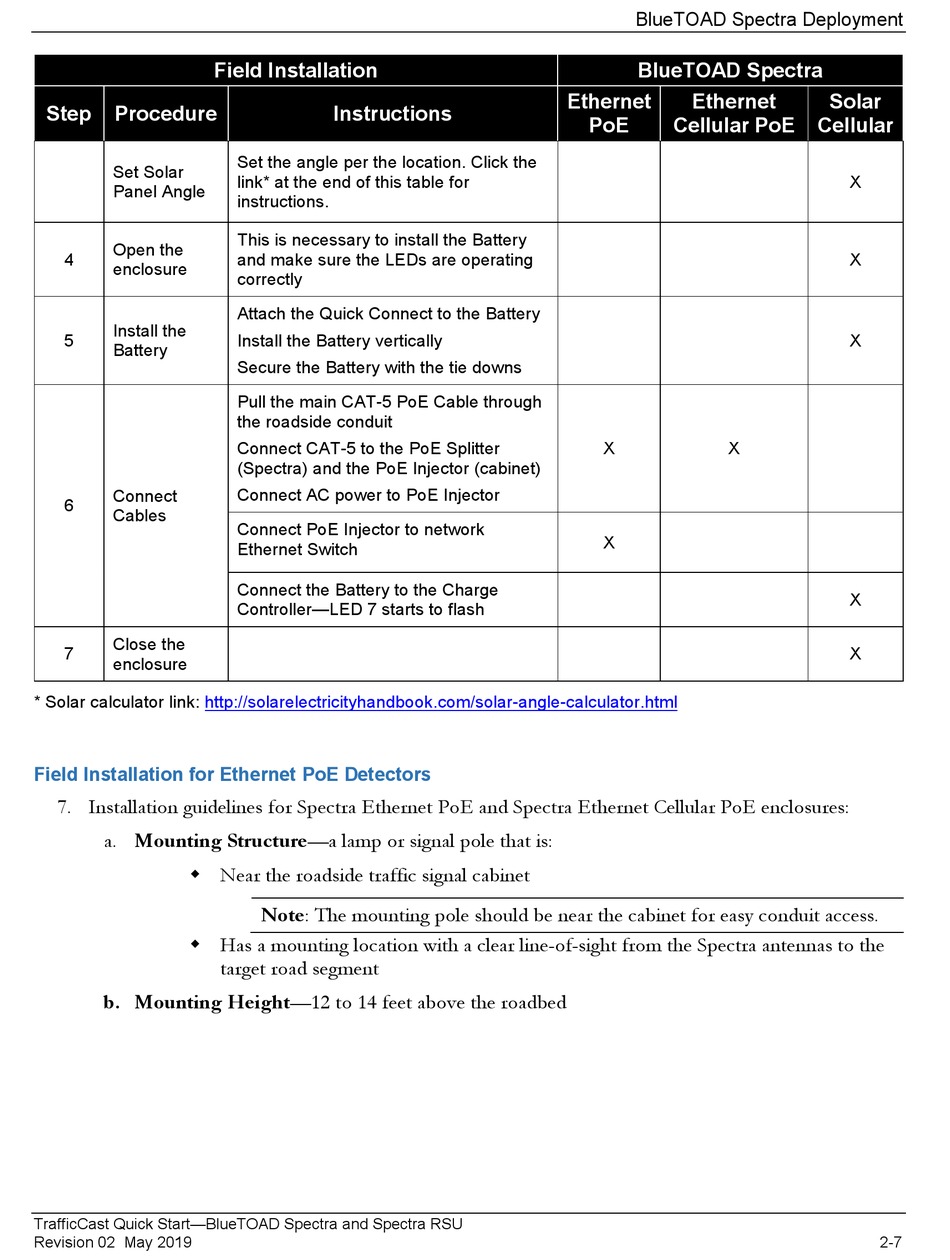

Field Installation For Ethernet Poe Detectors - TraffiCast BlueTOAD Spectra Quick Start Manual

Step Procedure
Set Solar
Panel Angle
Open the
4
enclosure
Install the
5
Battery
Connect
6
Cables
Close the
7
enclosure
* Solar calculator link: http://solarelectricityhandbook.com/solar-angle-calculator.html

Field Installation for Ethernet PoE Detectors

7. Installation guidelines for Spectra Ethernet PoE and Spectra Ethernet Cellular PoE enclosures:
a. Mounting Structure—a lamp or signal pole that is:
 Near the roadside traffic signal cabinet
 Has a mounting location with a clear line-of-sight from the Spectra antennas to the
b. Mounting Height—12 to 14 feet above the roadbed
TrafficCast Quick Start—BlueTOAD Spectra and Spectra RSU
Revision 02 May 2019
Field Installation
Instructions
Set the angle per the location. Click the
link* at the end of this table for
instructions.
This is necessary to install the Battery
and make sure the LEDs are operating
correctly
Attach the Quick Connect to the Battery
Install the Battery vertically
Secure the Battery with the tie downs
Pull the main CAT-5 PoE Cable through
the roadside conduit
Connect CAT-5 to the PoE Splitter
(Spectra) and the PoE Injector (cabinet)
Connect AC power to PoE Injector
Connect PoE Injector to network
Ethernet Switch
Connect the Battery to the Charge
Controller—LED 7 starts to flash
Note: The mounting pole should be near the cabinet for easy conduit access.
target road segment
BlueTOAD Spectra Deployment
BlueTOAD Spectra
Ethernet Ethernet
PoE Cellular PoE
X X
X
Solar
Cellular
X
X
X
X
X
2-7
