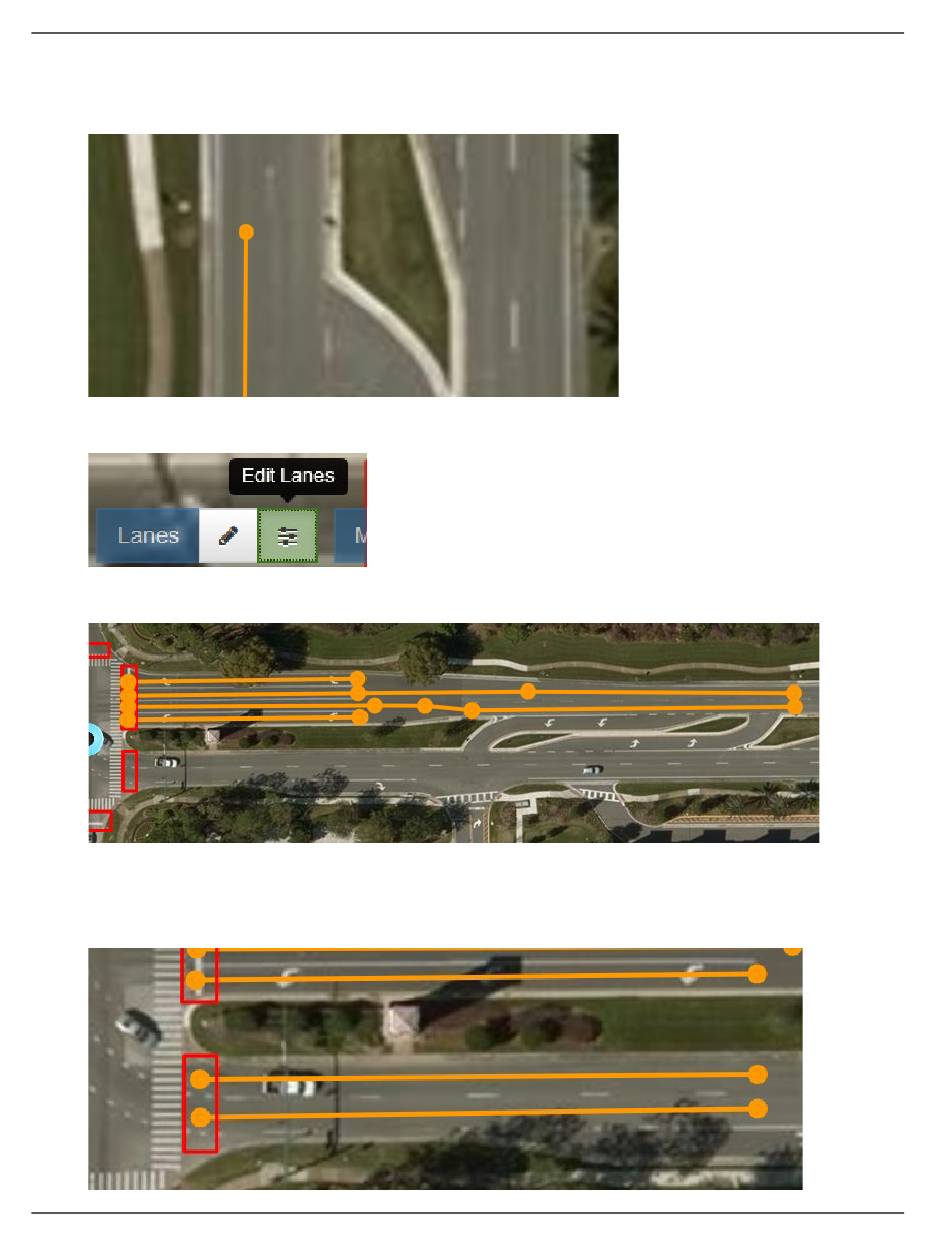

26. Use the middle mouse button to drag the view out to the measured landmark. Left click on the
center of the lane as needed to remain in the center.
27. Double click on the desired endpoint of the lane to terminate the lane.
28. As needed to edit, left click on the Edit Lanes button and select the drawn lane. Click on the opaque
midpoints to add nodes and use the Delete key to delete nodes.
29. Repeat the process for other individual lanes of the approach. For dedicated right and left turn lanes,
span the entirety of the lanes until completed as shown (Rotated 90° CW).
30. To draw the Egress lane, click on the Draw Lanes button, click on the center of the Egress lane
within the approach box, draw the egress lane to at least the same length as the left turn lane, and
double click on the endpoint to terminate the lane; repeat this process for all Egress lanes in the
approach box until completed as shown (Rotated 90° CW).
