Installation instructions for part 99-9109B
Audi A3
(with NAV or Symphony radio)
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision

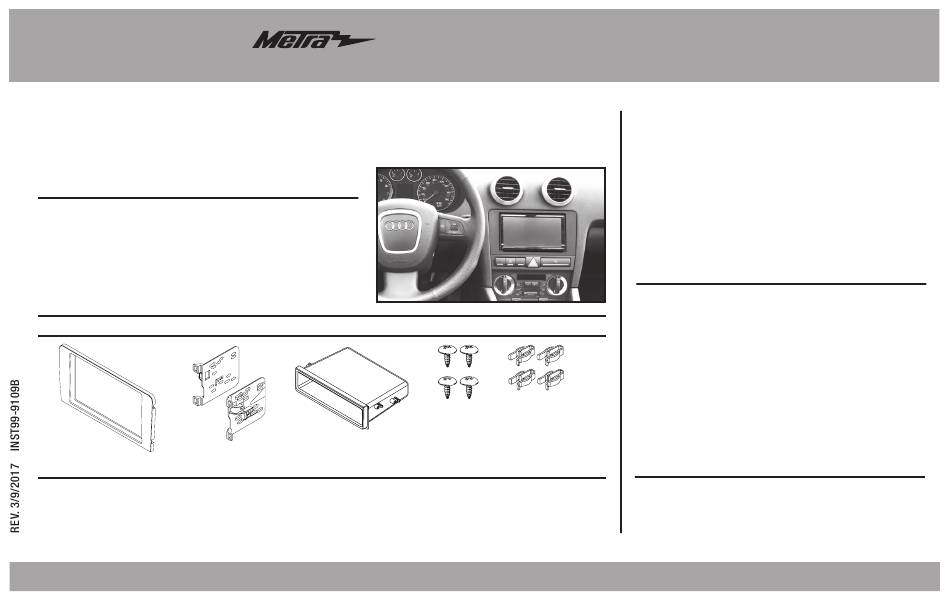

KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8" Phillips screws • E) (4) Panel clips
A
B
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: XSVI-9004-NAV
Antenna Adapter: 40-EU56 • 40VW54 (06'-07' Standard Symphony models)
Steering wheel control interface: ASWC-1 (sold separately)
METRA - The World's best kits
®
2006-2013
99-9109B
C
D
metraonline.com
®
Dash Disassembly ..................................................2
– ISO DIN radio provision with pocket ...................... 3
–
ISO DDIN radio provision ...................................... 3
TOOLS REQUIRED
• Qty. (2) 86-9001 Radio removal tools
• Panel removal tool
E
CAUTION!
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
Table of Contents
All accessories, switches, climate controls panels, and
© COPYRIGHT 2017 METRA ELECTRONICS CORPORATION
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-9109B
Summary of Contents for Metra Electronics 99-9109B
- Page 1 ® Installation instructions for part 99-9109B Table of Contents Audi A3 2006-2013 (with NAV or Symphony radio) 99-9109B Dash Disassembly ..........2 Kit Assembly KIT FEATURES – ISO DIN radio provision with pocket ...... 3 • ISO DIN radio provision with pocket –...
-
Page 2: Dash Disassembly
® 99-9109B Dash Disassembly 1. Slowly insert the the 86-9001 radio removal tools into the radio using the tip shown. (Figure A) LOAD 2. When you feel each tool click, MENU remove and unplug the radio. A TONE panel removal may be needed to assist in the vremoval. -
Page 3: Kit Assembly
® 99-9109B Kit Assembly ISO DIN radio provision with pocket ISO DDIN radio provision 1. Attach the pocket to the radio 1. Attach the radio brackets to the brackets using the (4) #8 x 3/8” radio using the screws supplied Phillips screws provided. - Page 4 ® Installation instructions for part 99-9109B IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
