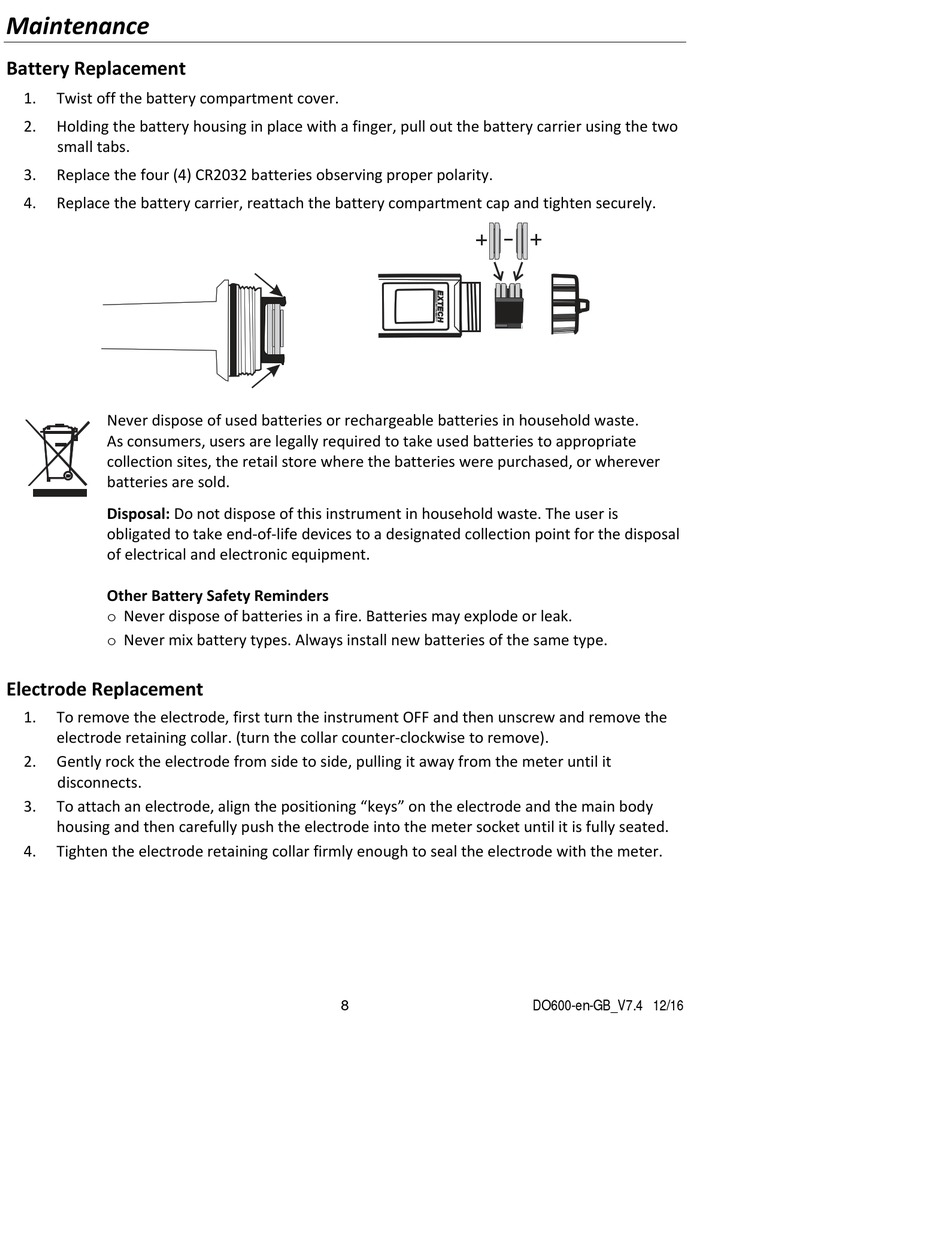

Maintenance

BatteryReplacement
1. Twistoffthebatterycompartmentcover.
2. Holdingthebatteryhousinginplacewithafinger,pulloutthebatterycarrierusingthetwo
smalltabs.
3. Replacethefour(4)CR2032batteriesobservingproperpolarity.
4. Replacethebatterycarrier,reattachthebatterycompartmentcapandtightensecurely.








Neverdisposeofusedbatteriesorrechargeablebatteriesinhouseholdwaste.
Asconsumers,usersarelegallyrequiredtotakeusedbatteriestoappropriate
collectionsites,theretailstorewherethebatterieswerepurchased,orwherever
batteriesaresold.
Disposal:Donotdisposeofthisinstrumentinhouseholdwaste.Theuseris
obligatedtotakeend‐of‐lifedevicestoadesignatedcollectionpointforthedisposal
ofelectricalandelectronicequipment.

OtherBatterySafetyReminders
o Neverdisposeofbatteriesinafire.Batteriesmayexplodeorleak.
o Nevermixbatterytypes.Alwaysinstallnewbatteriesofthesametype.
ElectrodeReplacement
1. Toremovetheelectrode,firstturntheinstrumentOFFandthenunscrewandremovethe
electroderetainingcollar.(turnthecollarcounter‐clockwisetoremove).
2. Gentlyrocktheelectrodefromsidetoside,pullingitawayfromthemeteruntilit
disconnects.
3. Toattachanelectrode,alignthepositioning"keys"ontheelectrodeandthemainbody
housingandthencarefullypushtheelectrodeintothemetersocketuntilitisfullyseated.
4. Tightentheelectroderetainingcollarfirmlyenoughtosealtheelectrodewiththemeter.
8 DO600-en-GB_V7.4 12/16
