Introduction
CongratulationsonyourpurchaseoftheExStik
whichsimultaneouslydisplaysdissolvedoxygenandtemperature.Unitsofmeasureare%
saturation,mg/lorppmfordissolvedoxygen,and°Cor°Ffortemperature.Advancedfeatures
includeDataHold,25‐pointmemory,autopoweroff,automatictemperaturecompensation,
salinityandaltitudecompensation.Thismeterisshippedfullytestedandcalibratedand,with
properuse,willprovideyearsofreliableservice.Pleasevisitourwebsite(www.extech.com)to
checkforthelatestversionofthisUserGuide,ProductUpdates,andCustomerSupport.

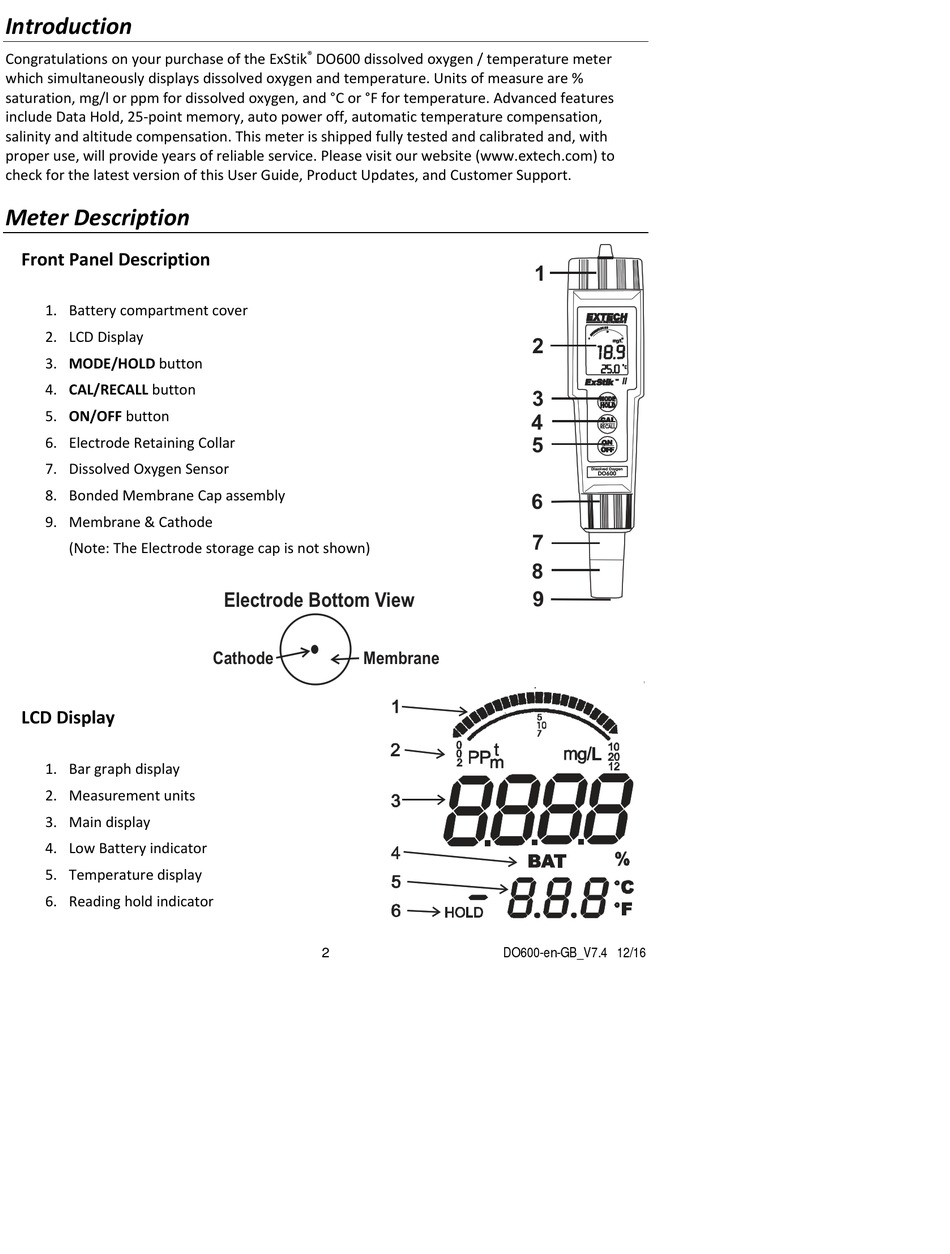

MeterDescription
FrontPanelDescription

1. Batterycompartmentcover
2. LCDDisplay
3. MODE/HOLDbutton
4. CAL/RECALLbutton
5. ON/OFFbutton
6. ElectrodeRetainingCollar
7. DissolvedOxygenSensor
8. BondedMembraneCapassembly
9. Membrane&Cathode
(Note:TheElectrodestoragecapisnotshown)






LCDDisplay

1. Bargraphdisplay
2. Measurementunits
3. Maindisplay
4. LowBatteryindicator
5. Temperaturedisplay
6. Readingholdindicator
®
DO600dissolvedoxygen/temperaturemeter
Electrode Bottom View
Cathode Membrane
2
1
2
II
3
4
RECALL
5
Dissolved Oxygen
DO600
6
7
8
9
DO600-en-GB_V7.4 12/16
